Javad JLink LTE User Manual page 9

How to...
...Setup JLink LTE to provide RTK data
received via NTRIP Client to Serial Port
The following are the steps of configuration of JLink
LTE:
1. Connect to JLink LTE via web interface as de-
scribed above.
2. Configure the Cellular (GSM ):
• In the Communication/GSM tab set the PIN
code and APN parameters (if necessary);

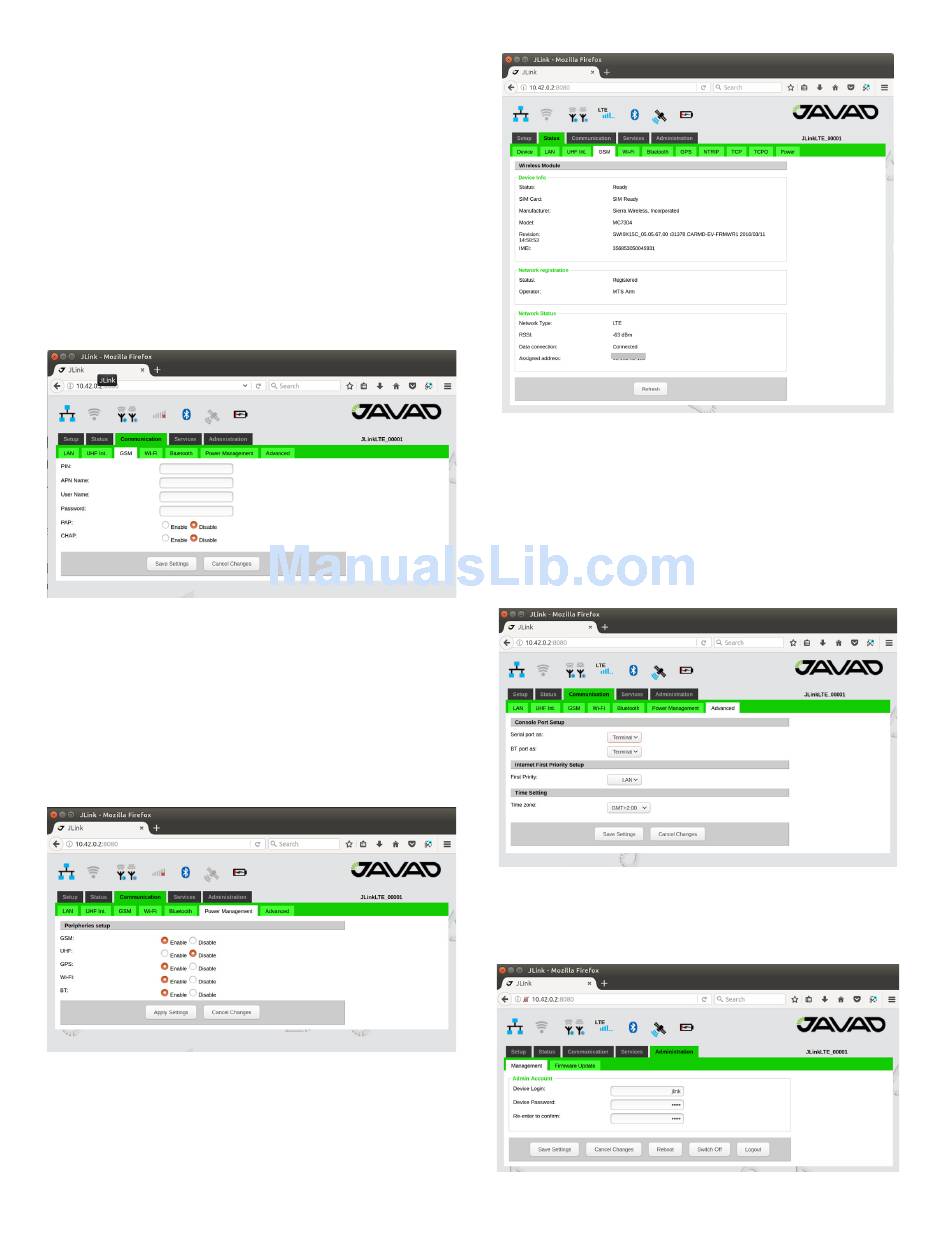

Figure 9. JLink LTE GSM configuration tab
• Use tweezers to install or remove micro SIM
card.
• Insert the SIM card to its slot. The first slot from
the green top cover is for micro SIM, the second
slot is for micro SD.
• In the Communication/Power Management tab
activate the GSM interface.
Figure 10. JLink LTE Power Management tab
Wait for registering in the network and Internet ac-
cess availability . Detailed connection status you can
check in Status/GSM tab.
www.javad.com
Figure 11. JLink LTE GSM Status tab
It is possible also to connect JLink LTE to Internet
via LAN or WiFi using any WiFi router, MiFi device or
even smart-phone configured in hot spot mode.
3. Setup Serial Port. In the Communication/Advanced
tab select "Serial port as" parameter as Terminal. Click
"Save Setting" button and wait until finish.
Figure 12. JLink LTE Advanced tab
4. Reboot device. In the Administration/Management
tab click "Reboot" button and wait until reboot.
Figure 13. JLink LTE Administration Management tab
