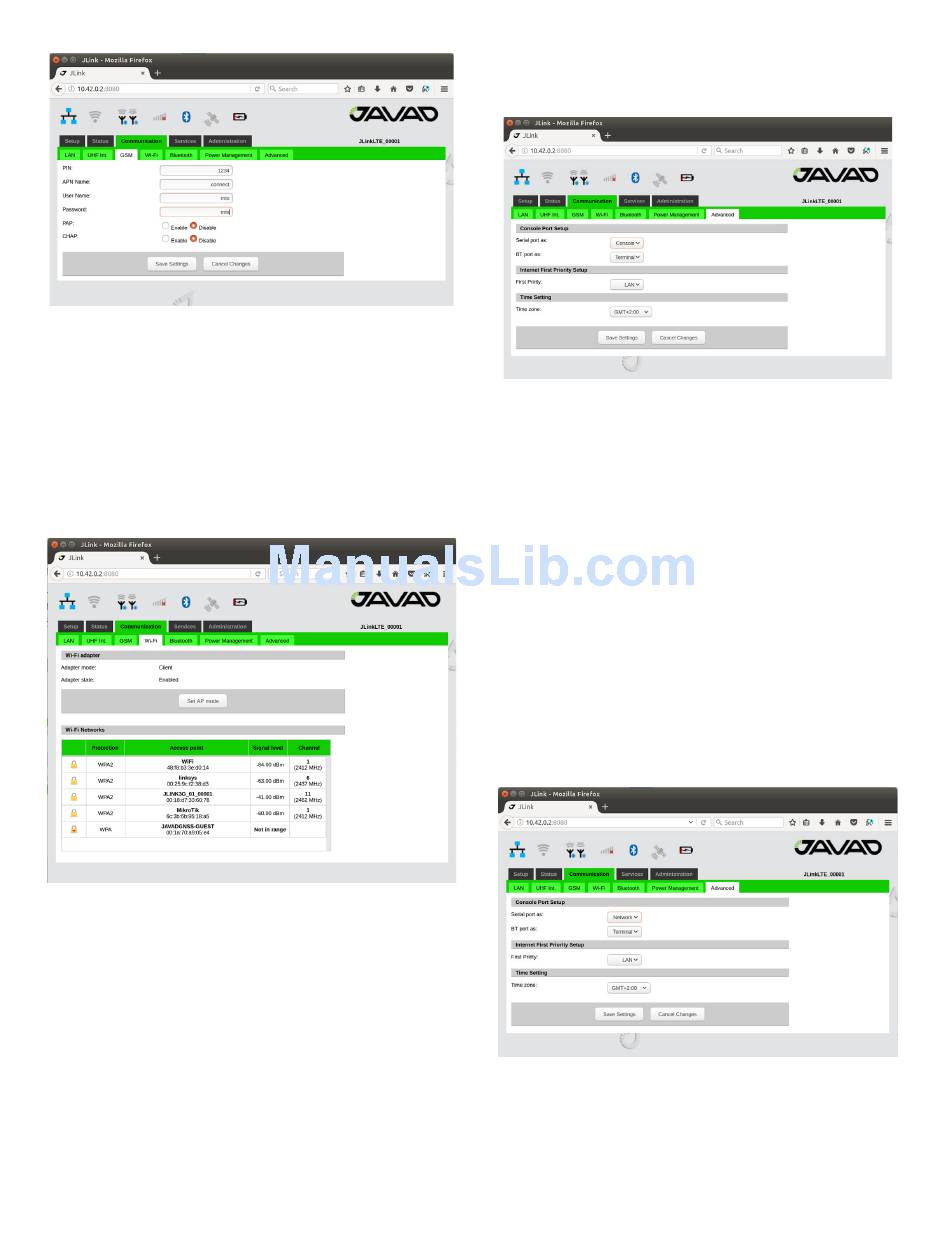

Javad JLink LTE User Manual page 8

Figure 5.
• WiFi client: In the Communication/WiFi it is
necessary to switch the interface to the client mode.
In the Communication/Power Managment tab turn
the WiFi interface on. Select the network you would
like to connect in the Communication/WiFi tab, en-
ter password to get access and wait for the connec-
tion see below. More detailed connection status you
can check in Status/WiFi tab.
Figure 6. WiFi client configuration tab
• Access to Serial port via Network: In the Com-
munication/Advanced tab it is necessary to select
Serial port as Console (see figure below) and reboot
deice from Administration/Management or do pow-
er cycle. After reboot the device is ready for con-
nection to serial port CLI interface with username
"jlink" password "jLTEXXXXX" where "XXXXX"
is serial number of device which is written in device
label. For connecting to JLink LTE serial port need-
ed to setup with following parameters:
• Baudrate 115200
• Parity none
8
GSM configuration tab
• Data Bits 8
• Stop Bits 1
• Handshake hardware
Figure 7.
• Access to Serial port via Network:
In the Communication/Advanced tab it is necessary
to select Serial port as Network (see figure below) and
reboot device from Administration/Management or do
power cycle.
After reboot device is ready for telnet connection to
serial port using "Ser2Net" as login and "jlinklte"
as password. For connecting to JLink LTE serial port
needed to setup with following parameters:
▪ Baudrate 115200
▪ Parity none
▪ Data Bits 8
▪ Stop Bits 1
▪ Handshake hardware
Figure 8.
Advanced configuration tab
Advanced configuration tab
