Description And Operation - Javad JLink LTE User Manual

Description and Operation

Getting Started
JLink LTE is a family of devices designed for or-
ganizing a local network between different devices
via WiFi, Ethernet, and Bluetooth, connecting to the
Internet using 4G cellular digital communication ser-
vices.

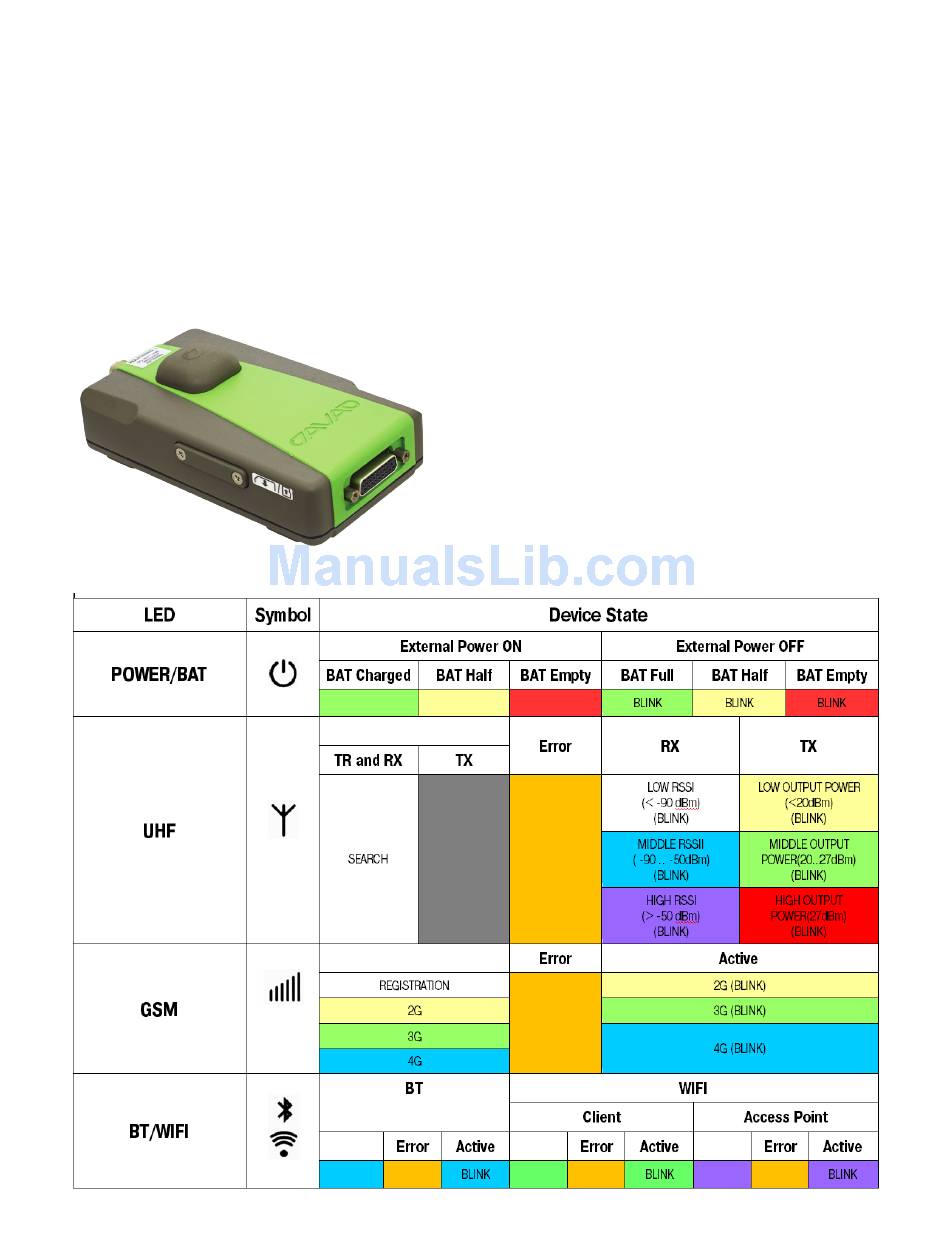

Figure 1.
6
JLink LTE
JLink LTE provides a robust solution linking the
field GNSS equipment to RTN, where no cell phone
cover is available. JLink LTE devices may contain 1
W either UHF (406 to 470 MHz) or VHF (138-174
MHz), or ISM license free USA band (902-928 MHz)
and European CEPT license free (868-870 MHz) radio
transceiver. Marine Radiobeacon receiver (283.5 to 325
kHz) can be built-in into JLink LTE device.
JLink LTE can be configured and supported using
web-interface through Internet, and this makes the set-
up mechanism simple and accessible from anywhere in
the world.
JLink LTE LED Functionality
The table below describes the LED indicators and
device state:
