Javad JLink LTE User Manual page 7

Installation
1. Connect Bluetooth and GSM antennas to JLink
LTE as shown on the picture below.
2. Connect JLink LTE to external power supply
(10...30 V).
3. Insert SIM card to the SIM card slot if you would
like to use GSM connection to connect to Internet.

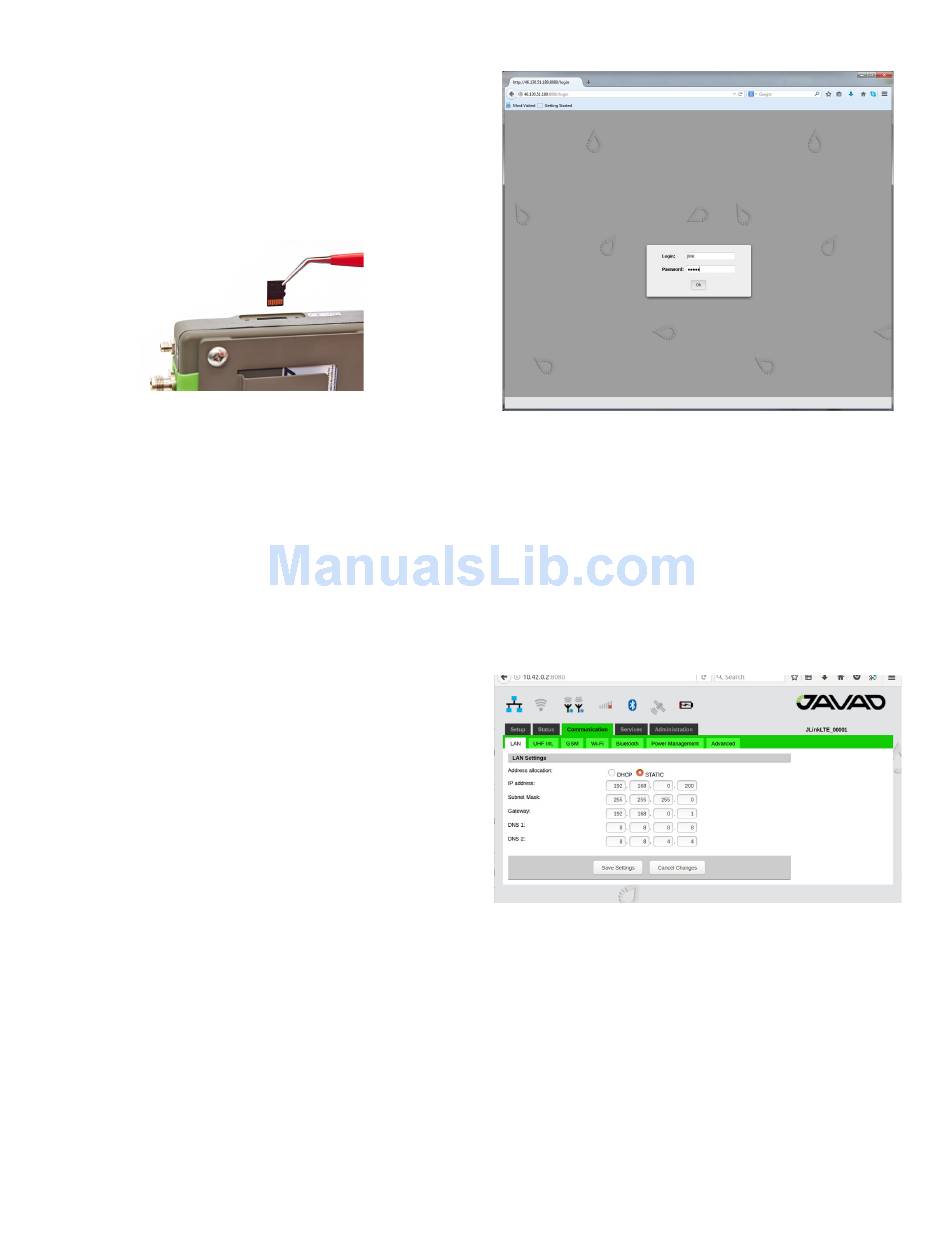

Figure 2.
4. Plug in LAN cable if you would like to use Ethernet
connection to connect to Internet.
5. Plug in COM PORT cable if you would like to use
CLI interface to communicate with device.
Setup and Configuration
1. Turn on power of JLink LTE.
2. Wait for complete loading. When it is complete,
Power LED will blink.
3. Connect to the device and configure it using
web-browser.
Connection can be established in one o the following
ways:
• via Bluetooth interface: the device (PC, hand-
held/pad) should be with Bluetooth interface with
PAN profile support. JLink LTE Bluetooth-interface
is in visibility mode, has the name "Jlink LTE"
and PIN code 0000. When connection is estab-
lished open the web-browser and enter the address
10.1.11.1:8080.
• via WiFi interface: The device (PC, handheld/
pad) should be with WiFi interface. JLink LTE
WiFi-interface has the name "Jlink
password "testtest". When connection is estab-
lished open the web-browser and enter the address
10.1.10.1:8080.
• via Ethernet: JLink LTE LAN static IP adress is
192.168.0.200 and network mask is 255.255.255.0.
On the PC connected to the same LAN, open the web
browser and enter the address 192.168.0.200:8080.
The dialog window appears with login/password re-
www.javad.com
SIM card installation
LTE" and
quest. Enter login and password (jlink/jlink).
Figure 3. Login and password entering
Thereafter the device is ready for setup and config-
uration.
4. Select the interface which will be used to connect
to Internet and configure it. The following interfaces
are available:
• Ethernet: Configure Ethernet interface in the
Communication/LAN tab. Set the network parame-
ters and reboot the device using Reboot button in the
Administration/Management tab see figure below.
Figure 4.
• GSM/LTE/4G: Configure this interface using
Communication/GSM tab. Set the APN parameters
(if necessary) and select the SIM-card slot. In the
Communication/Power Management tab activate
the interface and wait for registering in the network
and Internet access availability. More detailed con-
nection status you can check in Status/GSM tab see
below.
LAN configuration tab
7
