Javad JLink LTE User Manual page 11

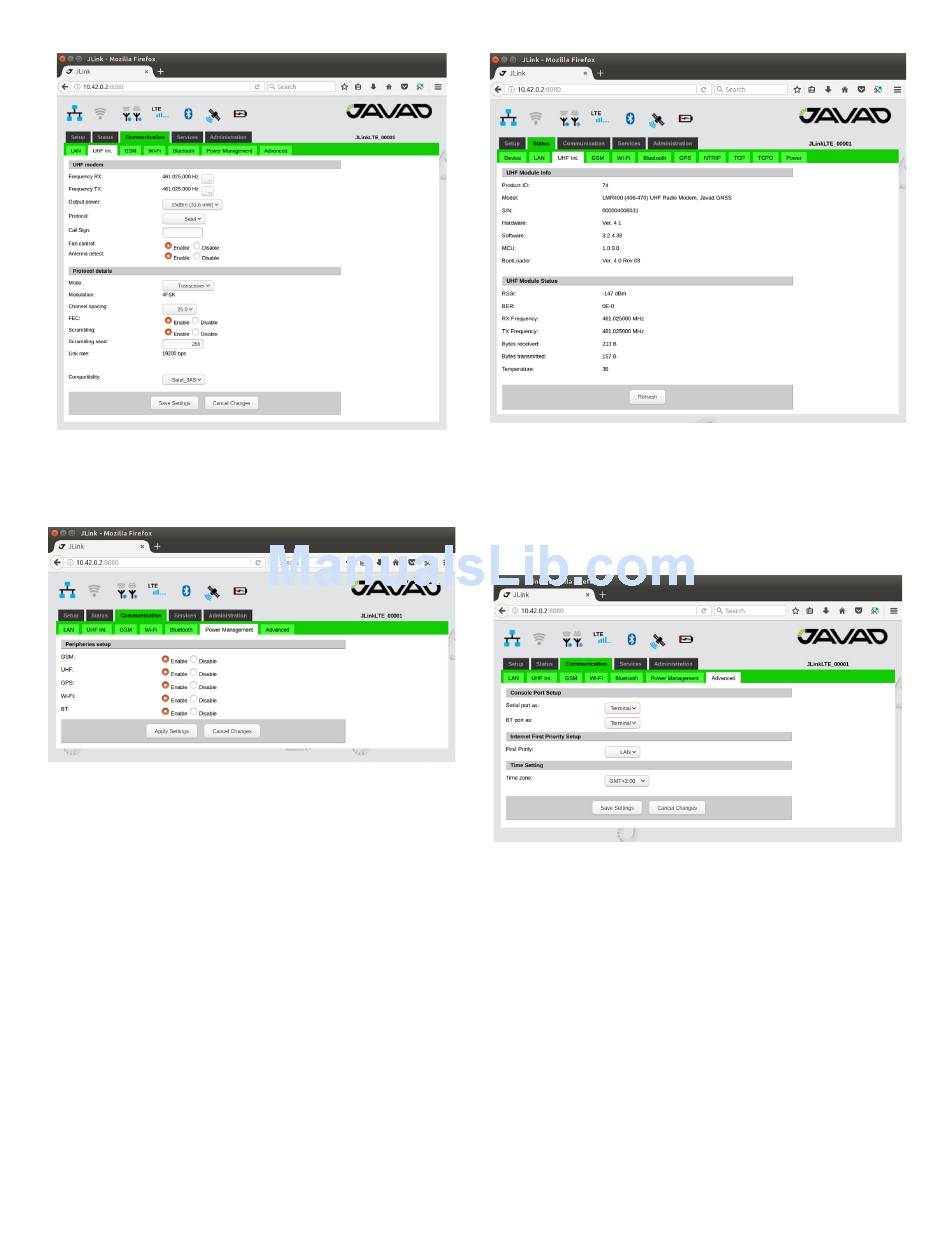

Figure 17. JLink LTE UHF parameters configuration tab
◦ In the Communication/Power Management tab ac-
tivate the UHF interface:
Figure 18. JLink LTE Power Management tab
◦ Detailed connection status you can check in Status/
UHF int. tab
www.javad.com
Figure 19. JLink LTE UHF Int. Status tab
3. Setup Serial Port
◦ In the Communication/Advanced tab select "Serial
port as" parameter as Terminal.
Click "Save Setting" button and wait until finish.
Figure 20. JLink LTE Advanced tab
4. Reboot device
◦ In the Administration/Management tab click
"Reboot" button and wait until reboot.
11
