Javad JLink LTE User Manual page 13

umph2 unit should be connected to JLink LTE
through
• WiFi interface and TRIUMPH-2's IP address
should be set 10.1.10.110 or 10.1.10.120. (the de-
fault gateway is 10.1.10.1).

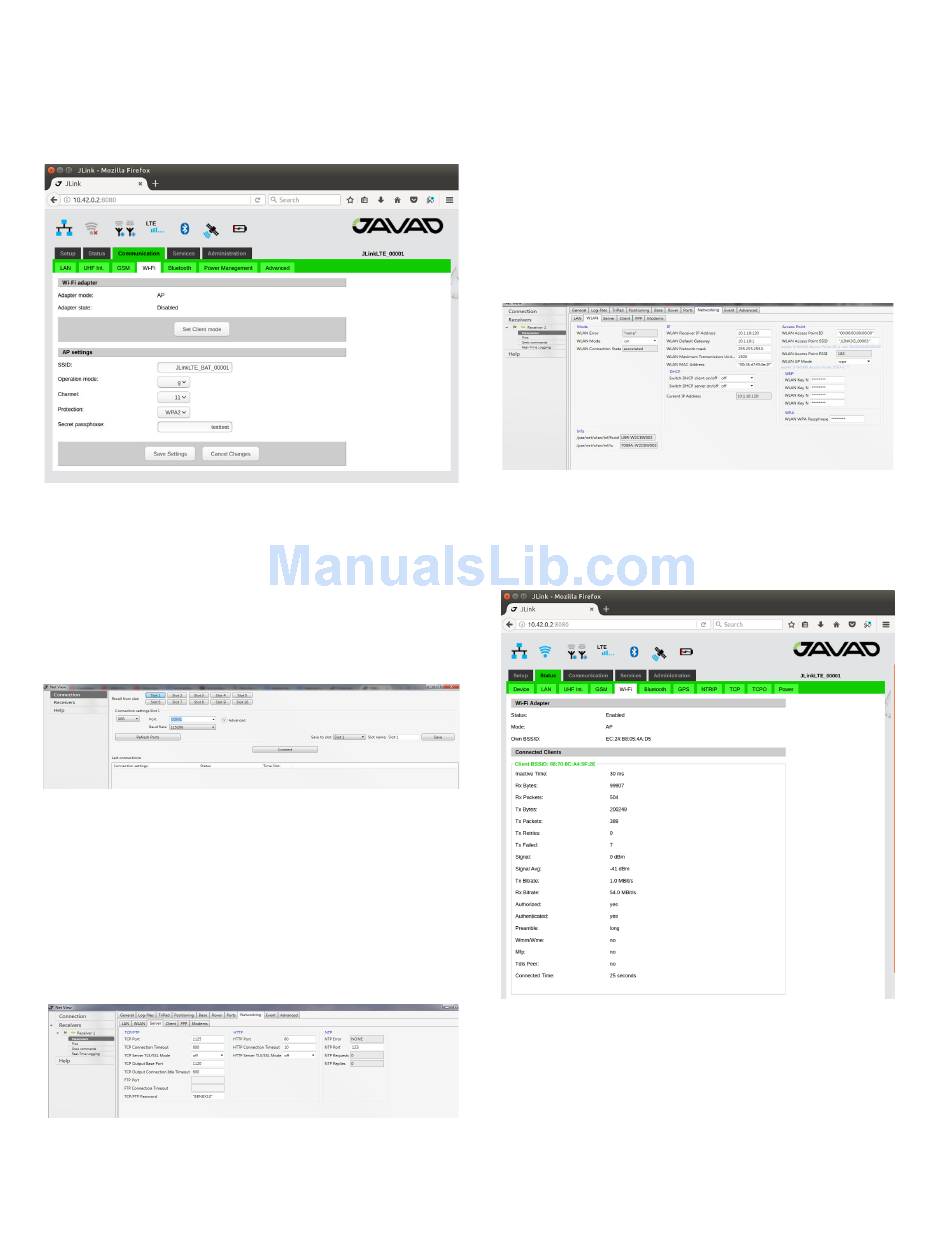

Figure 24. JLink LTE WiFi configuration tab
TRIUMPH-2 configuration steps are the following:
1. Connect TRIUMPH-2 to PC via USB or Bluetooth
interface and start NetView.
2. Click Connection, select the connection using
port, specify the COM port the receiver is connected to.
Click Connect to connect to the receiver.
Figure 25. NetView connection tab
3. Select the receiver from the list of the connected
receivers and click Parameters/Networking/Server , to
setup Service port.
• Set the TCP/FTP parameter: TCP Port (1125).
• Set the TCP/FTP parameter: TCP Output Base
Port (1120).
• Click Apply.
Figure 26. NetView Server tab
4. Select the receiver from the list of the connected
receivers and click Parameters/Networking/WLAN, to
www.javad.com
setup the WiFi connection.
• Set the following IP parameters: WLAN Receiver
IP Address(10.1.10.120), WLAN Default Gateway
(e.g, 10.1.10.1), and WLAN Network Mask (e.g,
255.255.255.0).
• Set the AccessPoint parameters: WLAN Access
Point ID (enter SSID of JLink LTE), WLAN AP
mode(wpa).
• Set the WPA parameter: WLAN WPA Passphrase
(enter passphrase of JLink LTE).
• Set the WLAN Mode to on Click Apply.
Figure 27. NetView WLAN configuration tab
After Restating the device you can check WiFi con-
nection on web interface Status/WiFi tab of web inter-
face of JLink LTE.
Figure 28. JLink LTE WiFi status tab
Now TRIUMPH-2 can provide services trough
Internet by 1120-1125 port.
