5. Setup Router. In the Setup/Router tab select fol-
lowing parameters "NTRIP Client" as Source and
"Serial port" as Destination. Click "Save Setting" but-
ton and wait until finish.

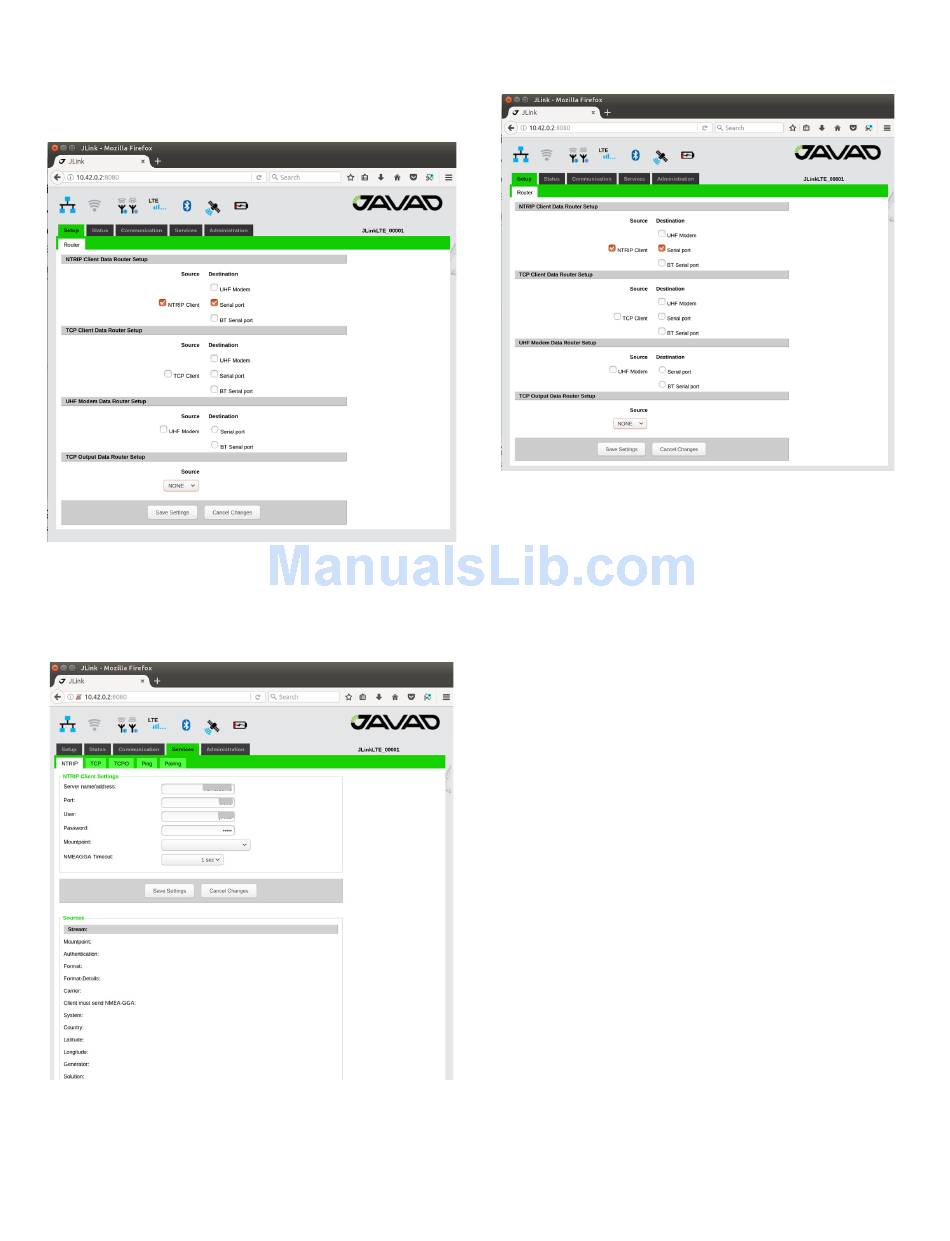

Figure 14. JLink LTE NTRIP Data Router tab
6. Setup NTRIP Client. In the Services/NTRIP tab set
following parameters: "Server name/address", "Port",
"User" , "Password" .
Figure 15. JLink LTE NTRIP configuration tab
• Click "Save Setting" button and wait until finish.
• Click '"Update" button and select "Mountpoint" .
• Click "Save Setting" button and wait until finish.
10
Detailed connection status you can check in Status/
NTRIP tab
:
Figure 16. JLink LTE Status NTRIP tab
7. Connect Serial Port. se any application to connect
serial port of JLink LTE with following parameters:
▪ Baudrate 115200
▪ Parity none
▪ Data Bits 8
▪ Stop Bits 1
▪ Handshake hardware
...Setup JLink LTE to provide RTK data
received via UHF channel (in Satel mode) to
Serial Port
The following are the steps of configuration of JLink
LTE:
1. Connect to JLink LTE via web interface as de-
scribed above.
2. UHF configuration in Satel mode:
◦ In the Communication/UHF Int. tab:
• select operating frequency or add new frequen-
cy to the list
• select Protocol type Satel
• select channel bandwidth (spacing) either 25.0
or, 20.0, or 12.5 kHz
• verify FEC (Forward Error Correction) state is
correct
