Chapter 3: Getting Started with the Base Targeted Reference Design
X-Ref Target - Figure 3-9
Exercise different options by entering the use case number displayed in
Enter your choice: on the terminal.
Table 3-2: Zynq-7000 AP SoC Base TRD Video Demonstration Use Cases
Use Case
1
2
3
Additional ZVIK Options
4
5
6
Video source control modes are explained as follows:
• TPG interference
The input video is generated by the TPG IP implemented in the PL.
°
• External video (available with the optional ZVIK FMC module)
The input video is supplied by an external video source and is connected through
°
the FMC-IMAGEON card.
40

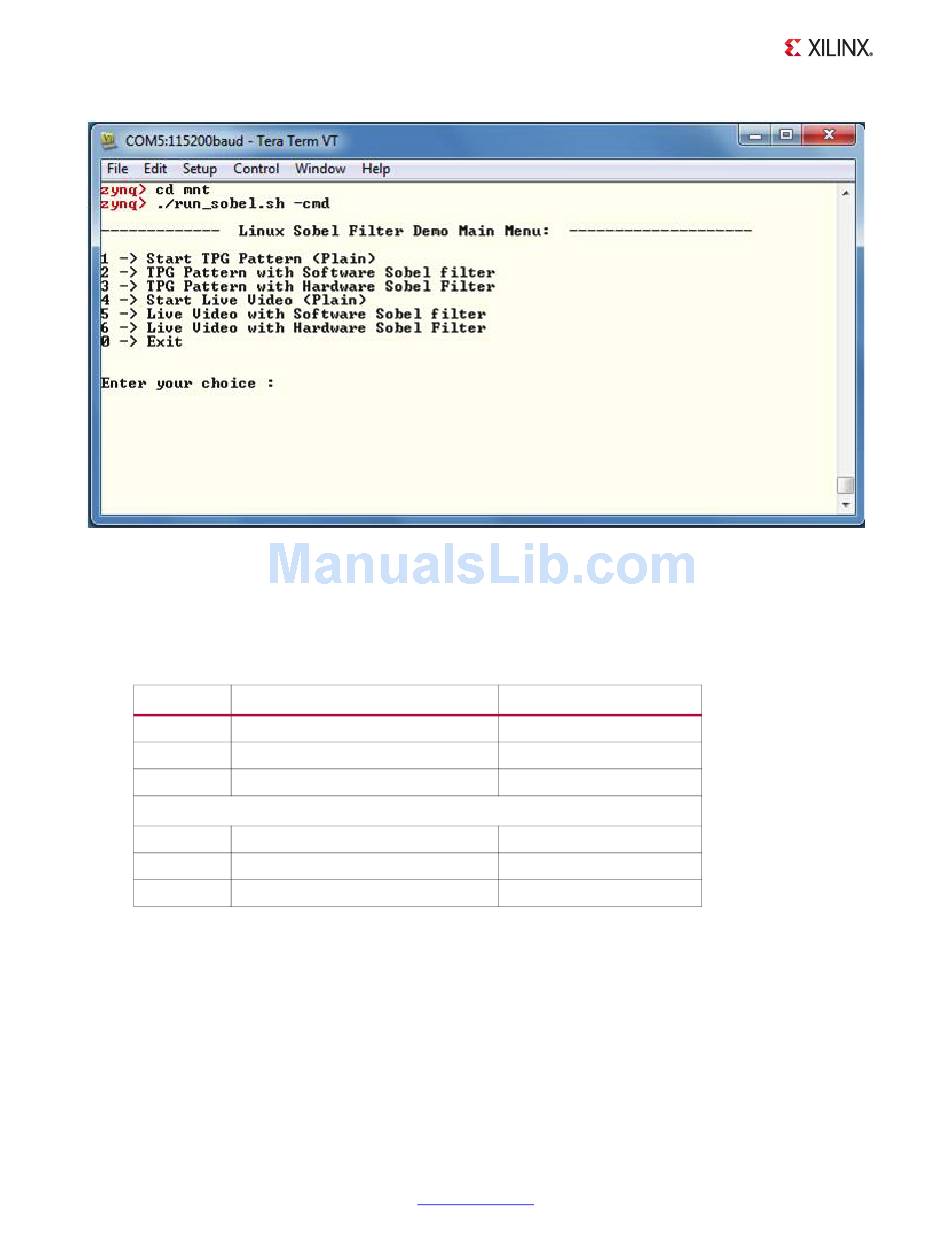

Figure 3-9: Command Line Based UI Menu
Video Source Control
TPG interference
TPG interference
TPG interference
External video
External video
External video
www.xilinx.com
Sobel Filter Control
Sobel OFF
Sobel - SW
Sobel - HW
Sobel OFF
Sobel - SW
Sobel - HW
ZC702 and ZVIK Getting Started Guide
UG926 (v3.0.1) February 12, 2013
UG926_c3_09_111012
against
Table 3-2
