Bookmark Cameras
Bookmark Cameras
Bookmark Cameras is used for define IP cameras, which you want monitor and control by application iHC.
HTTP and RTSP port are filled only if you have an IP camera configured to access from outside local network. If the
camera remotely connect via HTTP port, so you get to the web interface and you can fully control the camera.
If via RTSP, then you will get only a stream cameras. More about setting and ports see. instruction manual
for the camera.More about setting and ports see. manual for the camera.
If you do not fill HTTP or RTSP ports remain in default, HTTP port 80, RTSP port 554

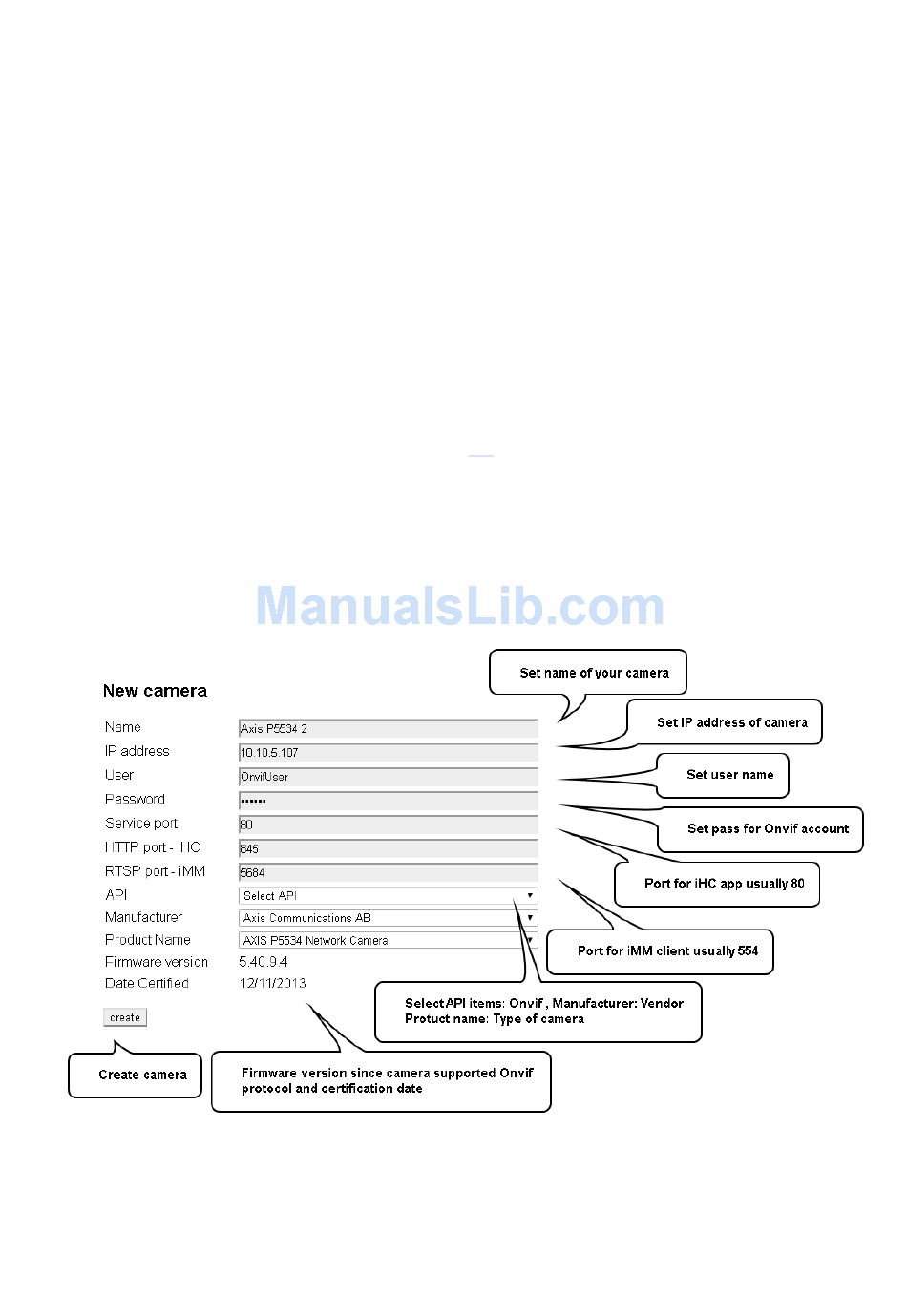

New camera
Supported cameras are:
iNELS cam
AXIS protokolu VAPIX2 od verze firmwaru kamery 4.0.X.X a VAPIX3 od firmwaru 5.0.X.X
Kamery with Onvif protocol profile S. s certifikací Onvif
Example integration cam Axis supported Onvif:
Connect the camera according to camera manual and create a user for ONVIF protocol might be different
according to manufacturer.Setup a profile video stream: for applications iHC to mjpg/jpeg to second stream rtsp
for Connection server. If camera supported video stream only over rtsp:// protocol set-up codec to MPEG4 and
HTTP port - iHC to 554.
