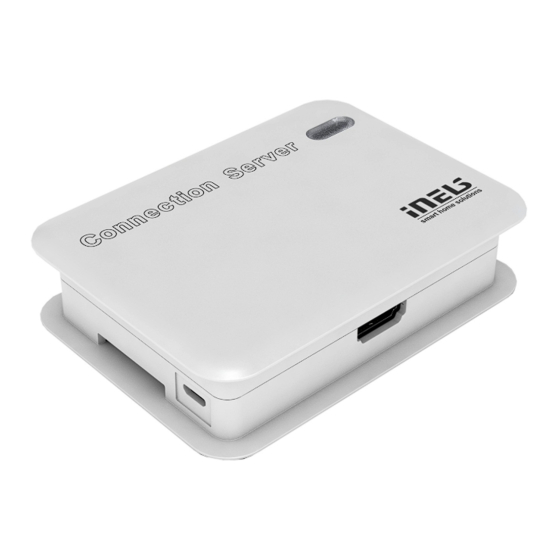

Connection Server Installation Manual
Version 02‐ 039/2011 Rev.:091013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connection server and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iNels Connection server

Summary of Contents for iNels Connection server

  • Page 1 Connection Server Installation Manual Version 02‐ 039/2011 Rev.:091013...

  • Page 2: Table Of Contents

    Basic settings ..............................4  1.2.1.  Change of password ..........................4  1.2.2.  System restart and shutdown ........................4  1.2.3.  Setting static Connection Server IP address ................... 5  2.  Configuration in iMM Control Center ........................6  2.1.  iMM CC setting ............................6  2.1.1. ...

  • Page 3: Getting Started

    Some services do not open, and display FAILD in red; in majority of cases it is not a problem; and has no influence whatsoever on the run of Connection Server. f) When start of services is completed, only one line requiring login name will appear on the screen.

  • Page 4: Basic Settings

    System restart and shutdown If you already know the IP address of Connection Server, the best way to restart or switch off is via iMMCC or remote access. By means of SSH e.g. in Putty software (free downloadable on internet).

  • Page 5: Setting Static Connection Server Ip Address

    Button for complete shutdown Restart button In the System bookmark, you can reset parameters of network setting or restart, or use the “Shutdown” button to turn off Connection Server completely. IP address is usually set static to avoid its change in time.  ...

  • Page 6: Configuration In Imm Control Center

    Within diagnostics, the state of individual virtual servers can be revealed (button “Status”), suspend their run (button "Stop"), or turn them on (button "Start"). Servers are turned on automatically when Connection Server starts up.  ...

  • Page 7: Bookmark Configuration

    On this bookmark you can set IP address of central unit, IP address of server; in this case local address of Connection Server by entering 127.0.0.1! There you can also upload export.pub exported from central unit  ...

  • Page 8: Bookmark A/C

    Connection Server Installation Manual 2.1.3. Bookmark A/C Serves for definition of air conditioning units and their control by means of iHC application. Supported communication card for air conditioning units is LG je PI485. See chapter Wiring of Air Conditioning Units for connection.

  • Page 9: Bookmark Rooms

    Connection Server Installation Manual 2.1.4. Bookmark Rooms Serves for configuration of file rooms.cfg which uploads iHC applications. Read more in the manual for iHC application. Name of new room Control of room will be protected by password Editing items in room...

  • Page 10: Bookmark Cameras

    Connection Server Installation Manual 2.1.5. Bookmark Cameras Serves for defining IP cameras you want to check by means of Application. HTTP and RTSP ports are only entered if your IP cameras are configured for access from external network. All cameras by Axis manufacturer with V2 and V3 protocol are supported, further we support the below...

  • Page 11: Calling Between Individual Devices And Sound

    Connection Server Installation Manual 2.1.6. Calling between individual devices and sound Set the following in the bookmark Intercoms: name, SIP name, password and videostream of device that you select beforehand for the device to call (sound, iMM client, phone), and add using the Add key.

  • Page 12: Phone Settings

    Enter the same data for the signup name as on the server web interface (e.g. SAMSUNGS3) Also the password must be identical with the one entered on the server. Finally enter the IP address of Connection Server where you completed the settings. In the application click on the intercom icon and then on „Add contact“.
  • Page 13 Connection Server Installation Manual Sound settings: Naming the sound in the SIP name same as the one on the server Sound IP Login name web address sound interface Password for web sound interface     Verze 02‐ 039/2011 Rev.:091013                                                                                Stránka 13 z 31...

  • Page 14: Ip Sound

    Connection Server Installation Manual 2.1.8. IP sound For IP sound 2N® Helios a source DC 12V/2A should be used. See the manufacturer's user manual for more detailed information on IP sound wiring. Assignment of IP address from DHCP server is set on the new IP sound.

  • Page 15: Bookmark Energy

    Energy is recounted based on the amount of impulses that provide outputs from meters (gas-meters, electrometers, water-meters). Impulses are further processed in an optional input unit of system iNELS (IM2-140M, IM2-20/40/80B) in form of a counter. This value is by means of export.pub transferred to Connection Server where variable is in iMMCC on bookmark Energy assigned to Watter/Gas/Electrical.
  • Page 16 Connection Server Installation Manual 8. Once the file export-pub is created and uploaded to iMM server, in bookmark Energy you can assign in the counter value line (electricity_VALUE). It must be VALUE in the line. Connection of energy meter Energy meter connects by means of a binary output unit. Output from supported energy meter is distinguished to + a -, that’s why polarity has to be maintained by bringing –...
  • Page 17 Connection Server Installation Manual Creation of action “Counter incrementing": User action selection Select Increment counter Select uploading of required energy counter Action assignment to binary input where output from measuring instrument is connected. Add action Energy upload Input of binary input unit where...
  • Page 18 Connection Server Installation Manual Assignment of counter value in iMM Control Center For hot water consumption For cold water consumption measurement measurement For gas consumption measurement Selection of counters from file export.pub For electricity consumption measurement (for up to 5...

  • Page 19: Bookmark Audit

    Connection Server Installation Manual 2.1.10. Bookmark Audit Bookmark Audit serves for displaying and uploading LOG of events for diagnostic purposes. When configuration in iMM CC is finished, restart Connection Server.     Verze 02‐ 039/2011 Rev.:091013                                                                                Stránka 19 z 31...

  • Page 20: Heating

    Connection Server Installation Manual 2.2. Heating Iin iHC application you can switch between individual heating modes within given temperature program (Minimum, Inhibition, Normal, Comfort, Auto). If you wish to control individual heating modes, you have to enable export of control and setting of heating program in IDM software.

  • Page 21: Connection Of Miele Household Appliances

    Connection Server Installation Manual 2.3. Connection of Miele household appliances To connect, you need to have connected Gate-wayXGW 2000 in the network which receives information from Miele device on PowerLine, and sends it on LAN network to iMM server and iMM clients.
  • Page 22 Connection Server Installation Manual Naming of appliances Room name Basic Miele wiring     Verze 02‐ 039/2011 Rev.:091013                                                                                Stránka 22 z 31...

  • Page 23: Supplements

    3. Supplements 3.1. Export of configuration file to iMM In the iNELS Design Manager (iDM) environment in the window “General Settings” select by the picture. Export will be performed when the project is saved in the central unit! Two files Export.exp and Export.pub will be created in selected folder; the Export.pub is important for upload in iMM Control Centre.

  • Page 24: Third Parties' Devices

    Connection Server Installation Manual 3.2. Third parties' devices 3.2.1. Supported Miele appliances Washing machines W 5967 WPS AutoDos W 5000 WPS Supertronic W 2859i WPM Integrated steam ovens DG 5080 DGC 5080 XL DGC 5085 XL Glass ceramic cooking hotplates...
  • Page 25 Connection Server Installation Manual Integrated baking ovens H 5681 B H 5681 BP H 5681 BL/R H 5681 BPL/R H 5981 BP H 5081 B H 5081 BP H 5080 B Induction cooktops KM 5956 KM 6314 KM 6315 KM 6317...

  • Page 26: Air Conditioning Unit Coolmaster

    Connection Server Installation Manual 3.2.2. Air conditioning unit CoolMaster CoolMaster There are 8 different versions for individual air conditioning makers • CoolMaster Daikin 1000D • CoolMaster Sanyo 2000S • CoolMaster Toshiba3000T • CoolMaster Mitsubishi Electric 4000M • CoolMaster LG 6000L •...
  • Page 27 Connection Server Installation Manual Setting the RS232/ETH converter     Verze 02‐ 039/2011 Rev.:091013                                                                                Stránka 27 z 31...
  • Page 28 Connection Server Installation Manual How to set Daikin central address Press and hold down for 5 seconds the TEST button Setting mode 00 shows in the middle, and GROUP and the number on the left. (GROUP should flash; if not press the on/off key;...

  • Page 29: Connection Of Air Conditioning Units

    Indirect connection means utilization of communication unit CoolMaster which can communicate with different types and makers of air conditioning units (http://www.inels.cz/media/PDF- export/download/Coolmaster_compatibility.pdf). CoolMaster is then controlled from iMM.
  • Page 30 Connection Server Installation Manual 2. Set central address on air conditioning unit using a remote control (see the air conditioning unit user manual). Example:  RESET – hold down  MODE – hold down  Release RESET  When 00 displays, release MODE ...
  • Page 31 Connection Server Installation Manual     Verze 02‐ 039/2011 Rev.:091013                                                                                Stránka 31 z 31...
