Bookmark HA-BUS
Bookmark HA-BUS
In bookmark HA-BUS we can used for interconnection iNELS3 BUS and decentralized control system
KNX/EIB, which allows control from iHC app.
Second function to add more iNELS3 central unit.
Requirements for connect with KNX/EIB: Central unit iNELS or more

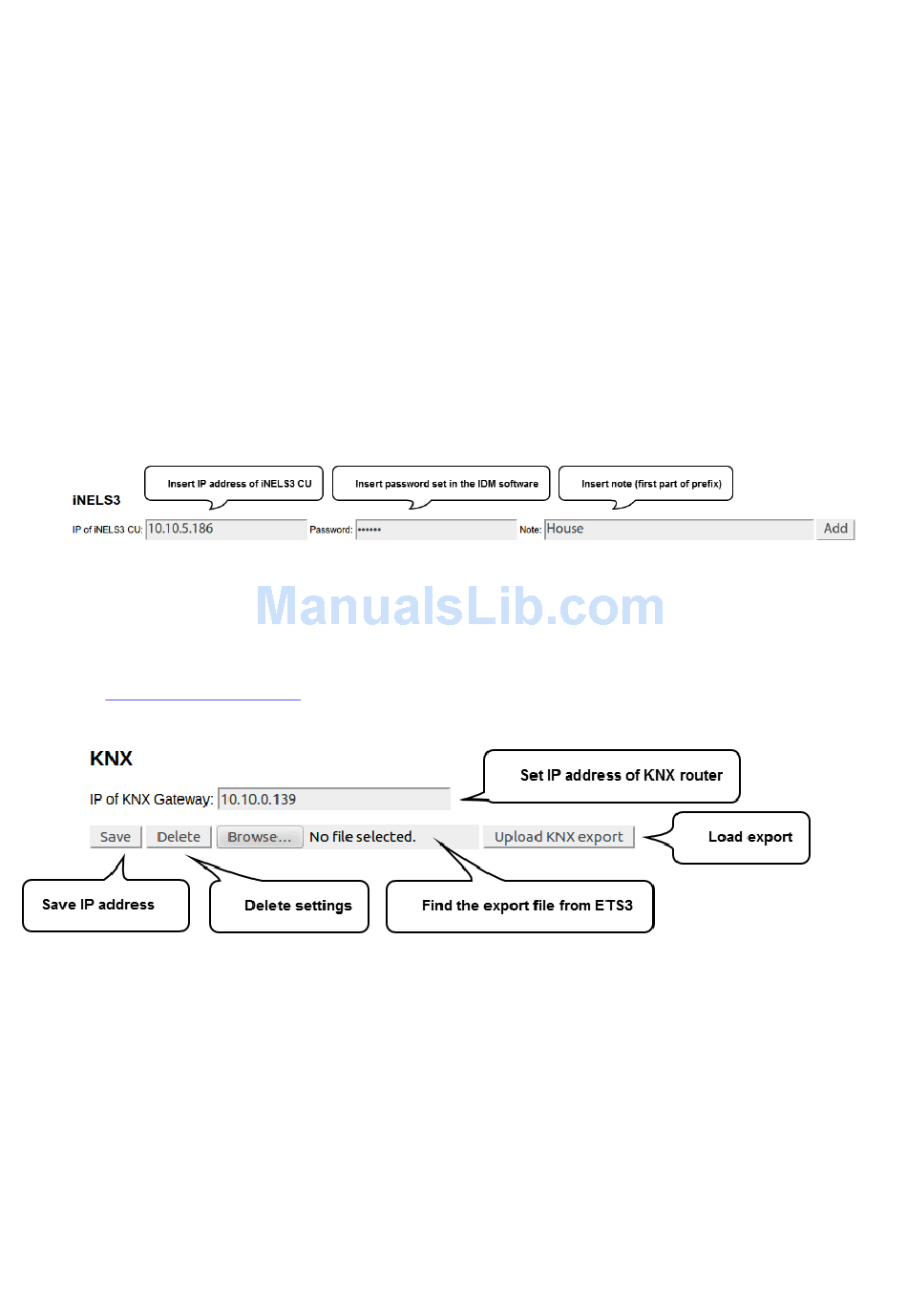

Example connection with iNELS3 CU:
First, enter the IP address of the central unit iNELS3 next fill password (optional) and note to finish press down button
Add. After saving the settings will download export from central unit and elements will be added prefix "inels3" last
letter (A-H) identify rank.
Fill IP address KNX router and Save button. After save settings was performed put export file group address
(see.
KNX export group
the excerpt elements KNX, If yes you go to the tab Rooms and put in a selected room features KNX.
Router KNX
Export group address from program ETS3 - 5
address) and load export to system. Now you can check bookmark Configuration whether
