Bookmark Configuration
In bookmark Configuration is main settings impotrant for propertly function device Connection server.
Machine ID and Licence key are preset in factory default.
IP address format:
If central unit is behind the NAT or in the other network and routers is possible use port forwarding. You can set port
forwarded (on router) to comunication port central unit (CU2 port 61682 ,CU3 port 9999).
Version CU
Format
CU2
[IPADDRESS]:[COMUNICATION_PORT]
CU3
[IPADDRESS]:[HTTP_PORT]:[COMUNICATION_PORT]
Communication port - Elkonet for iMM server, Connection server, App iHC
HTTP port
ASCI port
Password

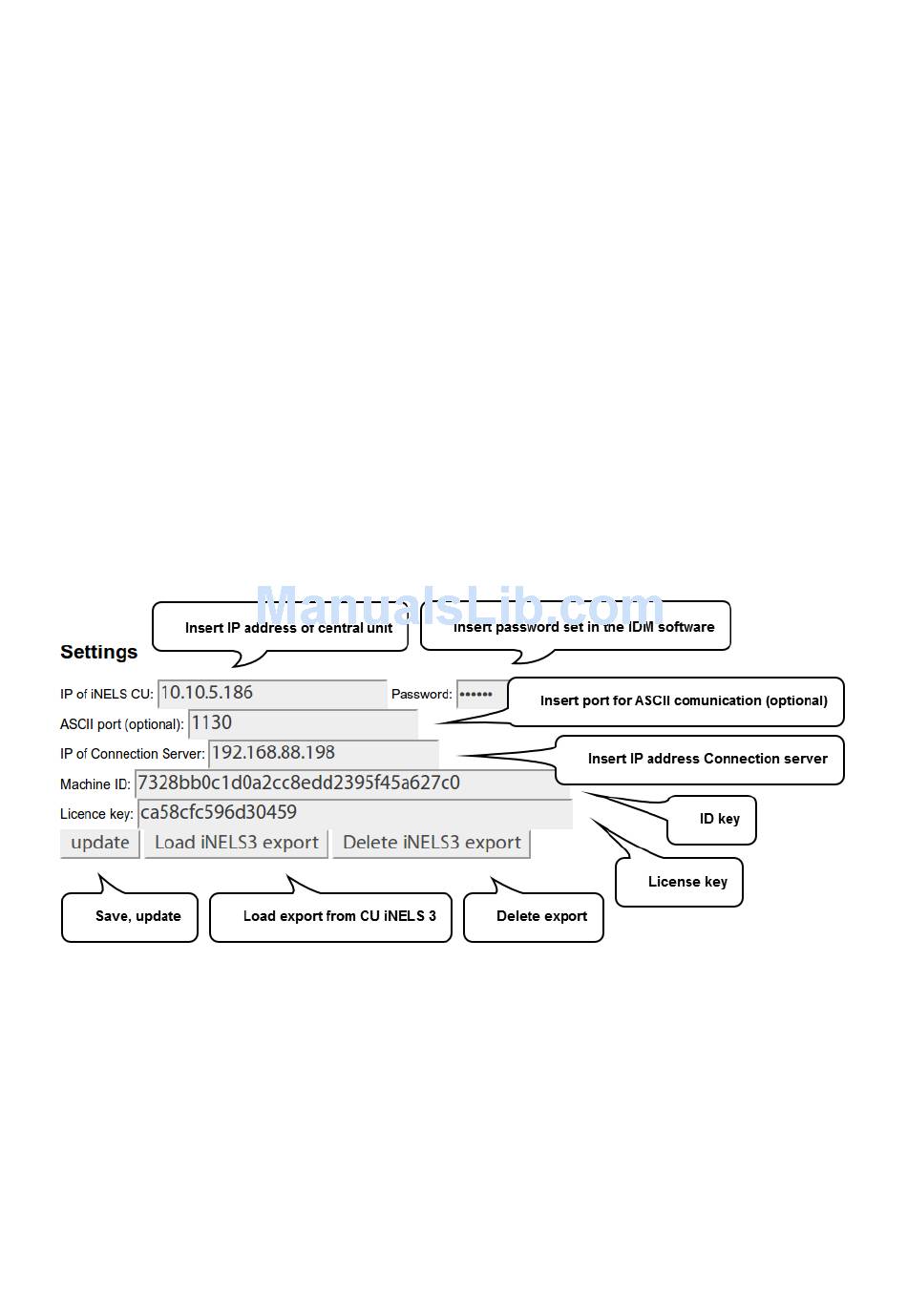

Example setup menu settings:
Bookmark Configuration
- is webserver CU3 with save file export.imm usually http://IPADDRESS/immfiles/export.imm
- port for comunication CU3 using third-party protocol (telnet) for proper function you must
set first port in IDM software (optional)
- password for acces and control central unit set in IDM software (optional)
Example:
10.5.15.12:8454
10.5.15.12:8080:4562
