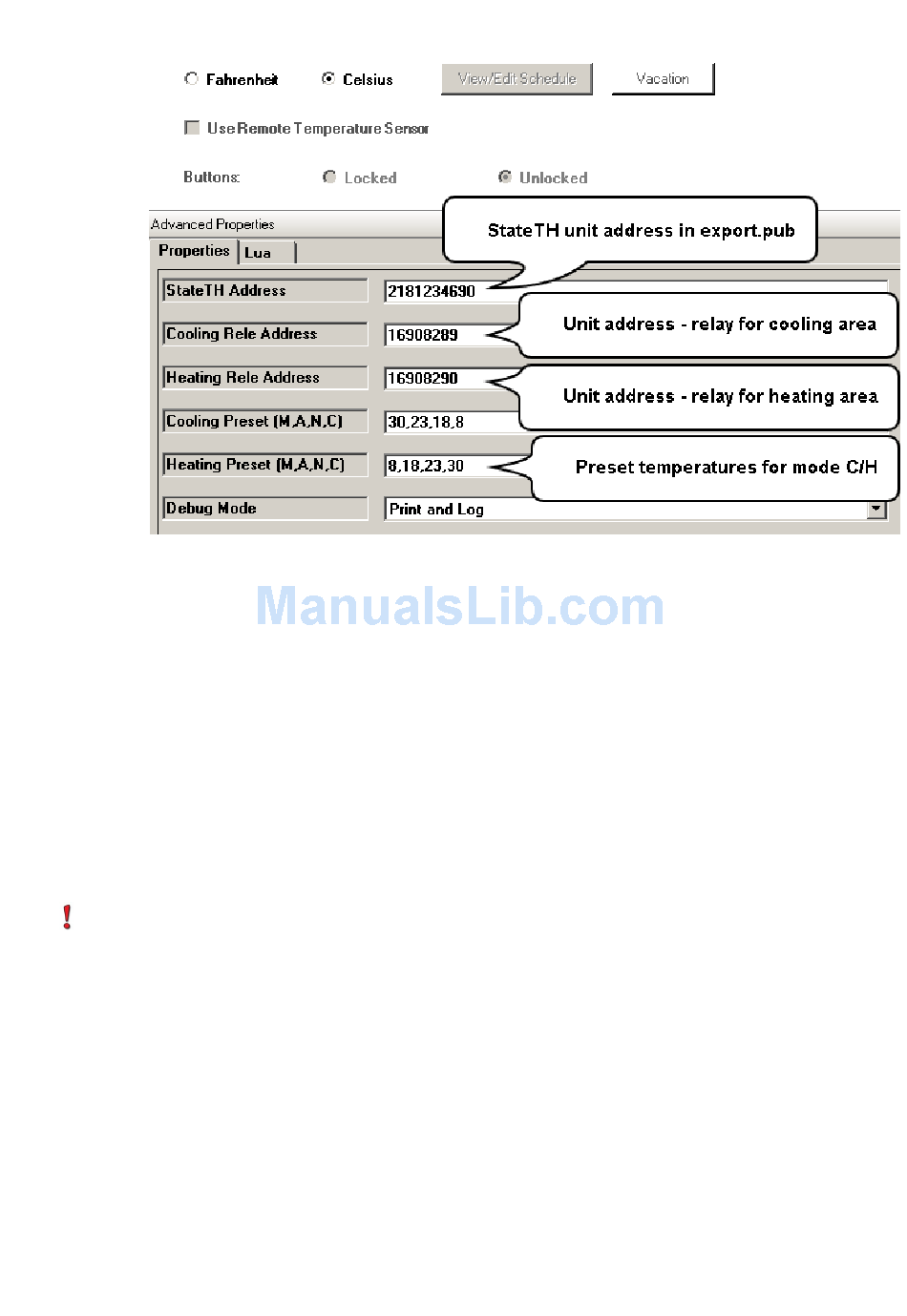

Add to project iNELS3_Thermostat where change device name and continue in bookmark Properties:
First, select the unit address HEATCOOLAREA stateTH from the list in bookmark Configuration in IMMCC
NameHEATCOOLAREA_StateTH 2181234690 Y B REAL PUB_INOUT
...
after that find address Cooling relay and Heating relay. If we only have a separate cooling circuit
Or or heating. We will add the missing item to the system bit that we create only for this purpose in program IDM.
Next, we set the preset minimum temperature, attenuation, normal, comfort for the heating and cooling area separated
Commands "," if we only have a separate circuit, we will add to the missing area the opposite value according picture above.
Debug mode, it is an optional parameter, if you set the Print and log can verify the tab lua changeing states.
After setting up in software Composer pro reboot C4 director.
Thermostat you can change manual mode (attenuation, minimum, normal, comfor) in default only to the next
Note:
timestamp. Manual temperature set point in the application is not yet supported.
