KNX export group address
KNX export group address

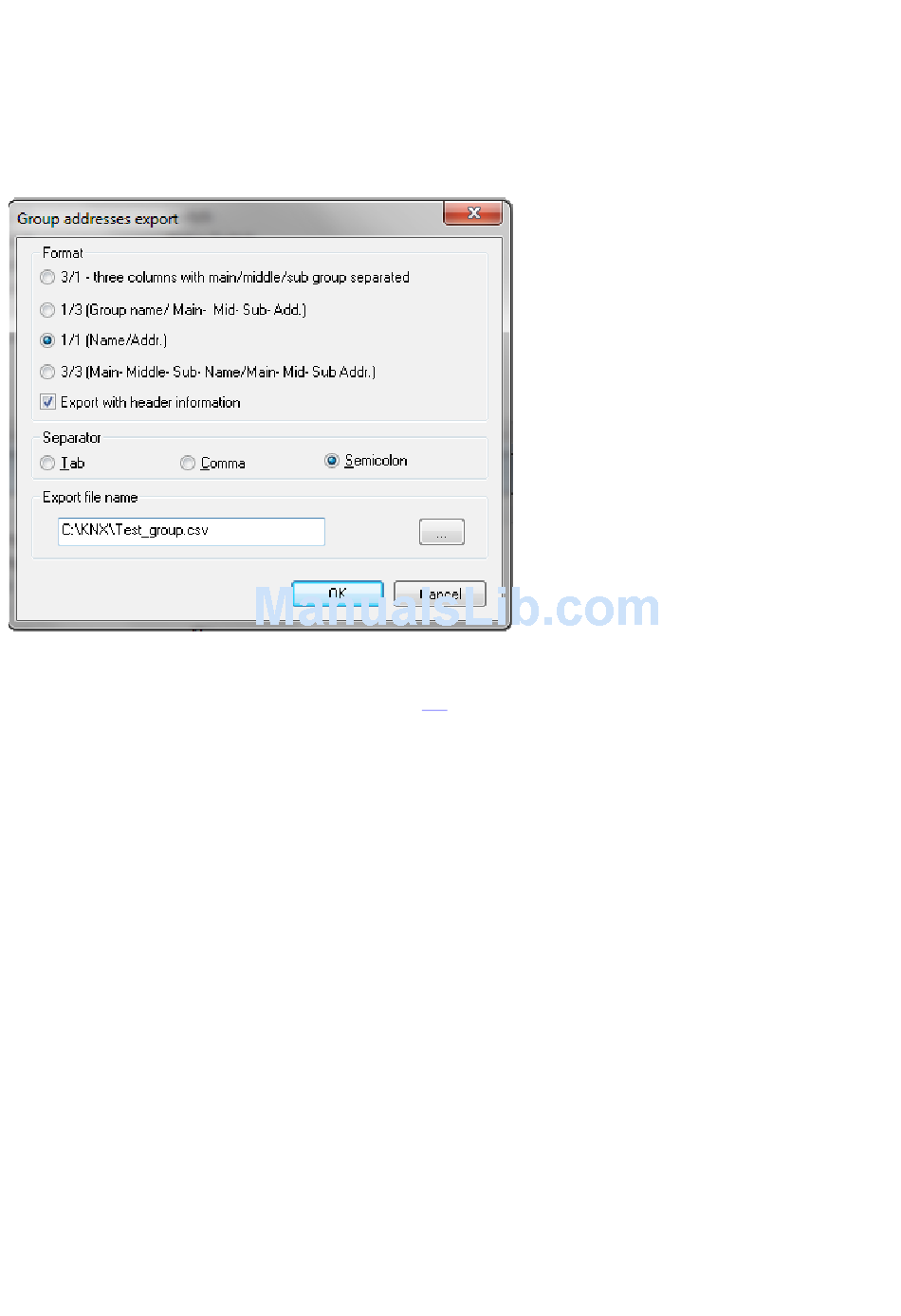

Export group addresses to format: 1/1 (Name/Add.) separate semicolon (;) the ETS 3 or higher.
Example export group addresses from ETS:
Before inserting the export it need to be more adapted behind the semicolon refill data type according element
values (True, False, 0-255, 0-100) see. KNX DPT
Example of data in a file supplemented Test_group.cvs:
"Group name";"Address"
Dimming;0/-/-
New Middle Group;0/0/-
Dim A;0/0/1;5
Dim B;0/0/2;5
Switching;1/-/-
New Middle Group;1/0/-
D;1/0/0;1
switch A;1/0/1;1
switch BCD;1/0/2;1
Shutters;2/-/-
New Middle Group;2/0/-
Shutters1;2/0/1
Shutters2;2/0/2
Sensors;3/-/-
New Middle Group;3/0/-
Temperature;3/0/0;9
A switch in example; 1/0/1; 1 has value as shown in Table 1 behind a semicon (True, False) means that a switch.
Data type Data
link
Type Value
