Settings

In the section Settings is main settings for setup Connection server whitch are IP address Central unit,
server, password and ASCII port. Machine ID and Licence key are preset in factory default.
IP address format:
If central unit is behind the NAT or in the other network and routers is possible use port forwarding. You can set
port forwarded (on router) to comunication port central unit (CU2 port 61682 ,CU3 port 9999).
Version CU Format
CU2 [IPADDRESS]:[COMUNICATION_PORT]
CU3 [IPADDRESS]:[HTTP_PORT]:[COMUNICATION_PORT]
Communication port - Elkonet for iMM server, Connection server, App iHC
HTTP port
ASCI port
Password

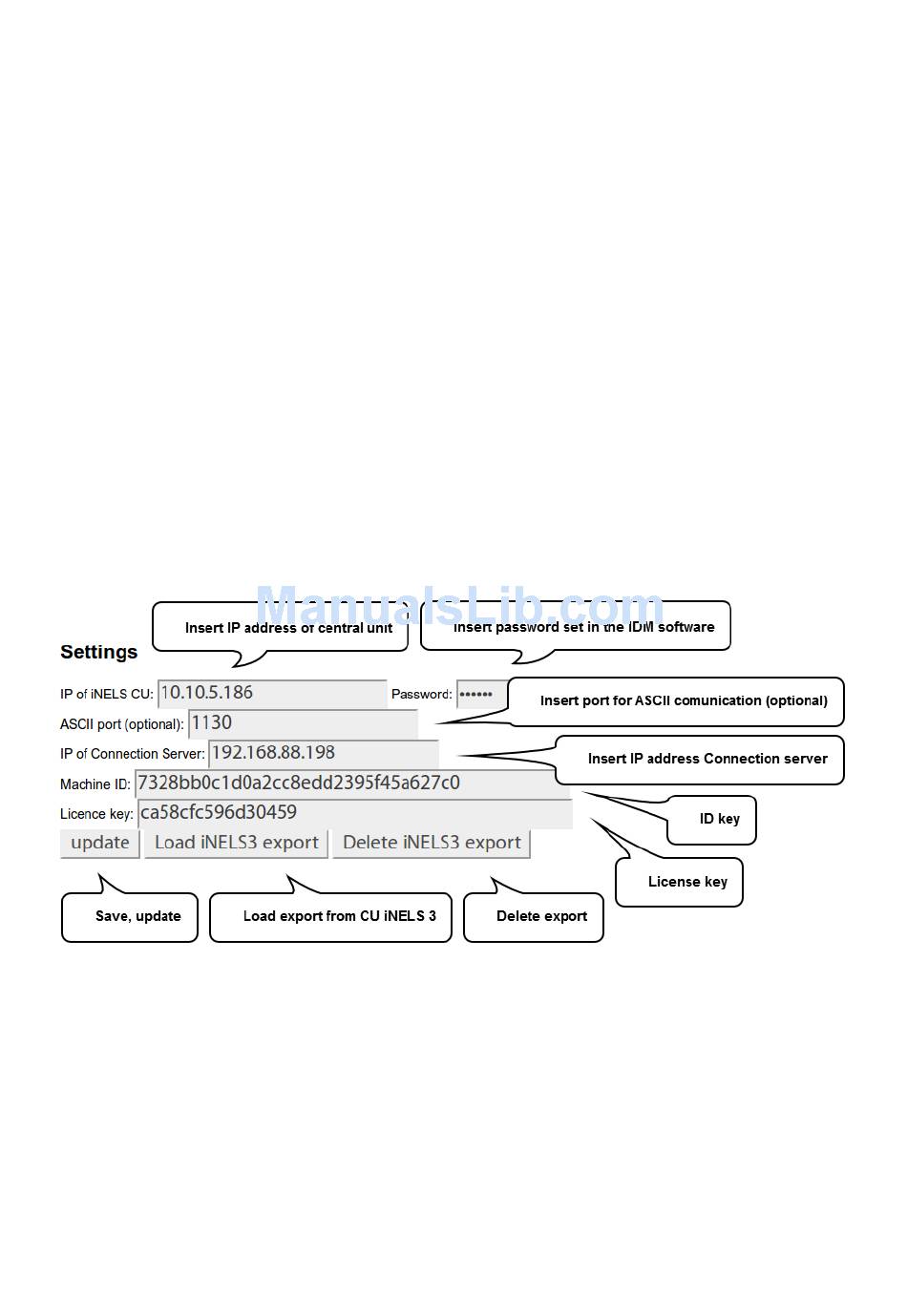

Example setup menu settings:
- is webserver CU3 with save file export.imm usually http://IPADDRESS/immfiles/export.imm
- port for comunication CU3 using third-party protocol (telnet) for proper function you must
set first port in IDM software (optional)
- password for acces and control central unit set in IDM software (optional)
Settings
Example:
10.5.15.12:8454
10.5.15.12:8080:4562
