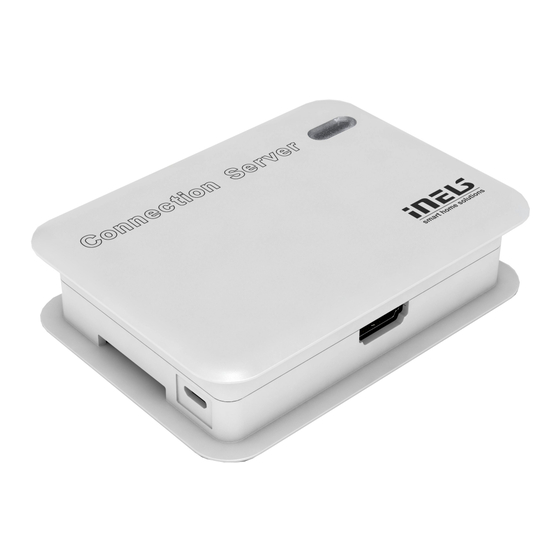

iNels Connection server User Manual

Hide thumbs Also See for Connection server:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Connection server
User manual 3.265
2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connection server and is the answer not in the manual?

Questions and answers

Related Manuals for iNels Connection server

Summary of Contents for iNels Connection server

  • Page 1: Table Of Contents Connection Server - User Manual 3.265

    Connection server User manual 3.265 2017...

  • Page 2: Table Of Contents

    Table of Contents Connection server - User manual 3.265 ....................1 Connection server EN ..........................4 Get started ..............................5 3.0 Settings iMM Control Center iMM Server ...................6 Bookmark Server ..........................7 iMM servers management ......................8 Bookmark Configuration ........................9 Settings ............................10 Upload or edit export.pub ......................11 Bookmark System ..........................12...
  • Page 3 Bookmark Miele ..........................59 Miele .............................60 Bookmark Intercoms ..........................61 2N settings ...........................63 New intercom account .........................64 Update of asterisk settings ......................65 Intercom accounts ........................66 Bookmark Energy ..........................67 Energy management ........................72 Create counter IDM3 ......................74 Bookmark Giom ..........................77 Giom scene ..........................79 Edit ............................80 Bookmark Manual ..........................81 Manual ............................82 Bookmark Default Settings ........................83...

  • Page 4: Connection Server En

    Connection between iNELS BUS system units and another devices. Connection Server - It serves as a connection between iNELS BUS system units and another devices because it allows communication between devices with different protocols. All devices can be then controlled through just one application.

  • Page 5: Get Started

    LAN cable for ethernet port Keyboard to USB port d) After connecting power suply (adapter with micro USB connector) Connection Server will start automatically. e) When starting the system you can watch opening of individual services on the screen. Some services do not open, and display FAILD in red;...

  • Page 6: 3.0 Settings Imm Control Center Imm Server

    Login by your password in factory installation is default: "admin", password "imm123" If iMM CC does not open, connect via ssh to Connection server and enter type folowing in command: sudo /etc/init.d/imm-web admin restart .

  • Page 7: Bookmark Server

    Bookmark Server Bookmark Server In bookmark Server you can control virtual servers (services), which are necessary for comunication with third party. For software diagnostic is possible each virtual server check status, stop or enforce run service. All virtual servers you can control via Supervisor service link http://IPADDRESS:9001...

  • Page 8: Imm Servers Management

    iMM servers management iMM servers management In menu iMM servers management we can control the virtual servers running on the server via a web interface. For software diagnostic is possible each virtual server check status, stop or enforce run service. All virtual servers you can control via Supervisor service link http://IPADDRESS:9001...

  • Page 9: Bookmark Configuration

    Bookmark Configuration Bookmark Configuration In bookmark Configuration is main settings impotrant for propertly function device Connection server. Machine ID and Licence key are preset in factory default. IP address format: If central unit is behind the NAT or in the other network and routers is possible use port forwarding. You can set port forwarded (on router) to comunication port central unit (CU2 port 61682 ,CU3 port 9999).

  • Page 10: Settings

    Settings Settings In the section Settings is main settings for setup Connection server whitch are IP address Central unit, server, password and ASCII port. Machine ID and Licence key are preset in factory default. IP address format: If central unit is behind the NAT or in the other network and routers is possible use port forwarding. You can set port forwarded (on router) to comunication port central unit (CU2 port 61682 ,CU3 port 9999).

  • Page 11: Upload Or Edit Export.pub

    Function for upload export.pub is only for central unit iNELS 2 In the central unit iNELS3 will dowload export automatically when you press Load iNELS 3 export button. In list we can add and remove elements manually...

  • Page 12: Bookmark System

    Bookmark System Bookmark System In bookmark System you can configure additional, network settings which will be stored on static IP address. We recommend setting a static IP address for Connection server. Shutdown - turn off Connection server Restart server - reboot Connection server...

  • Page 13: Network Settings

    Network settings Network settings In the section Network settings you can set IP address manualy as static or dynamically allocate by DHCP server. Example setup static IP addres: Set static IP address is recommended for stable use. Information about network settings IP address, link If you are using a dynamic IP address from DHCP server set the router to allocate always the same IP addresses based on MAC addresses.

  • Page 14: Shutdown Server

    Shutdown server Shutdown server Press down Shutdown button to power off Connection server from a web interface. For another turn on plug in power connector to Connection server...

  • Page 15: Restart Server

    Restart server Restart server Press down the Reset button to restart Connection server from a web interface.

  • Page 16: Restart Server Regulary

    Restart server regulary Restart server regulary In the section Restart server regulary we can setup scheduled restart the server at a specified time in a week. Example settings restart server in monday six minut after the midnight.

  • Page 17: Nfs Server Configuration

    NFS Server configuration NFS Server configuration Press down Update button to refresh NFS sharing settings in the file /etc/fstab. from a web interface.

  • Page 18: Bookmark Ha-Bus

    In bookmark HA-BUS we can used for interconnection iNELS3 BUS and decentralized control system KNX/EIB, which allows control from iHC app. Second function to add more iNELS3 central unit. Requirements for connect with KNX/EIB: Central unit iNELS or more Router KNX Export group address from program ETS3 - 5...
  • Page 19 Example add device KNX to rooms in bookmark Rooms: This manual does not describe the setting elements KNX only link two systems among themselves.

  • Page 20: Inels3

    iNELS3 iNELS3 First, enter the IP address of the central unit iNELS3 and Add. After saving the settings will download export from central unit and elements will be added prefix "inels3" last letter (A-H) identify rank. The prefix consists of two parts first one is "inels3" and second "A" (last char A-H) distinguishes, letter central unit between themselves.

  • Page 21: Knx

    Enter the IP address of the router KNX and press Save button. After saving the configuration file we find export group addresses from the program ETS3 and upload KNX exports. Check Configurations in the bookmark that contains a list of export elements KNX, if so go to bookmarks rooms and put in a selected room features KNX.

  • Page 22: Knx Add Actor To Rooms

    KNX add actor to rooms Add KNX element to the Rooms KNX elements put into a room in the same way as the elements iNELS, KNX recognise by prefixing "knx_". Example add KNX device to rooms:...

  • Page 23: Knx Export Group Address

    KNX export group address KNX export group address Export group addresses to format: 1/1 (Name/Add.) separate semicolon (;) the ETS 3 or higher. Example export group addresses from ETS: Before inserting the export it need to be more adapted behind the semicolon refill data type according element values (True, False, 0-255, 0-100) see.
  • Page 24 1 bit bool True | False 8 bit num 0-255 5.001 8 bit num 0-100 8 bit num -128 +127 3 byte num RGB [0,0,0] - [255,255,255]...

  • Page 25: Bookmark Rf Configuration

    Bookmark RF Configuration Bookmark RF Configuration Communication between wireless RF devices and Connection server is required smart box eLAN-RF. To configure the RF devices: a) The list of supported INELS RF devices b) Insert elements into Elan RF using a Web interface or application iHC-MARF see. Manual eLAN-RF.

  • Page 26: Settings

    Settings Settings For control RF devices in menu Settings insert IP address device eLAN-RF, which must already be configured from the web interface or applications IHC-MARF see. manual eLAN-RF. Example settings:...

  • Page 27: Bookmark Zones

    Bookmark Zones Bookmark Zones Bookmark Zones is used to configure the zones for Connection server. Zone: Giom Meteostation: Giom 3000 To insert a fill zone name, IP address and choose type of zone change switch to yes. Connection Server allows only insert zone meteostation Giom 3000.

  • Page 28: New Zone

    New zone New zone In the section New Zone, configure the Connection Server allows you to add only one type of zone. Giom Meteostation: Giom 3000 Example of a zone Giom: View already stored zone:...

  • Page 29: Defined Zones

    Defined zones Defined zone In menu Defined zone are displayed saved zone. Example of the stored zone Giom:...

  • Page 30: No Zone Defined

    No zone defined No zone defined You do not have any saved zone to create a zone, go to create zone.

  • Page 31: Bookmark Houses

    Example create a scene enterHouse: Saved relays with state in the scene enterHouse: For proper function must be enabled on your mobile GPS, and Google Location, mobile data and active connection to Connection server.

  • Page 32: Scene

    "Monitoring arriving home", which recognizes the different technologies that the user is coming to your home and starts the scene enterHouse more datail about this function in manual app iHC-MA. For proper function must be enabled on your mobile GPS, and Google Location, mobile data and active connection to Connection server.

  • Page 33: Edit Enterhouse Or Exithouse

    Edit enterHouse or exitHouse Edit enterHouse or exitHouse Edit scene enterHouse or Exit House. Example add elemets to scene enterHouse: Example add elemets to scene exitHouse:...

  • Page 34: Bookmark Security Scan

    Bookmark Security Scan Security Scan Security Scan is a security feature that checks the status of Miele appliances if you are running is displayed in the table Security scan report to all run iHC app. Security scan can be set to monitor the status of selected elements in the house.

  • Page 35: Trigger Ralays

    Trigger ralays Trigger ralays In the section Trigger relays is main configuration for security relay for notify about preset states devices and Miele appliances.

  • Page 36: Notify Me If Device Obtains Folowing State

    Notify me if device obtains folowing state Notify me if device obtains folowing state In the section Notify me if device obtains folowing state you can set condition monitoring states selected relay. Example Security Scan:...

  • Page 37: Bookmark Eventscript

    Bookmark EventScript EventScript In bookmark EventScript creted events based on which the preset start script. The event is performed if the element reaches the set value of the event. You can use different kinds of elements relay, DAC. etc.. EventScript use ASCII protocol, whitch must be turn on in IDM program to free port and in bookmark Configuration in iMM CC insert ASCII port for comunication.

  • Page 38: Trigger Rules

    Trigger Rules Trigger Rules In the section Tringer Rules you can create event based on which the run script. Example created event : Depending on the setting ASCI protocol set value in hex or DEC example. 50 in (HEX) is 80 (DEC) EventScript run with all device modes (HEX , HEX with prefix and DECIMAL)

  • Page 39: Bookmark A/C

    Bookmark A/C Bookmark A/C is used to define the air-conditioning or heat recovery by third parties and their control through the application iHC. Supported are: LG Clims CoolMaster, CoolMasterNet Air Pohoda Atrea Universal 0-10V LG Clims over the modul PI-485 over Advantech Adam 4571 CoolMaster series 1000D, 2000S, 3000T, 4000M, 6000L, 7000F, 8000HM, 9000M, CoolMasterNet over Advantech Adam 4571...
  • Page 40 CoolMasterNet Daikin Mitsubishi Electric (ME) Fujitsu (FJ) Mitsubishi Heavy (MH) Gree (GR) Panasonic (PN) Hitachi (HT) Samsung (SM) Intensity (MD) Sanyo (SA) Kentatsu (KT) Toshiba (TO) (LG) Trane (TR) Midea (MD) Compatibility: indoor, outdoor unit link Other: Atrea Duplex 180 EC4 P (0-10), Duplex 180 EC4 P (0-100) AiRPohoda by Adam 4571 Universal 0-10V by DAC 0-10V...

  • Page 41: Lg Clims

    LG Clims LG Clims In the section LG Clims is used to define air conditiong LG corporation. Supported are units with communications board PI485. LG air conditioning must be installed via RS485 - LAN, for example through device Advantech Adam 4571. Example stored LG air condition:...

  • Page 42: Coolmaster

    CoolMaster CoolMaster Is used to define air conditiong by universal control unit Coolmaster and control through the application iHC. Firs step: First, set the control unit Coolmaster according to the manufacturer's manual. (usually via DIP switches inside the unit) Setup converter LAN-serial485 (Recommended converter: Adam 4571) according to Coolmaster manual and connectconverter with control unit Coolmaster.
  • Page 43 For older Coolmasters version is necessary to set convertor to appropriate port. Coolmaster type: 1000D, 2000S, 3000T, 4000M, 6000L, 7000F, 8000I(HM), 9000M Convertor: Port: 10001 Adam 4571 nebo Gnome 485 CoolMasterNet (default setup) Port: 10102 Perform the function check via utility ncat command format: ncat IPADDRESS PORT Example ncat in terminal: Command...

  • Page 44: Air Pohoda

    Air Pohoda Air Pohoda Is used to define Air recovery call Air pohoda and control through app iHC. AirPohoda air recovery must be connected via RS485 - LAN, for example through device Advantech Adam 4571. Example stored Air recovery:...

  • Page 45: Atrea

    Atrea Atrea Is used to define Air recovery call Atrea and control through app iHC. Atrea Air recovery must be installed via RS485 - LAN, for example through device Advantech Adam 4571. Example stored Air recovery:...

  • Page 46: Universal 0-10V

    Universal 0-10V Universal 0-10V Is used to define universal air conditiong using DAC 0-10V and control through app iHC. Example stored Air condition:...

  • Page 47: Bookmark Rooms

    Bookmark Rooms Bookmark Rooms Bookmark Rooms is used to configuration souboru rooms.cfg, for loading applications iHC.. More information in the manual iHC. Rooms are actually "virtual rooms" (groups), which have the option to group the icons and zones for one or more screens. Name of room allows the use only characters A-Z, a-z, 0-9, -_.

  • Page 48: New Room

    New room New room Used to define rooms for applications iHC. Example imposed rooms: Name of room allows the use only characters A-Z, a-z, 0-9, -_.

  • Page 49: List Rooms

    List Rooms List of rooms Listing stored rooms on the server for applications iHC.

  • Page 50: Edit

    Edit Devices of rooms In menu Devices of room is used for editing rooms for application iHC.
  • Page 51 Example add device to room House: Example create scene: For scene control can be programmed to use a script that can execute various functions defined in it. It is necessary to keep an absolute path starting with "/" and ending with the suffix script ".py" (python).Example: /home/imm/ skript_lights.py Type device (icon filter devices) example.

  • Page 52: Rename

    Rename Rename In the section Rename you can change name of room for app iHC. Example rename "Room" to na Living room:...

  • Page 53: Bookmark Cameras

    Connect the camera according to camera manual and create a user for ONVIF protocol might be different according to manufacturer.Setup a profile video stream: for applications iHC to mjpg/jpeg to second stream rtsp for Connection server. If camera supported video stream only over rtsp:// protocol set-up codec to MPEG4 and HTTP port - iHC to 554.

  • Page 54: New Camera

    S video stream: for applications iHC to mjpg/jpeg to second stream rtsp mpeg4/H246 for Connection server. If camera supported video stream only over rtsp:// protocol set-up codec to MPEG4 and HTTP port - iHC to 554.
  • Page 55 Add video profile for mobile app iHC. List saved cameras:...

  • Page 56: Select The Stream

    Select the stream Select the stream In the section Select the stream you can choose specific camera streams assign to mobile app iHC. Example:...

  • Page 57: No Camera Defined

    No camera defined No camera defined You have no defined cameras at Connection server.

  • Page 58: List Of Cameras

    List of cameras List of cameras Menu List of cameras show saved cameras Connection server and options for remove selected camera.

  • Page 59: Bookmark Miele

    Bookmark Miele Bookmark Miele In bookmark Miele set IP address device Miele gateway, that serves remote control of appliances over powerline, or ZigBee protocol. Supported are: XGW 2000, XGW 3000 (Firmware 1.1,1.2) Set IP address MieleGateWay is stored in the file /etc/imm/miele...

  • Page 60: Miele

    Miele Miele In the section Miele set IP adresu device Miele gateway, that serves remote control of appliances over powerline, or ZigBee protocol. Supported are: XGW 2000, XGW 3000 (Firmware 1.1, 1.2) Set IP address MieleGateWay is stored in the file. /etc/imm/miele Relay for restart GW is used for power off /on if gateway lost network connection and sended notification on user email.

  • Page 61: Bookmark Intercoms

    In the section 2N settings set access (username, password) and lock code for open door (2N IP intercoms). Setting the following Username and Password access data on the web interface 2N and Lock code set value to relay 2N intercom. Connection server support set only one door intercom for open via DTMF. Supported IP intercoms are :...
  • Page 62 Lock code, if we choose a different name for intercom will behave like an ordinary contact and opening function must be set manually in the mobile app. For open switch intercom 2N setup signal DTMF first in web interface Connection server Intercoms > 2N settings or in app iHC.

  • Page 63: 2N Settings

    Setting Username and Password are access datail on the web interface 2N and Lock code set value for switch to relay 2N intercom. Connection server support set only one door intercom for open via DTMF. Supported are IP intercoms :...

  • Page 64: New Intercom Account

    New intercom account New intercom account In the menu New intercom account creating VOIP accounts on server side for applications iHC. Stream for cam 2N add in format rtsp://IPADDRESS For view in application iHC must be stream format mjpeg...

  • Page 65: Update Of Asterisk Settings

    Update of asterisk settings Update asterisk settings Button Apply settings activate the newly created accounts VOIP and restart asterisk PBX .

  • Page 66: Intercom Accounts

    Lock code, if we choose a different name for intercom will behave like an ordinary contact and opening function must be set manually in the mobile app. For open switch intercom 2N setup signal DTMF first in web interface Connection server Intercoms 2N settings or in app iHC.

  • Page 67: Bookmark Energy

    Energy module allows recording of consumed energy for a day, week, month and year. Data are saved in Connection server – the data do not get lost even in case of power shutdown or power cut. Consumption can be displayed in a table or graph.
  • Page 68 Creation of counter in iDM:...
  • Page 69 Creation of action “Counter incrementing":...
  • Page 70 Action assignment to binary input where output from measuring instrument is connected.
  • Page 71 Assign counter value in iMM Control Center Example: 1 kWh = 100,- Kč = 100 pulzů Base Unit – kWh Impulses – 100 per 1 kWh Price – 1 per 1 impulse Create counter in sowftware IDM3 see. Create counter IDM3...

  • Page 72: Energy Management

    Energy management Energy management In the section Energy management select binary inputs for WATER, GAS, ELECTRICITY and adding them to unit, impulse, currency. Example Energy management:...
  • Page 73 Create counter see. bookmark Energy...

  • Page 74: Create Counter Idm3

    Create counter IDM3 Create counter IDM3 Create counter in software IDM3 In bookmark Managers, select the System Manager and go to the tab Counters where we create a counter name.
  • Page 75 Creating functions for counter In the Functions tab, select the Function Manager and create a function called Energy Increment Move the switch and central units to the desktop and double click on switch icon edit and select IN Digital input M3-80B.
  • Page 76 In the tab, Function select Wire Manager, select the input (IN) Energy through button the Edit function to adjust to Action: Short down User function: Energy Increment. Add the created counter to iMMCC Energy management...

  • Page 77: Bookmark Giom

    Scene In the tab Giom creating scenes based on data from weather stations Giom and their reactions electro installations iNELS. In the bookmark Giom creating a scene according to data from the weather station call Giom Scene will be activated if selected value is higher or lower then set and assigned to units.
  • Page 78 Connect Giom station as zone: IMM connection with the server is defined in iMMControl Center in the "Zones" where it is necessary to state "Is it Giom?" switch from "no" to "yes". To integrate Meteo Station you need to change its IP address to an address of the given range. Settings can be performed via web interface.

  • Page 79: Giom Scene

    Giom scene Giom Scene In the bookmark Giom creating a scene according to data from the weather station call Giom Scene will be activated if selected value is higher or lower then set and assigned to units. Edit scene: For proper function you must first set up Giom such a zone.

  • Page 80: Edit

    Edit Edit Edit is used to create or edit scenes. In the selected scene type is possible add or remove relay units. Edit selected scene: Example...

  • Page 81: Bookmark Manual

    Bookmark Manual Bookmark Manual In bookmark Manual is available for download the latest version of the manual in PDF format.

  • Page 82: Manual

    Manual Download manual In the section Download manual you can download the current version manual for Conncetion server in PDF format.

  • Page 83: Bookmark Default Settings

    Bookmark Default settings Bookmark Defualt settings is used for reset settings to default state. The first option offers is Reset all clients settings to default to reset Connection server to factory default ie. remove all users settings. The second option is Reset all devices dependencies to default, whitch only remove users...

  • Page 84: Reset All Server Settings To Default

    Reset all server settings to default Reset all server settings to default Reset all server settings to defalt is used to reset Connection server to factory default i.e.that all user settings will be erased.

  • Page 85: Reset All Devices Dependencies To Default

    Reset all devices dependencies to default Reset all devices dependencies to default Menu Reset all devices dependencies to default, remove settings which are depending on other functions Connection server for example relay,air conditiong etc.

  • Page 86: Bookmark Audit

    Bookmark Audit Bookmark Audit Bookmark Audit is used to show and download LOG file option events for diagnostic purposes developer.

  • Page 87: Logged Events

    Logged events Logged events Menu Logged events is used to show a download LOG option events for diagnostic purposes developer.

  • Page 88: Others

    Others Integration Control 4...

  • Page 89: Control 4

    The first add iNELS3 Master Driver and after that load other iNELS3 drivers Insertion IP addresses to the Master Driver Procedure: Go to the Connections menu where select iNELS3 Master Driver and continue on the top bookmark Network, after that open iNELS 3 Master Driver and enter the IP address.
  • Page 90 Example of inserting the dimmer to ovaldače iNELS3_Dimmer First, select the unit from the list in bookmark Configuration in IMMCC , then DA3-22M_OUT1_000021 Y B 17039361 REAL PUB_INOUT put in the project iNELS3 Dimmer where change device name  and put the address of the unit Device Address: 17039361. Debug mode, it is an optional parameter, if you set the Print and log can verify the tab lua changeing states.
  • Page 91  Add to project  iNELS3_Thermostat  where change device name  and continue in bookmark Properties: First, select the unit address HEATCOOLAREA  stateTH from the list in bookmark Configuration in IMMCC NameHEATCOOLAREA_StateTH 2181234690 Y B REAL PUB_INOUT after that find address Cooling relay and Heating relay. If we only have a separate cooling circuit Or or heating.
