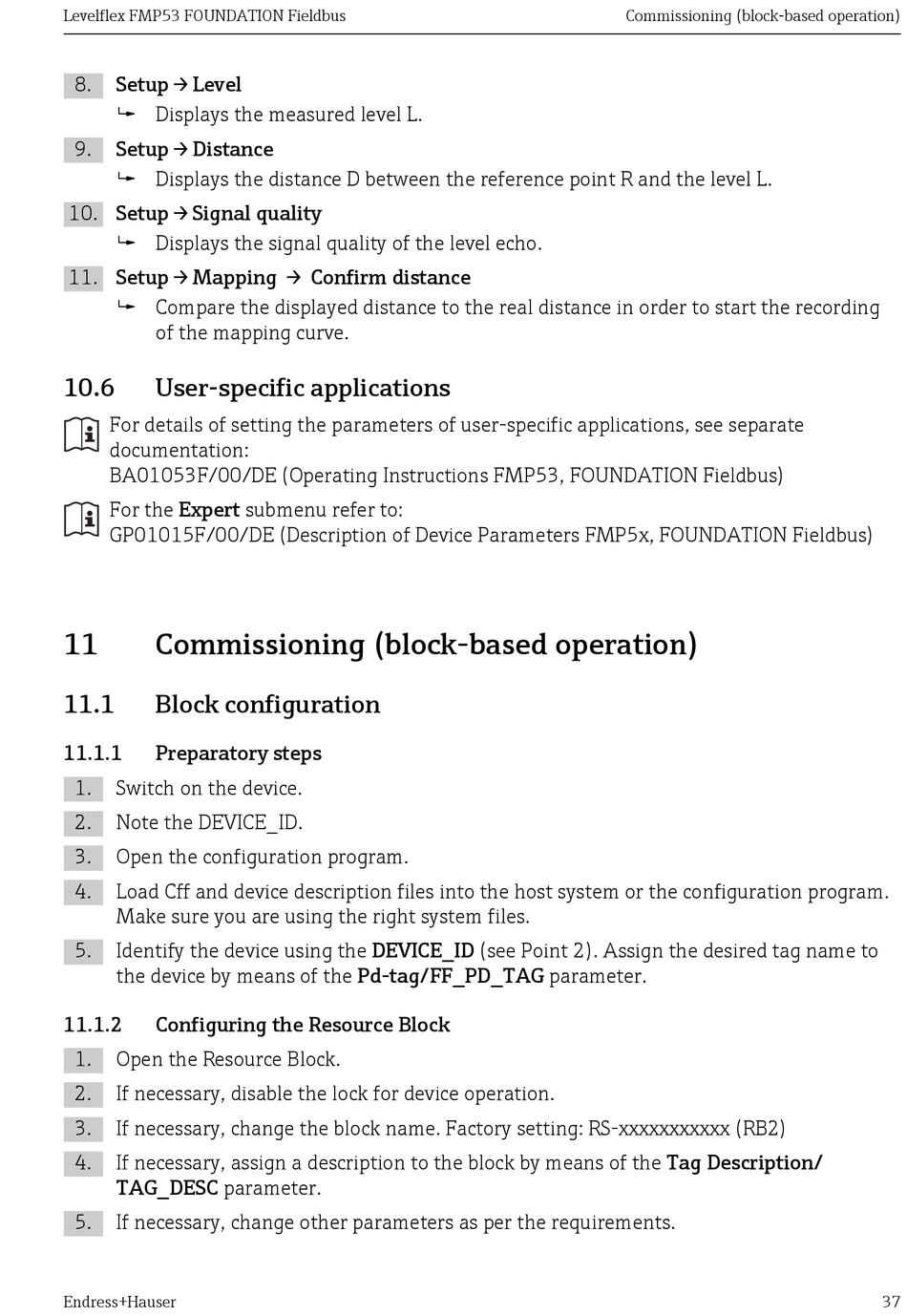

Levelflex FMP53 FOUNDATION Fieldbus
8. Setup → Level
 Displays the measured level L.
9. Setup → Distance
 Displays the distance D between the reference point R and the level L.
10. Setup → Signal quality
 Displays the signal quality of the level echo.
11. Setup → Mapping → Confirm distance
 Compare the displayed distance to the real distance in order to start the recording
of the mapping curve.
10.6

User-specific applications

For details of setting the parameters of user-specific applications, see separate
documentation:
BA01053F/00/DE (Operating Instructions FMP53, FOUNDATION Fieldbus)
For the Expert submenu refer to:
GP01015F/00/DE (Description of Device Parameters FMP5x, FOUNDATION Fieldbus)
11

Commissioning (block-based operation)

11.1

Block configuration

11.1.1 Preparatory steps
1. Switch on the device.
2. Note the DEVICE_ID.
3. Open the configuration program.
4. Load Cff and device description files into the host system or the configuration program.
Make sure you are using the right system files.
5. Identify the device using the DEVICE_ID (see Point 2). Assign the desired tag name to
the device by means of the Pd-tag/FF_PD_TAG parameter.
11.1.2 Configuring the Resource Block
1. Open the Resource Block.
2. If necessary, disable the lock for device operation.
3. If necessary, change the block name. Factory setting: RS-xxxxxxxxxxx (RB2)
4. If necessary, assign a description to the block by means of the Tag Description/
TAG_DESC parameter.
5. If necessary, change other parameters as per the requirements.
