Mounting
Mounting the electronics housing
A
122 (4.8)
158 (6.2)

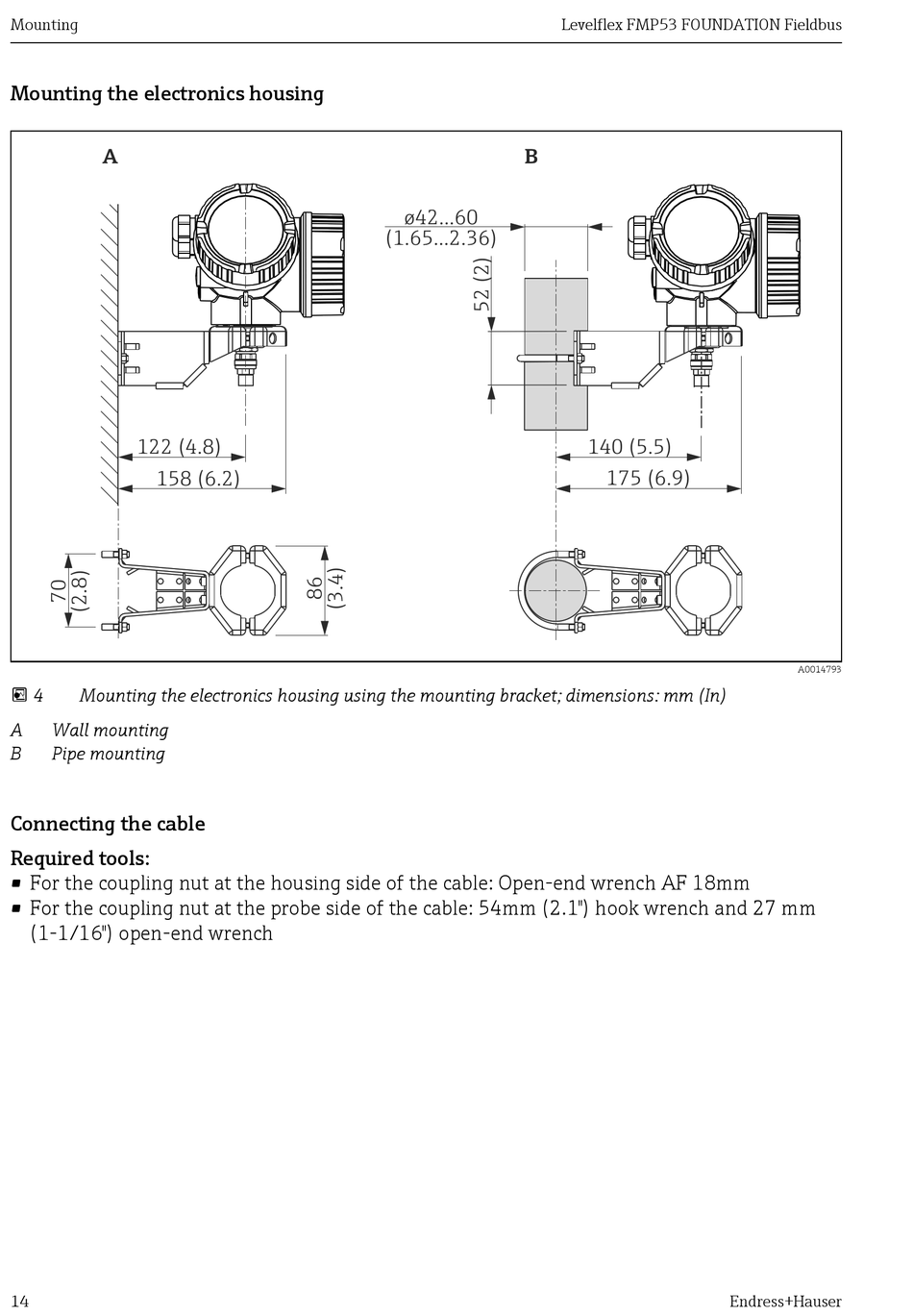

 4 Mounting the electronics housing using the mounting bracket; dimensions: mm (In)
A Wall mounting
B Pipe mounting
Connecting the cable
Required tools:
• For the coupling nut at the housing side of the cable: Open-end wrench AF 18mm
• For the coupling nut at the probe side of the cable: 54mm (2.1") hook wrench and 27 mm
(1-1/16") open-end wrench
14
B
ø42...60
(1.65...2.36)
Levelflex FMP53 FOUNDATION Fieldbus
140 (5.5)
175 (6.9)
