KT&C KPC-DW100 Operation Manual

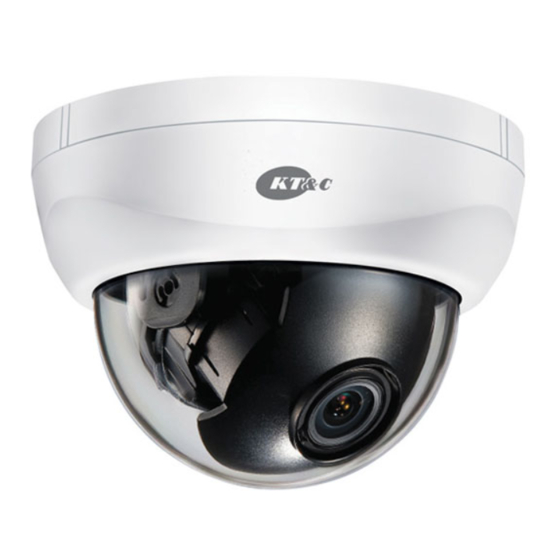

Wdr high resolution dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M059-DW100-001
W D R
HIGH RESOLUTION DOME CAMERA
OPERATION MANUAL
T han k y ou for choosing our high q ua lity ca m e ra .
Before attempting t o connect or ope ra t e , p le a se re a d a n d fo llo w
th ese ins tructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPC-DW100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KT&C KPC-DW100

Summary of Contents for KT&C KPC-DW100

  • Page 1 M059-DW100-001 W D R HIGH RESOLUTION DOME CAMERA OPERATION MANUAL T han k y ou for choosing our high q ua lity ca m e ra . Before attempting t o connect or ope ra t e , p le a se re a d a n d fo llo w th ese ins tructions.
  • Page 2 C ON TE NT S 1 . C a u t i on s 2 . F e a t u re s 3 . P a c k a g e 4 . O v e r v ie w an d f un ct i on 5 .
  • Page 3 1 .Ca ut i ons This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. Thi s device may not cause ha rmf u l in te rf e re n ce . 2.
  • Page 4 1 .Ca ut i ons Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
  • Page 5 2 .Fea tures CAUTIONS • Sony Vertical Double - Density interline 1/3 ″ CCD • High Resolution of 550TV Lines • DC Iris Varifocal Lens, Board Lens • Powerful WDR (Wide Dynamic Range) Performance • Intensified DSS accumulation field number up to 500x •...
  • Page 6 2 .Fea tures • 3-Axis Gimbal • Service Video connector The Serv ice Video Connector also p ro vid e s the i nstal l er wit h an easy way of co n fig u rin g the c amera.
  • Page 7 3 .Package FEATURES CAUTIONS DOME CAMERA VIDEO OUTPUT TEST CABLE OPERATION MANUAL SCREW - 3ea MOUNT GUIDE...
  • Page 8 4.Overview and function • Name (LED Type) • CONTROL FUNCTION (OSD JOYSTICK) R I G H T LE FT • Name (Standard) M E N U D OW N...
  • Page 9 5 . Installation LED Type Standard Type PART NAME STANDARD Type LED Type Mount Guide Housing Botton Holder Panning Holder Tlit Holder Rotate Cover Sun Shield Cover LED Housing Top Cover, Dome...
  • Page 10 6 .Connection DC 12V POWER SUPPLY • DC12V VIDEO IN BNC FEMALE VI DEO DC 12V / AC 24V DUAL POWER SUPPLY • DUAL(DC12V/AC24V) VIDEO IN BNC FEMALE VI DEO When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
  • Page 11 7 .Dim ensions Unit : mm Ø100 95.3 Ø136.4 50˚ 70˚ 65˚ ◀ When using a wide angle lens of 2.6mm, Tilt is not available over 65°. When you fix the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please set short distance focus approximately 3M and do not set long distance focus.
  • Page 12 8 .Specificat ion s Signal Format NTSC Image Device 1/3" Sony Vertical double-density interline CCD image sensor Scanning System 2:1 Interlace H.Resolution 550TV Lines Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Board Lens...

  • Page 13: Menu Description

    9 .OSD Men u MENU DESCRIPTION • The best clear image can be obtained color camera with WDR(Wide Dynamic Range). • The camera switches lenses automatically depending on the illumination, which promotes the best possible color images during the day and black / white image at night. •...

  • Page 14: Table Of Contents

    9 .OSD Men u GENERAL STRUCTURE SETUP >LENS [┛] EXPOSURE [┛] WHITE BALANCE [┛] [┛] DAY&NIGHT [┛] IMAGE [┛] SPECIAL [┛] FACTORY DEFAULT EXIT LENS ... DC >LENS TYPE ... 08 LEVEL INITIAL RETURN EXPOSURE ... 1/60 >SHUTTER ... OFF FLICKERLESS ...
  • Page 15 9 .OSD Men u DAY & NIGHT CAM TITLE 0123456789ABCDEFGHIJKLMN OPQRSTUVWXYZ!?*#$%()<>{} ... COLOR >D&N MODE CAM TITLE ... ---- LEVEL SPACE>> <<BACK ... ---- DWELL TIME INITIAL RETURN ... [┛] LOCATION RETURN IMAGE CAMM ADJ ... NORMAL >REVERSE ... 10 ...
  • Page 16 9 .OSD Men u LENS MENU STRUCTURE EXPOSURE MENU STRUCTURE...
  • Page 17 9 .OSD Men u WHITE BALANCE MENU STRUCTURE WDR MENU STRUCTURE...
  • Page 18 9 .OSD Men u DAY & NIGHT MENU STRUCTURE IMAGE MENU STRUCTURE...
  • Page 19 9 .OSD Men u SPECIAL-CAM TITLE SPECIAL-LANGUAGE...
  • Page 20 9 .OSD Men u SPECIAL-SYNC SPECIAL-COMM ADJ...
  • Page 21 9 .OSD Men u SPECIAL-PRIVACY SPECIAL-MOTION DET...
  • Page 22 9 .OSD Men u SPECIAL-DISPLAY...

  • Page 23: Lens Type

    9 .OSD Men u OSD FUNCTION DESCRIPTION 1.LENS : Enable user to select the lens type according to equipped with camera. Set up using LEFT, RIGHT KEY at each menu. - LENS TYPE ①ELC : Enable user to set up for BOARD lens. ②DC : Enable user to set up for DC Iris lens.

  • Page 24: White Balance

    9 .OSD Men u 3. WHITE BALANCE : Enable user to represent the accurate white color by controlling the R,G,B level. Setting up LEFT, RIGHT KEY on each menu. - WB MODE ① ATW : Enable user to trace the White Balance automatically in the range of 2,500K~11,000K.

  • Page 25: D&N Mode

    9 .OSD Men u 5. DAY&NIGHT : Conversion of output image COLOR / BW depending on exterior environment Enable user to set the LEFT, RIGHT KEY in menu. - D&N MODE ①COLOR : Enable user to fix the output image in color. ②B/W : Enable user to fix the output image in B/W.

  • Page 26: Image

    9 .OSD Men u 6. IMAGE : REVERSE, SHARPNESS, FREEZE, D-ZOOM functions set up by pressing LEFT, RIGHT KEY. - REVERSE: Enable user to reverse the image. -> NORMAL, H, V, H/V - SHARPNESS : Enable user to control the image sharpness (0~15steps). - FREEZE : Enable user to freeze the image.

  • Page 27: Special

    9 .OSD Men u 7. SPECIAL : Setting up the CAM TITLE, LANGUAGE, SYNC, COMM ADJ, PRIVACY, MOTION DET, DISPLAY Set up using LEFT and RIGHT key in each manual. - CAM TITLE : Enable user to choose any word in screen. (Maximum 10 letter is available) ①...

  • Page 28: Comm Adj

    9 .OSD Men u - COMM ADJ : Enable user to set up CAMERA ID, BAUDRATE. ① CAM ID : Enable user to set up Camera ID (0~255). ② BAUDRATE : A communication speed to Communicate with external device. (2400, 4800, 9600, 19200). ③...

  • Page 29: Motion Det

    9 .OSD Men u - MOTION DET : Motion detection function. ① MOTION MODE : Enable user to set up ON/OFF. ② ZONE : Enable user to set up detection zone. -> TOP, BOTTOM, CENTER, LEFT, RIGHT,WHOLE ③ LEVEL : Enable user to set up a sensitivity (0~5). ④...
  • Page 30 1 0.Comm un ica t i o n P r o t o c o l Pelco “D” Protocol Commands • Most widely used Commands - TELE = UP KEY - WIDE = DOWN KEY - NEAR = LEFT KEY - FAR = RIGHT KEY - MENU = MENU KEY...
