5.

Installing the Pantel VoIP/Pancode VoIP

The Pantel VoIP/Pancode VoIP can be installed as an individual access control or used with adjacent access-
control devices, such as card reading devices (see Section 6).
The provided 12V AC external power supply should not be located further than 10m (30ft) from the unit.
These units also support Power Over Ethernet (PoE), meaning that they could operate when connected to
Ethernet without mains. However, the current provided by the PoE supply is insufficient for opening a
door. If your system is equipped with door lock relay, make sure to use the external supply.

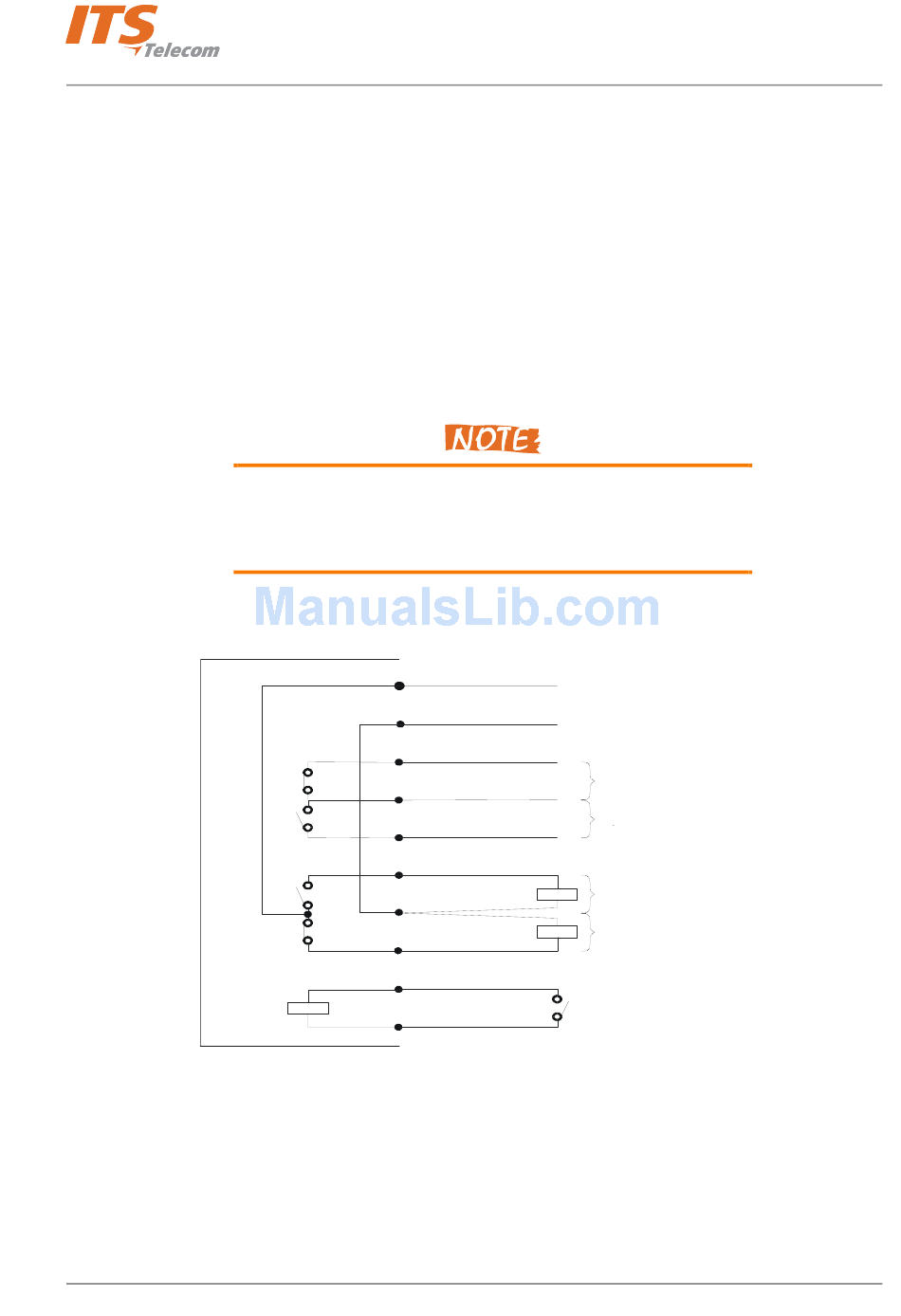

Figure 5 shows the terminal locations on the wire connector provided with the unit. This connector is attached at
the base of the internal component. All wiring to the unit is attached to the wire connector.
The Pantel VoIP/Pancode VoIP supports a bypass switch installation. This allows opening the door with a
hardwired switch. A bypass switch should be connected to the SW and /SW terminals.
Contact
Detection
Pancode VoIP/Pantel VoIP Access Control Door Phones
There may be LINE pins in the connector, but they are not active with
this product and cannot be used. When holding the unit as displayed
in Figure 6, the first pin from the right is the first ~12V pin.
~12V
~12V
N.C.
CMN
N.O.
DLR
~DLR
~DLR
/DLR
Bypass Switch (SW)
Bypass Switch (/SW)
Figure 5. Connectors Scheme
Installation and Programming Manual
option 1
Connect
to an
External
option 2
Device
Connect
option 3
to Door
Lock
option 4
Relay
8
