Pancode VoIP/Pantel VoIP Access Control Door Phones
Installation and Programming Manual
3.
Installation
The Pantel VoIP/Pancode VoIP is mounted on the provided installation bracket. This mounting bracket should be
installed as shown in Figure 3.

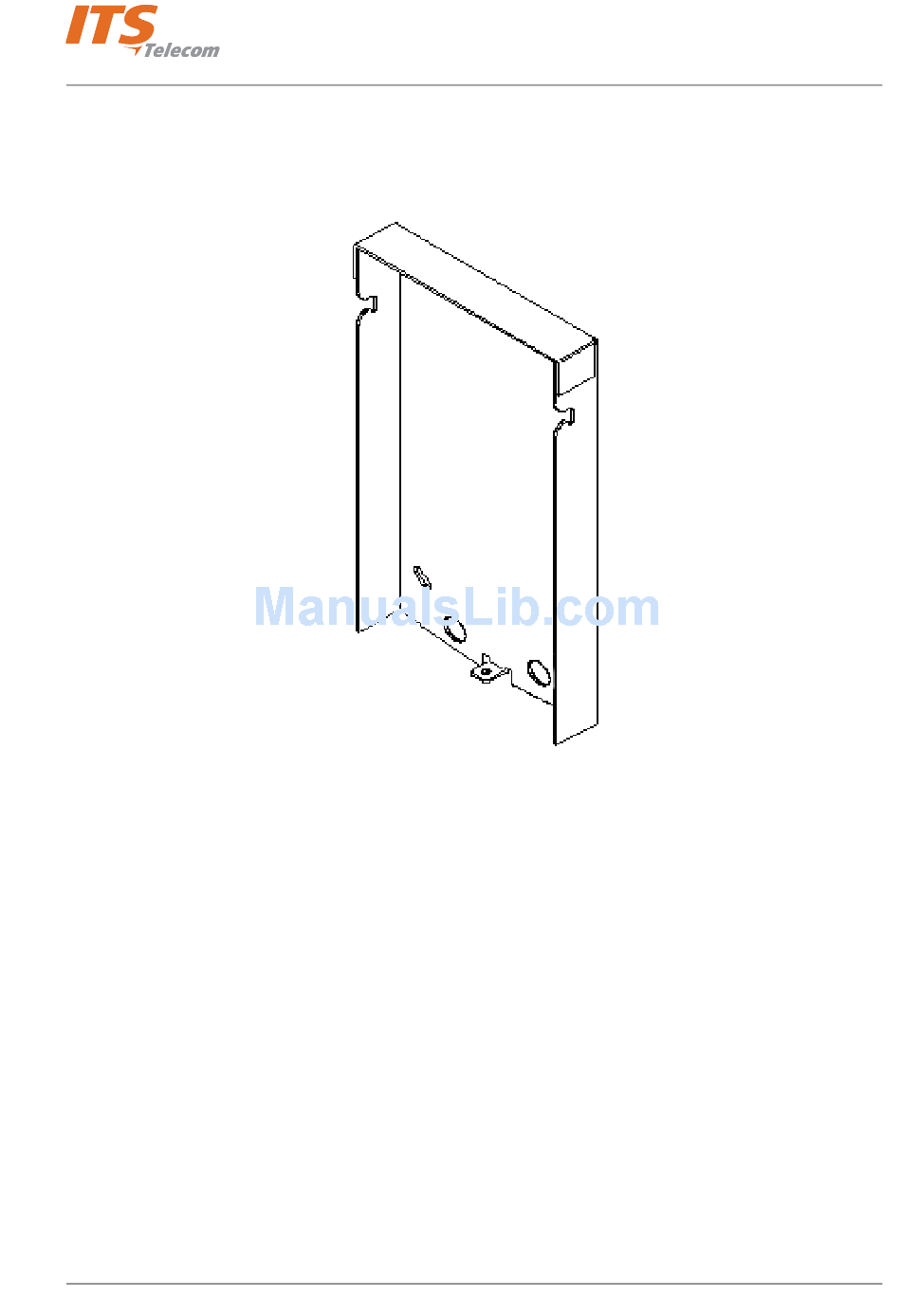

Figure 3. Installation Bracket
To install the wall bracket:
a. Measure and mark the location on the wall where the holes will be drilled for the mounting bracket.
b. Drill the holes and insert the wall anchors into the holes.
c.
Attach the mounting bracket using the provided wall screws.
6
