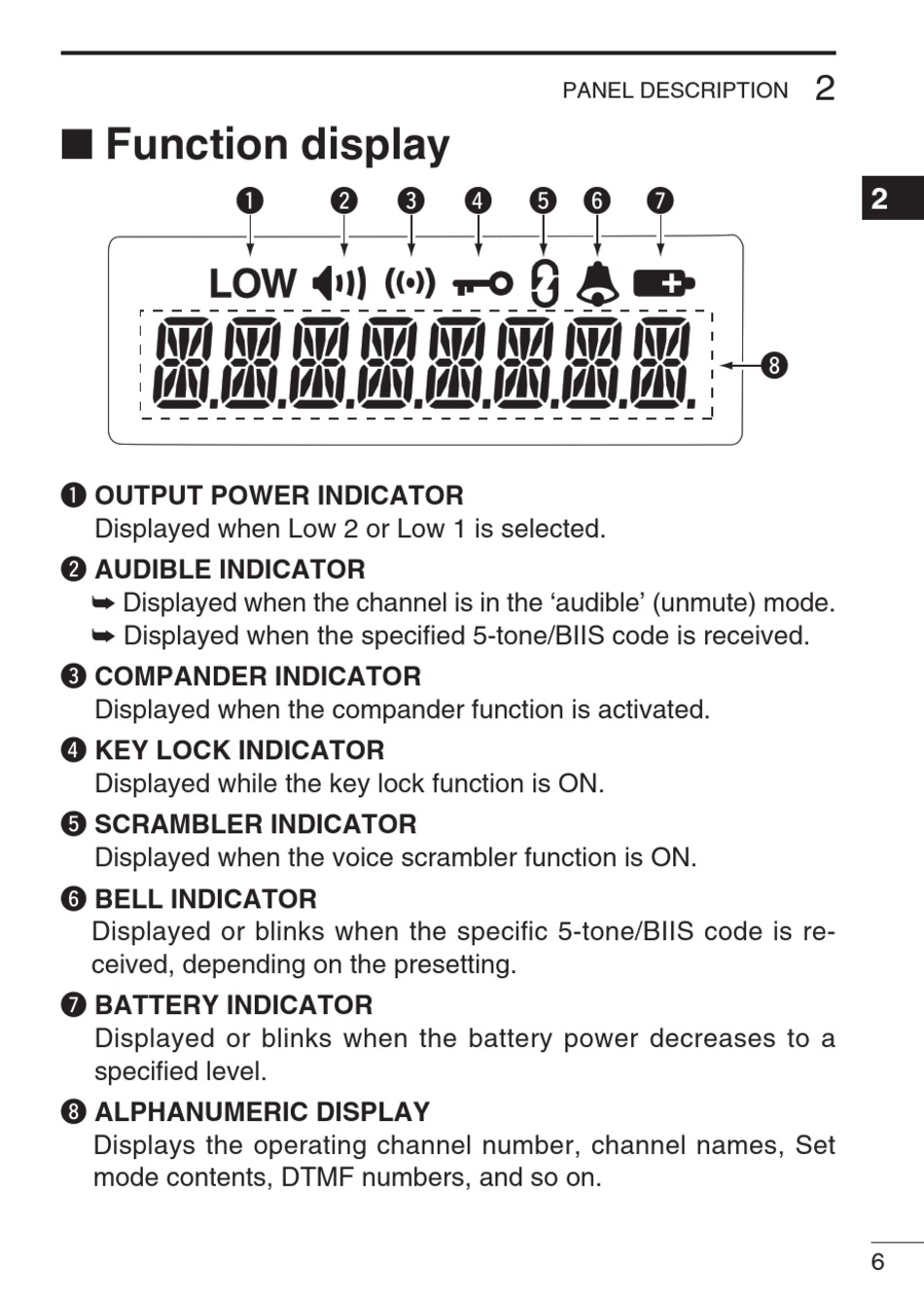

■ Function display

q OUTPUT POWER INDICATOR
Displayed when Low 2 or Low 1 is selected.
w AUDIBLE INDICATOR
➥ Displayed when the channel is in the 'audible' (unmute) mode.
➥ Displayed when the specified 5-tone/BIIS code is received.
e COMPANDER INDICATOR
Displayed when the compander function is activated.
r KEY LOCK INDICATOR
Displayed while the key lock function is ON.
t SCRAMBLER INDICATOR
Displayed when the voice scrambler function is ON.
y BELL INDICATOR
Displayed or blinks when the specific 5-tone/BIIS code is re-
ceived, depending on the presetting.
u BATTERY INDICATOR
Displayed or blinks when the battery power decreases to a
specified level.
i ALPHANUMERIC DISPLAY
Displays the operating channel number, channel names, Set
mode contents, DTMF numbers, and so on.
