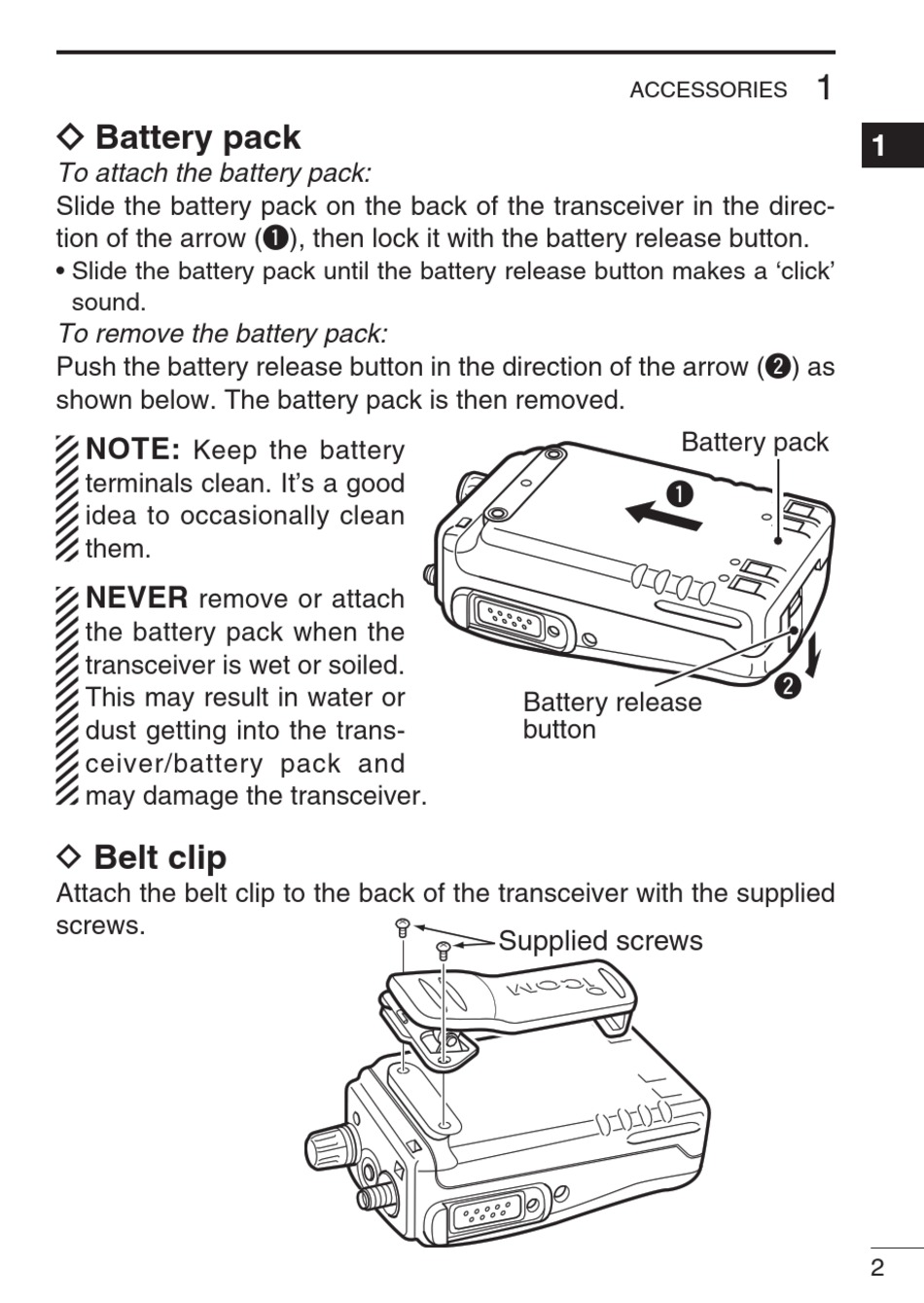

ï Battery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direc-
tion of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a 'click'
sound.
To remove the battery pack:
Push the battery release button in the direction of the arrow (w) as
shown below. The battery pack is then removed.
NOTE:
Keep the battery
terminals clean. It's a good
idea to occasionally clean
them.
NEVER
remove or attach
the battery pack when the
transceiver is wet or soiled.
This may result in water or
dust getting into the trans-
ceiver/battery pack and
may damage the transceiver.
D Belt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.

ACCESSORIES

q
Battery release
button
Supplied screws
1
Battery pack
w
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
