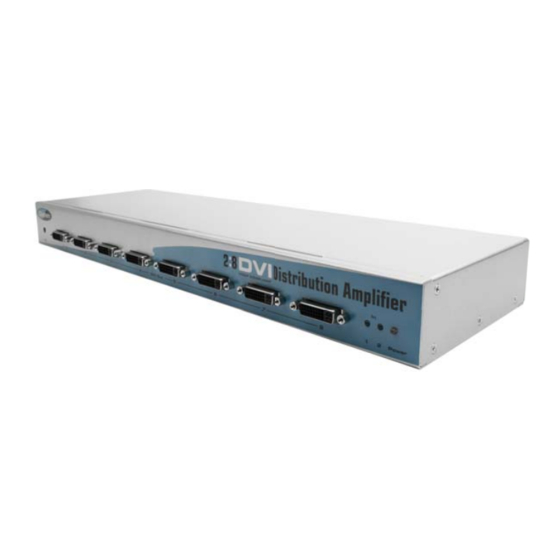

Gefen 2x8 DVI DA User Manual
Hide thumbs Also See for 2x8 DVI DA:

Advertisement

Quick Links

2x8 DVI DA
U S E R
M A N U A L
www.gefen.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2x8 DVI DA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gefen 2x8 DVI DA

  • Page 1 2x8 DVI DA U S E R M A N U A L www.gefen.com...
  • Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 2:8 DVI Distribution Amplifi er is a trademark of Gefen Inc.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Operation Notes Panel Descriptions Dip Switch Settings IR Code Confl icts RS-232 Interface Specifi cations Warranty...
  • Page 4: Introduction

    DVI displays. How it works: Gefen’s ex•tend•it 2:8 DVI distribution amplifi er is an expandable distribution hub that sends the same DVI graphics source to eight DVI based digital screens (fl at panels or projec- tors).
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 2:8 DVI DISTRIBUTION AMPLIFIER SYSTEM • All the monitors connected to the 2:8 DVI Distribution Amplifi er must be able to run at the same native resolution. The 2:8 DVI Distribution Amplifi er does not scale the video. •...
  • Page 6: Panel Descriptions

    2:8 DVI DISTRIBUTION DA FRONT PANEL DESCRIPTION IR Eye DVI Output Power RS-232 Extender Input DVI Input Input Input...
  • Page 7: Dip Switch Settings

    DIP SWITCH SELECT SETTINGS Inside the 2x8 DVI Splitter is a bank of Dip Switches. Below is a table describing their functions. By default, all switches are set to the Off position. Dip Switch # Name Description Switching Delay Adds a 3 second delay to switching On Board EDID Feeds a Generic EDID to all Inputs IR Code Dip Switch...
  • Page 8: Ir Code Confl Icts

    How to Resolve IR Code Confl icts There are matching pairs of dip switches underneath the 2x8 DVI DA unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 3 & 4 underneath the unit are the matching switches.
  • Page 9: Rs-232 Interface

    RS-232 INTERFACE Binary Table ASCII Input Binary 0011 0001 0011 0010 Terminal Settings Bits per second ...................... 19200 Data bits ........................8 Parity ........................None Stop bits ..........................1 Flow Control ......................None...
  • Page 10: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ................. 1.65 GHz Single Link Range ..................1920 x 1200 Vertical Frequency Range ..................60 Hz DVI Input/Output Connector Type ............DVI-I (Digital Only) Power Consumption ................60 Watts (max.) Power Supply ......................24VDC Dimensions ................... 17”W x 1.75”H x 7.5”D Rackmountable ..................
  • Page 11: Warranty

    Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
