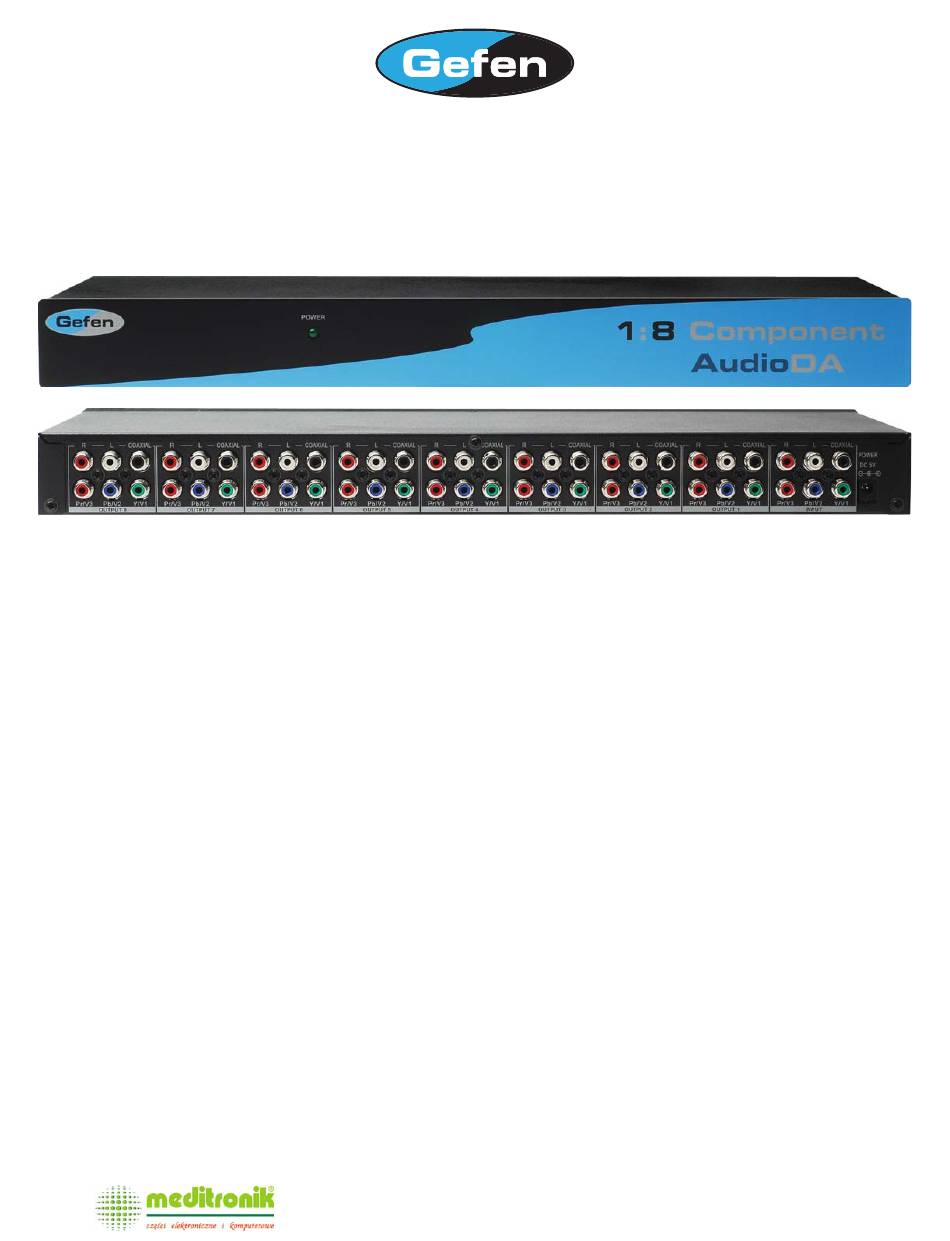

One Component With Audio Distribution
Distribute One Source To Eight Displays
One Component and Audio Input, Eight Component and
Audio Outputs. The 1:8 Component Audio Distribution
Amplifi er is the perfect solution for anyone who needs to
mirror one video with audio source to multiple displays. The
1:8 Component Audio Distribution Amplifi er has eight video
and audio outputs, one Component input and one Audio
input.
Features:
•
Connect up to eight component displays at the same time
to one component video source
•
Support SD (composite, YCbCr) and HDTV (YPbPr, RGsB)
input signal
•
Maintains 480p, 720p, 1080i, and 1080p resolutions
•
Maintains high resolution video - beautiful HDTV
resolutions up to 1080p are easily achieved
To Eight Displays
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
How It Works
Connect your Component video and Audio source to the
1:8 Component Audio Distribution Amplifi er's input using
the supplied Component with audio cable. Then connect up
to eight Component displays to the 1:8 Component Audio
Distribution Amplifi er. Then, power the 1:8 Component
Audio Distribution Amplifi er. The Component displays
attached to the 1:8 Component Audio Distribution Amplifi er
must all support the same resolution as the source in order to
get a picture.
Specifi cations:
•
Input: YPbPr x1 or RGsB x1 (or RGBHV), or 3x composite
1 Vpp@ 75 ohm
•
Output: YPbPr x8, or RGsB (or RGBHV) x8, or composite
3x8
•
Audio input: coaxial (S/PDIF) x1 + R/L x1
•
Audio output: coaxial (S/PDIF) x8 + R/L x8
•
Analog audio input/output: Audio 2 Vrms max 47k ohm
•
Bandwidth: 480MHz (-3dB)
•
Video Range: 1080p max
•
Power Supply: 5V DC
•
Dimensions: 17.5"W x 1.75"H x 6.75"D
•
Shipping Weight: 4 lbs.
EXT-COMPAUD-148
Advertisement
Related Manuals for Gefen EXT-COMPAUD-148
Summary of Contents for Gefen EXT-COMPAUD-148
- Page 1 One Component With Audio Distribution To Eight Displays EXT-COMPAUD-148 Distribute One Source To Eight Displays How It Works One Component and Audio Input, Eight Component and Connect your Component video and Audio source to the Audio Outputs. The 1:8 Component Audio Distribution 1:8 Component Audio Distribution Amplifi...
- Page 2 1x8 Component Audio DA U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x8 Component Audio DA is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 1x8 Component Audio DA Specifi cations Warranty... -
Page 5: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. -
Page 6: Features
FEATURES Features • Connects up to eight component displays at the same time to one video source • Allows simultaneous display • Support SD(Composite, YCbCr) and HDTV(YPbPr, RGsB) Input signal • Maintains 480i, 480p, 720p, 1080i, and 1080p resolutions • Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 8: Connecting And Operating The 1X8 Component Audio Da
CONNECTING AND OPERATING THE 1x8 COMPONENT AUDIO DA How to Connect the 1x8 Component Audio DA to your devices 1- Connect the supplied Component cable from the HDTV device into the Component Input. 2- Connect either a SPDIF digital audio or RCA left and right analog audio cable into the Component Audio Input. -
Page 9: Specifications
SPECIFICATIONS Input ....YPbPr x1 or RGsB x1 (or RGBHV), or composite x3 1 Vp-p@ 75 ohm Output ........... YPbPr x8, or RGsB(or RGBHV) x8, or composite 3x8 Audio input ................Coaxial (SPDIF) x1 + R/L x1 Audio output ................ Coaxial (SPDIF) x8 + R/L x8 Analog audio input/output ............. -
Page 10: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
