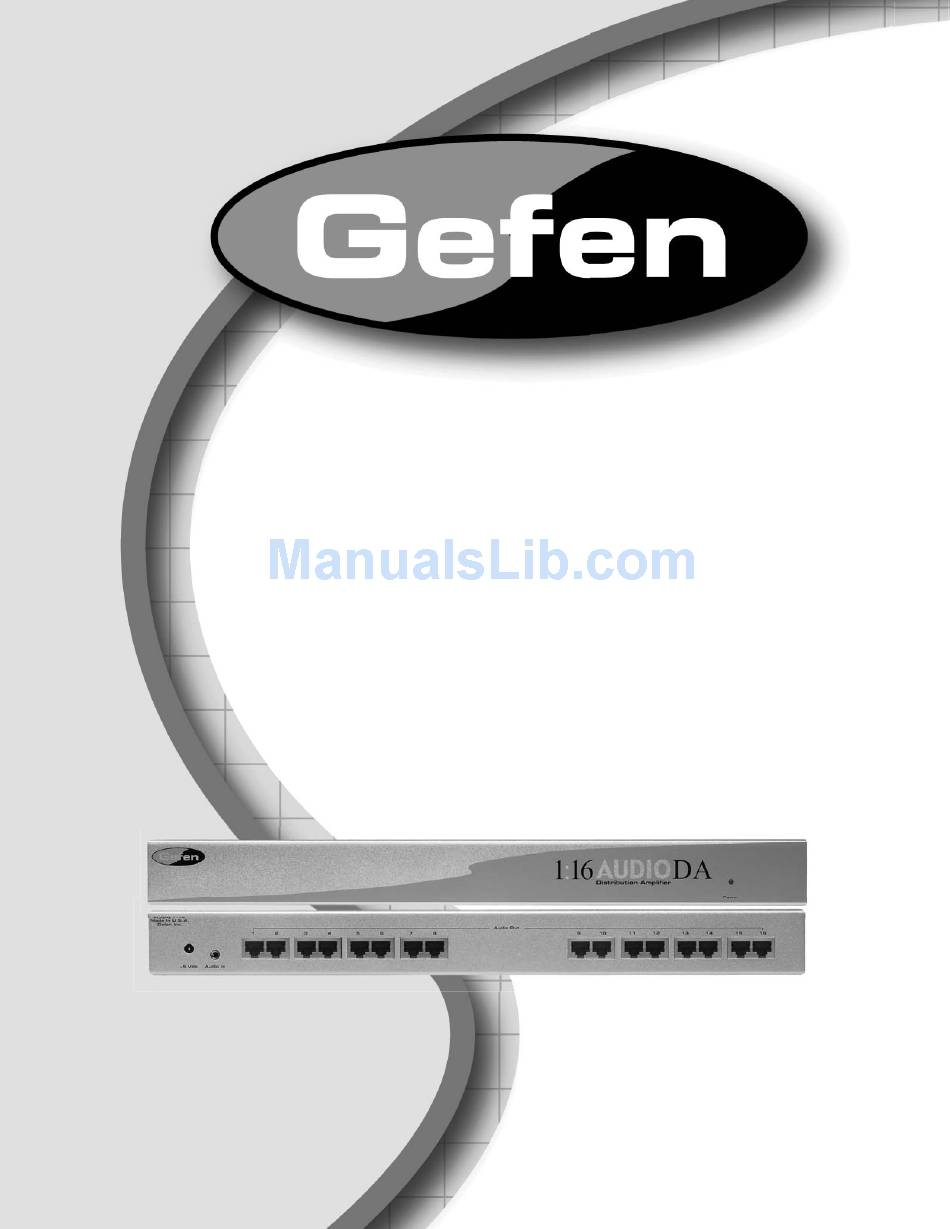

- Page 1 ® 1x16 Audio DA U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 1x16 Audio DA is a trademark of Gefen, LLC Macintosh is a trademark of Apple Computer Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Box Contents How it works Operation Notes 1x16 Audio DA Front Panel Layout 1x16 Audio DA Back Panel Functions Link Cable - Wiring Diagram System Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the ex•tend•it 1x16 Audio DA series. The ex•tend•it 1x16 Audio Distribution DA allows 16 audio locations from the same audio source. The 1x16 Audio Distribution DA also extends the distributed audio to 16 locations up to a 1000 feet away with CAT5. -
Page 5: Box Contents
BOX CONTENTS The 1x16 Audio DA system consists of: (1) 1x16 Audio DA (1) 5 VD power supply (1) 6-ft Audio Cable (1) User Manual... -
Page 6: How It Works
HOW IT WORKS The ex•tend•it 1x16 Audio Distribution unit sits next to your audio source. Stereo cables supplied with the 1x16 Audio Distribution package connects your audio source to the 1x16 Audio Distribution sender. The Audio Extender receiver unit connects to your speakers or audio output device. -
Page 7: Operation Notes
OR OPERATING THE 1X16 AUDIO DA SYSTEM * Industry standard Category-5 (CAT-5) cables are used to link the 1x16 Audio DA and receiver boxes together. * The 1x16 Audio DA units are housed in a metal box for better RF shielding. -
Page 8: 1X16 Audio Da Front Panel Layout

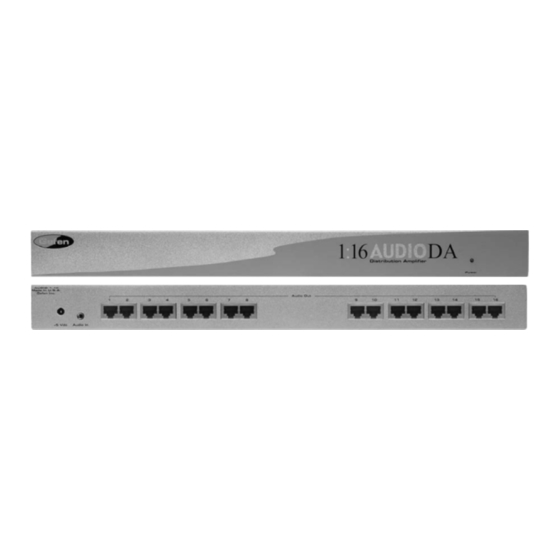

1x16 AUDIO DA FRONT PANEL LAY OUT Front Panel Function Descriptions POWER ON INDICATOR - Indicates that the unit is plugged in and powered on... -
Page 9: 1X16 Audio Da Back Panel Functions
1x16 AUDIO DA BACK PANEL FUNCTIONS POWER - 5V DC external power supply AUDIO - Audio mini Jack input from source Audio Out - RJ-45 connector connects to Audio Extender Receiver units. -
Page 10: Link Cable - Wiring Diagram
LINK CABLE - WIRING DIAGRAM... - Page 11 SPECIFICATIONS Sample Rate ................5 kHz (min) - 48 kHz (max) Frequency Response .................. 20hz - 20khz Interfaces ........1 x audio - line-out/headphones - mini-stereo 3.5mm Dimensions ..................7”H x 17”W x 4.6”D Weight ........................5 lbs...
- Page 14 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
