Gefen 1x4 VGA the Hub User Manual

Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects
in material and workmanship. If equipment fails because of such defects
and Gefen Inc. is notified within one (1) year from the date of shipment,
Gefen Inc. will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or
other abuse or modifications. Equipment that fails under conditions other
than those covered will be repaired at the current price of parts and
labor in effect at the time of the repair. Such repairs are warranted for
ninety (90) days from the day of re-shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty or merchantability or
fitness for any particular purpose, all of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed
to be accurate. However, Gefen Inc. assumes no responsibility for any
inaccuracies that may be contained in this manual. In no event will Gefen
Inc. be liable for direct, indirect, special incidental, or consequential
damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information
contained herein regarding the 1x4 VGA Hub features and specifications
is subject to change without notice.
All Rights Reserved © Copyright 2004 Gefen Inc.
ex•tend•it products
extenders hubs
DVI Repeater
DVI Hub
ADC Repeater
USB•200
DVI•100
USB•400
CAT5•6000
1x4 VGA Hub
CAT5•5000
CAT5•4000
switchers
ADC Switcher
CAT5•3000
4x1 DVI Switcher
CAT5•2000
2x2 DVI Switcher
CAT5•1000
DVI Switcher
USB•100
USB•241
USB•400
USB•500
9
convertors
DVImate
ADC to DVI Adapter
DVI to ADC
Conversion Box
VGA to DVI
Conversion Box
DVI to VGA
Conversion Box
VGA to ADC
Conversion Box
DVI to VGA
Conversion Box
1 0
voice: 818 884-6294
email: gsinfo@gefen.com website: http://www.gefen.com
6265 Variel Avenue Woodland Hills, CA 91367
fax: 818 884-3108
Congratulations
on your purchase of the ex tend
•
Your complete satisfaction is very important to us.
Gefen's line of KVM (Keyboard Video & Mouse), DVI, ADC, USB, VGA,
switches, extenders, converters and hubs is designed to make computer use
more comfortable, more productive and less expensive.
KVM switches allow access to multiple computers from a single keyboard,
while the extenders give the user control over a computer up to 330 feet
away from the work area.
The ex tend it line offers solutions for noise, space and security concerns,
• •
data center control, information distribution, conference room presentation,
and school and corporate training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price.
Included in that price is a lifetime of free support from a team of outstanding
engineers.
Introduction

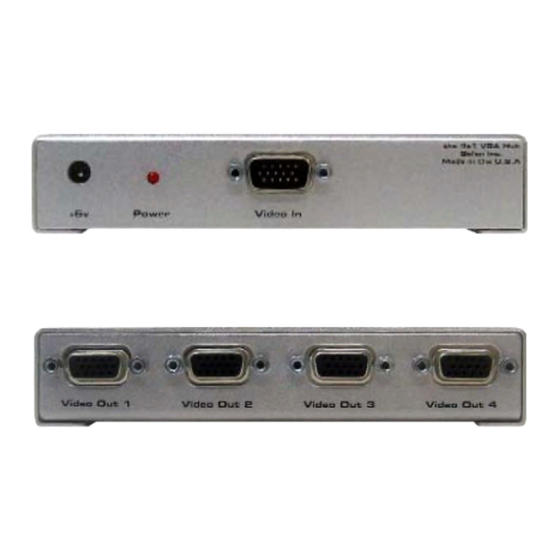

The ex tend it 1x4 VGA Hub allows computers with VGA graphic cards
• •
to be connected to four VGA compatible monitors or projectors.
The 1x4 VGA Hub enables you to keep your VGA monitor next to your
computer, while adding a additional VGA display or a projector.
it 1x4 VGA Hub.
•
