- Page 1 1x4 AUDIO DA U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The 1x4 Audio DA is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Box Contents How it works Operation Notes 1x4 Audio DA Front Panel Layout 1x4 Audio DA Back Panel Functions Link Cable - Wiring Diagram System Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the new ex•tend•it 1x4 Audio DA series. The ex•tend•it 1x4 Audio Distribution DA allows 8 audio locations from the same audio source. The 1x4 Audio Distribution DA also extends the distributed audio to 4 locations up to a 1000 feet away with CAT5. -
Page 5: Box Contents
BOX CONTENTS The 1x4 Audio DA system consists of: (1) 1x4 Audio DA (1) 5 VDC power supply (1) Audio cable (6 FT) (1) User Manual... -
Page 6: How It Works
The ex•tend•it 1x4 Audio Distribution unit sits next to your audio source. Stereo cables supplied with the 1x4 Audio Distribution package connects your audio source to the 1x4 Audio Distribution sender. The Audio Extender receiver unit connects to your speakers or audio output device. One CAT-5 cable per channel connects the 1x4 Audio Distribution unit and the Audio Extender receive unit to each of the distributed locations - up to 1000 feet away. -
Page 7: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE IN STALL ING OR OPERATING THE 1X4 AUDIO DA SYSTEM * Industry standard Category-5 (CAT-5) cables are used to link the 1x4 Audio DA and receiver boxes together. * The 1x4 Audio DA units are housed in a metal box for better RF shielding. -
Page 8: 1X4 Audio Da Front Panel Layout

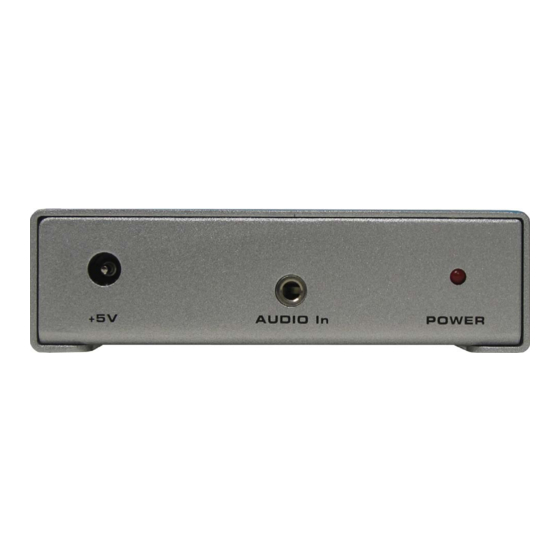

1x4 AUDIO DA FRONT PANEL LAY OUT Front Panel Function Descriptions +5V - Connects to 5VDC power supply AUDIO IN - Indicates that the unit is plugged in and powered on POWER ON INDICATOR - Indicates that the unit is plugged in and powered on... -
Page 9: 1X4 Audio Da Back Panel Functions
1x4 AUDIO DA BACK PANEL FUNCTIONS POWER - 5 VDC external power supply AUDIO - Audio mini Jack input from source Audio Out - RJ-45 connector connects to Audio Extender Receiver units. -
Page 10: Link Cable - Wiring Diagram
LINK CABLE - WIRING DIAGRAM... - Page 11 SPECIFICATIONS Sample Rate ... 5 kHz (min) - 48 kHz (max) Frequency Response ... 20hz - 20khz Interfaces ... 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm - 1 Dimensions ... 1”H x 4”W x 3.75”D Weight ... 3 lbs...
-
Page 12: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
