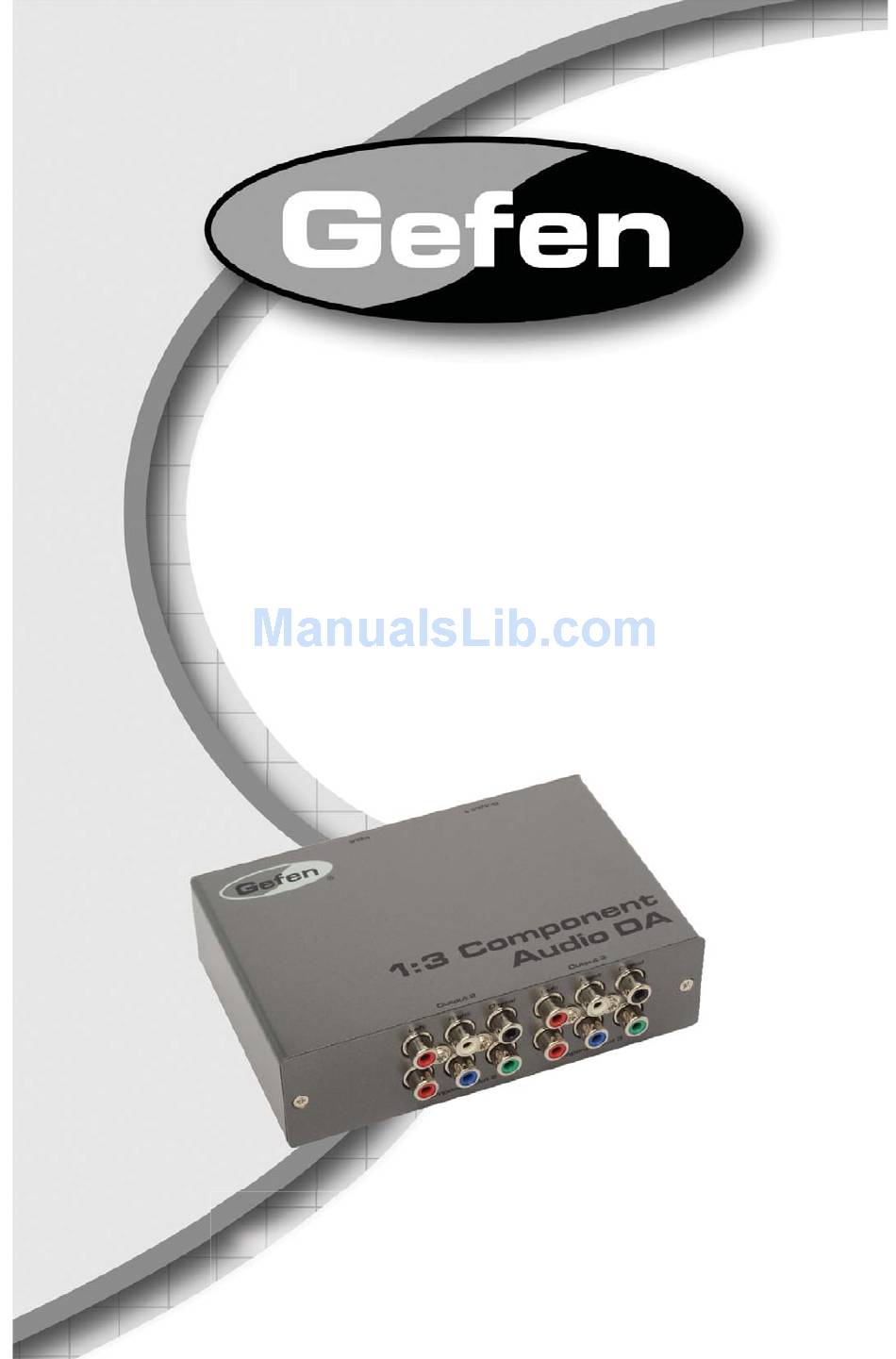

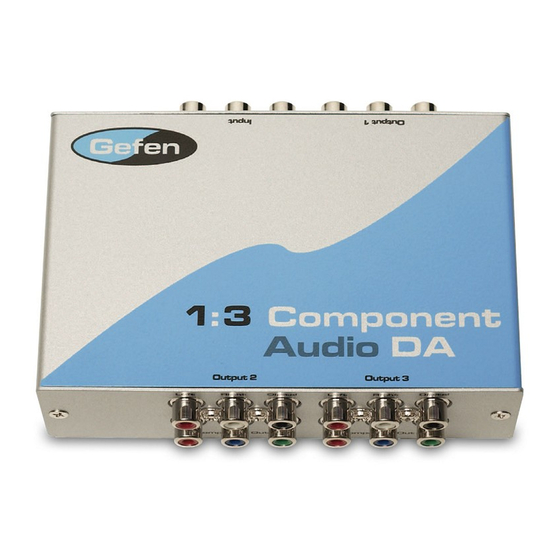

- Page 1 1:3 Component Audio Distribution Amplifier EXT-COMPAUD-143 USER’S MANUAL www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:3 Component Audio DA is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Features Panel Layout Panel Descriptions Connecting And Operating The 1:3 Component Audio DA Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction
Congratulations on your purchase of the 1:3 Component Audio DA. Your com- plete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Features
FEATURES Features • Connects up to three component displays at the same time to one video source • Support SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal • Maintains 480p, 720p, 1080i, and 1080p resolutions • Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved video source at the same time Package Includes (1) 1:3 Component Audio DA... -
Page 6: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Component 2 Audio Output Analog stereo L/R RCA audio outputs and one digital coaxial audio output. These outputs will mirror the inputs connected to the Component audio inputs. Component 3 Audio Output Analog stereo L/R RCA audio outputs and one digital coaxial audio output. These outputs will mirror the inputs connected to the Component audio inputs. -
Page 8: Connecting And Operating The 1:3 Component Audio Da
CONNECTING AND OPERATING THE 1:3 COMPONENT AUDIO DA How to Connect the 1:3 Component Audio DA Connect the supplied Component cable from the source into the 1:3 Component Audio DA’s input port. Connect either a SPDIF digital audio or RCA analog right and left audio cable into the 1:3 Component Audio DA’s audio input port. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Specifi Cations
SPECIFICATIONS Input ..YPbPr x1 or RGsB x1 (or RGBHV), or Composite x 1 (1 Vp-p@ 75 Ohm) Output .......... YPbPr x3, or RGsB(or RGBHV), or Composite x 3 Audio input ................Digital (SPDIF) x1 + R/L x1 Audio output ................Digital (SPDIF) x3 + R/L x3 Analog audio input/output .......... -
Page 11: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 Rev A3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
