PAPER FEED AND TRANSPORT

26 July 2002

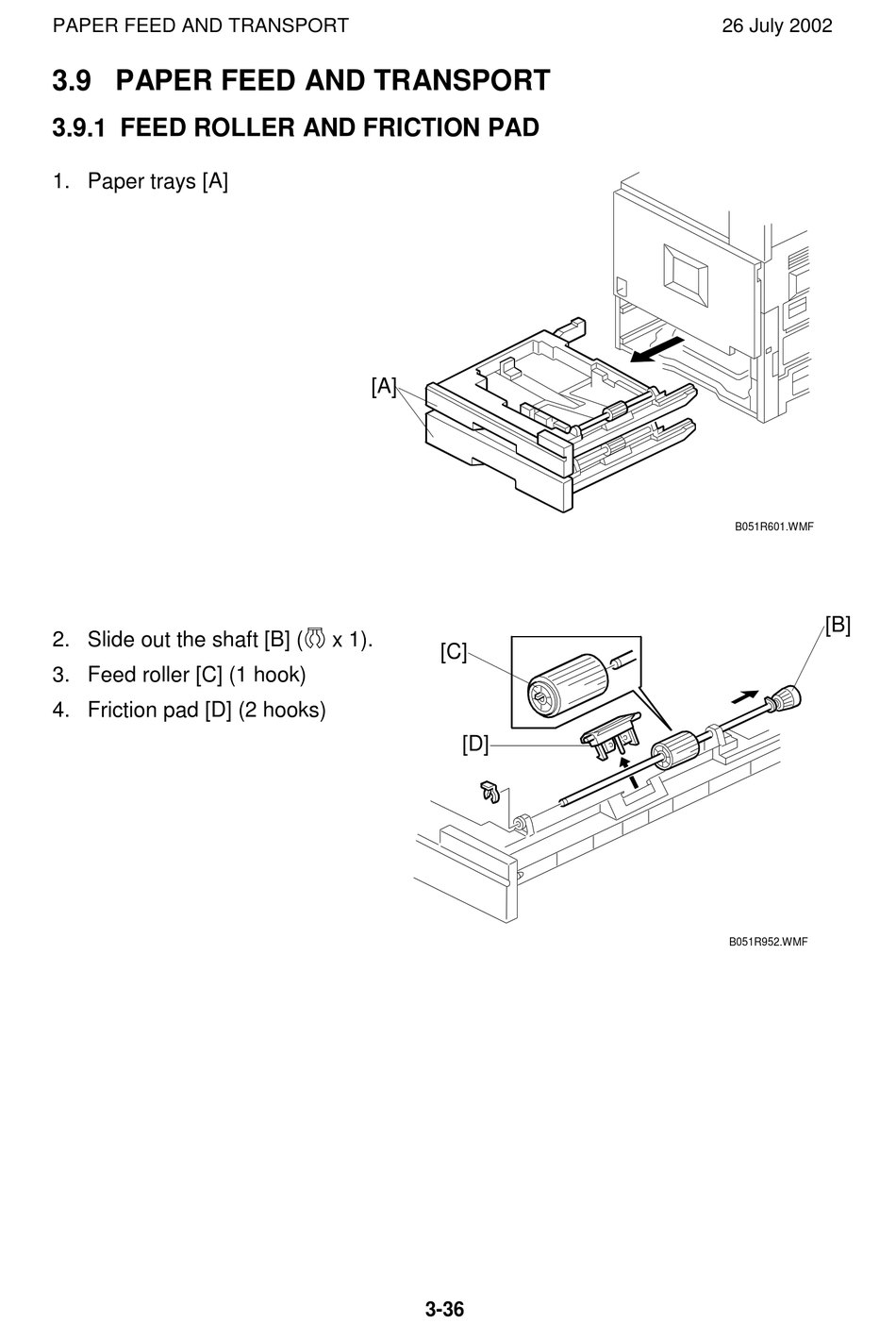

3.9 PAPER FEED AND TRANSPORT

3.9.1 FEED ROLLER AND FRICTION PAD

1. Paper trays [A]
[A]
B051R601.WMF
[B]
2. Slide out the shaft [B] (# x 1).
[C]
3. Feed roller [C] (1 hook)
4. Friction pad [D] (2 hooks)
[D]
B051R952.WMF
