Fuel Sender Locations; Engine Primer System Placard - Piper ARROW III Service Manual

PA-28R-201
S/N: 28R-7737002 to 28R-7737161 inclusive
PA-28R-201T
S/N: 28R-7703001 to 28R-7703380 inclusive
PA-28R-201
S/N: 28R-7737162 and up
PA-28R-201T
S/N: 28R-7703381 and up
Note:
Fuel quantity sender Piper P/N: 550 504 requires fiber washer insulators. Refer to Figure 9-3, View B-B.
Revised: 2/13/89
CHEROKEE ARROW III SERVICE MANUAL
TABLE IX-I. FUEL SENDER LOCATIONS

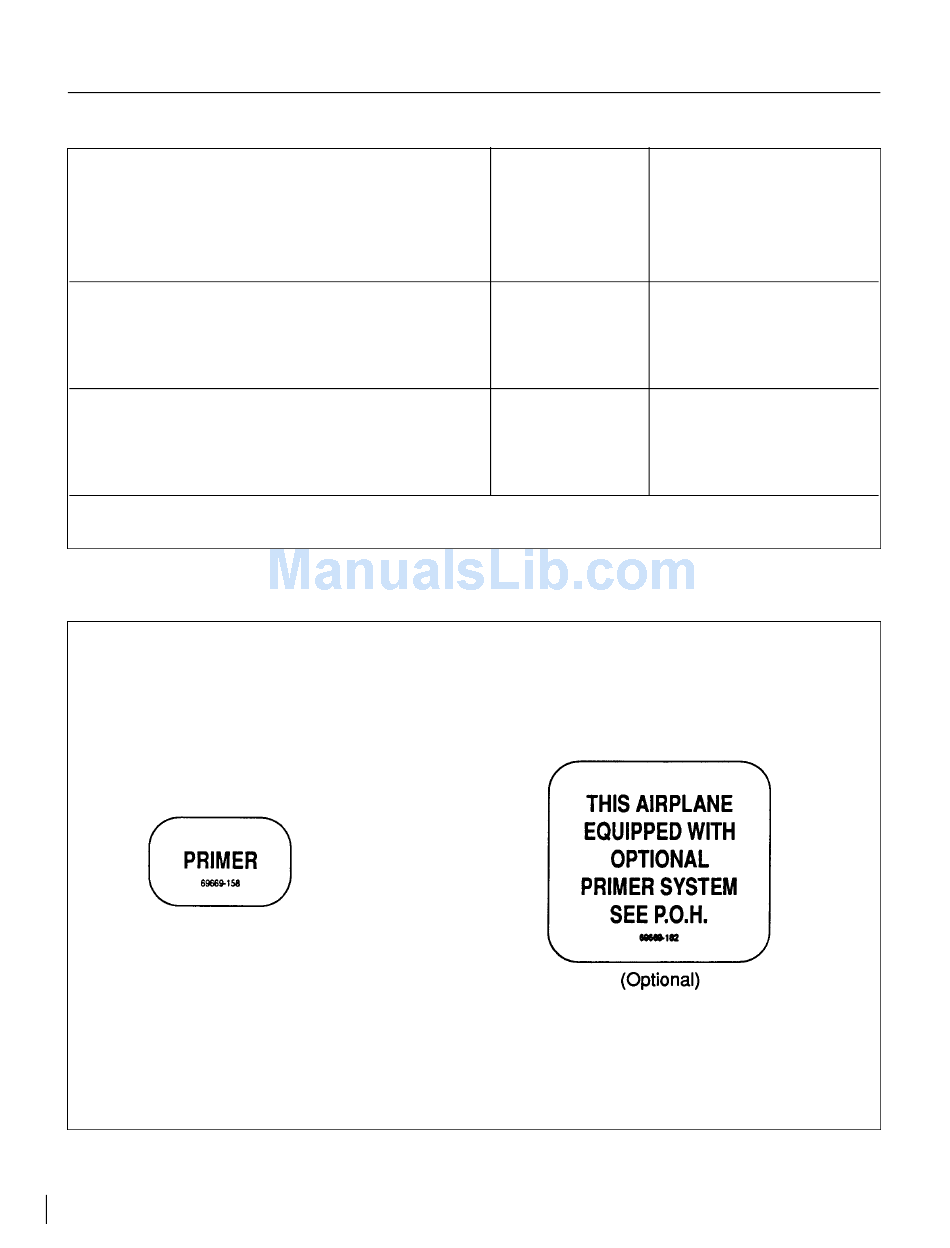

Figure 9-4. Engine Primer System Placard (PA-28R-201T)
Piper P/N:
550 504
Rochester P/N:
774041
See Note
Inboard
Outboard
2E16
Piper P/N:
550 503
Rochester P/N:
7740-40
Outboard
Inboard
FUEL SYSTEM
