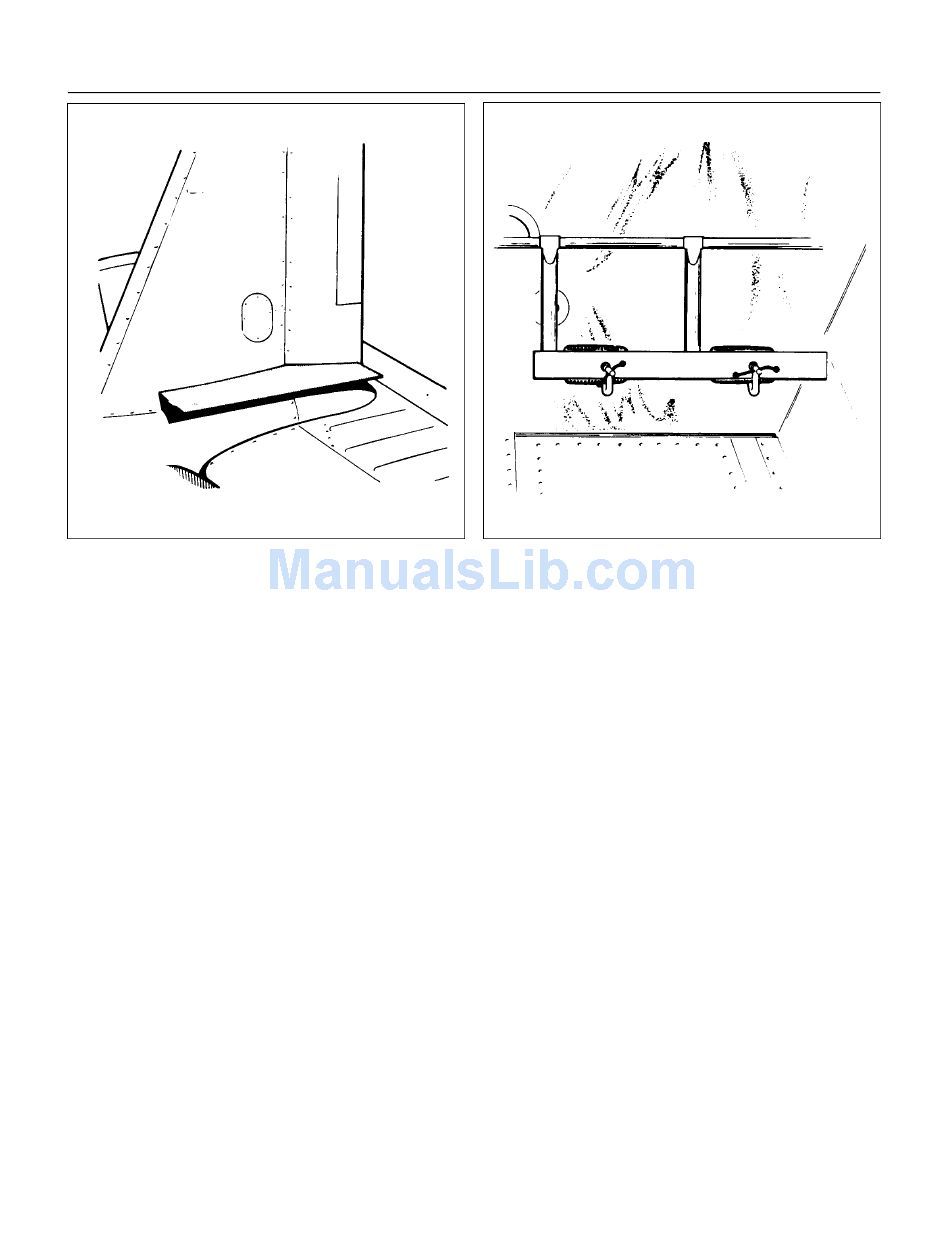

Figure 5-11. Rudder Rigging Tool
5-26. RUDDER CONTROLS.
5-27. REMOVAL OF RUDDER CONTROL CABLES. (Refer to Figure 5-10.)
a. To remove either the forward ( 10 or 11) or aft (14 or 15) rudder cables, first remove the access panel
to the aft section of the fuselage.
b. Disconnect the desired cable at the turnbuckle (12 or 13) in the aft section of the fuselage.
c. Either forward rudder cable may be removed by the following procedure:
1. Remove the rear seat floor panel and the front seats.
2. Remove the cable guard pin (7) from the underside of the pulley cluster (9) that is located in the
aft area of the flap torque tube.
3. From within the area aft of the main spar, remove the cable rub blocks (6) that are attached to the
spar housing by removing the block attaching screws.
4. Remove the rudder trim knob and the cover attaching screws.
5. Remove the tunnel plate just aft of the tee bar by removing enough carpet from the tunnel to allow
the plate attaching screws and the plate to be removed.
6. Move the cable guard pin (4) located under the pulley cluster (5) just aft of the tee bar by
removing the cotter pin from the exposed end and sliding it to the left or right, as required.
7. Disconnect the end of the cable from the arm on the rudder pedal torque tube by removing the
cotter pin, nut, washer and bolt (2).
8. Draw the cable from the floor tunnel.
d. The aft rudder control cables may be removed by the following procedure:
1. Remove the tail cone fairing by removing its attaching screws.
2. Disconnect the cable (14 or 15) from the rudder horn (17) by removing cotter pin, nut, washer and
bolt (16).
3. Draw the cable through the fuselage.
Issued: 12/15/76
* CHEROKEE ARROW III SERVICE MANUAL
Figure 5-12. Clamping Rudder Pedals
1G8
SURFACE CONTROLS
