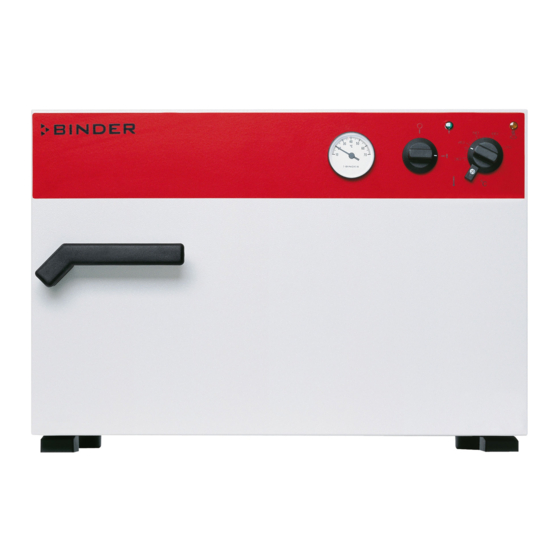

Binder E 28 Operating Manual

Incubators with mechanical adjustment. drying and heating ovens with mechanical adjustment.
Hide thumbs Also See for E 28:
Table of Contents

Advertisement

Quick Links

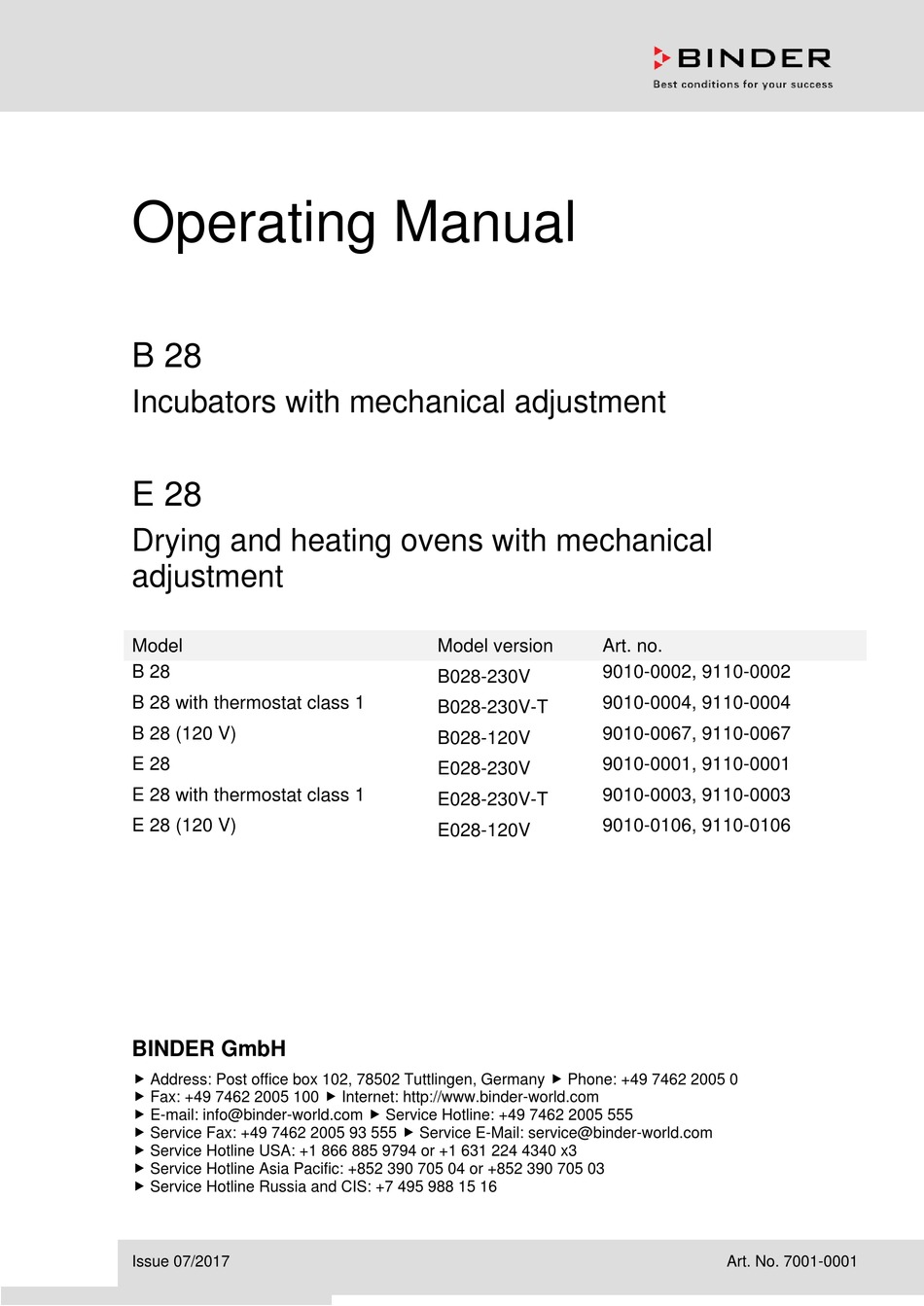

Operating Manual
B 28
Incubators with mechanical adjustment
E 28
Drying and heating ovens with mechanical
adjustment
Model
B 28
B 28 with thermostat class 1
B 28 (120 V)
E 28
E 28 with thermostat class 1
E 28 (120 V)
BINDER GmbH
 Address: Post office box 102, 78502 Tuttlingen, Germany  Phone: +49 7462 2005 0
 Fax: +49 7462 2005 100  Internet: http://www.binder-world.com
 E-mail: info@binder-world.com  Service Hotline: +49 7462 2005 555
 Service Fax: +49 7462 2005 93 555  Service E-Mail: service@binder-world.com
 Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3
 Service Hotline Asia Pacific: +852 390 705 04 or +852 390 705 03
 Service Hotline Russia and CIS: +7 495 988 15 16
Issue 07/2017
Model version
Art. no.
9010-0002, 9110-0002
B028-230V
9010-0004, 9110-0004
B028-230V-T
9010-0067, 9110-0067
B028-120V
9010-0001, 9110-0001
E028-230V
9010-0003, 9110-0003
E028-230V-T
9010-0106, 9110-0106
E028-120V
Art. No. 7001-0001
