Page 1: User Manual

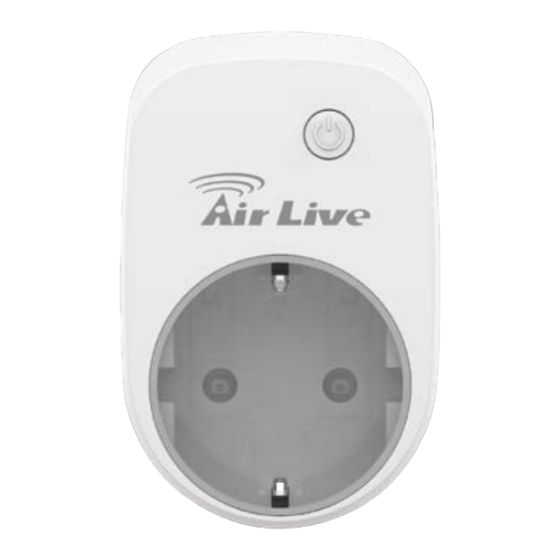

SP-101 Smart energy plug in switch User Manual... - Page 2 Please use with caution. All information is subject to change without notice This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com and go to the "Support->GPL" menu to download source code.
- Page 3 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. AirLive SPI-101 User Manual...
-
Page 4: Table Of Contents
1. Overview ....................1 1.1 Adding to Z-WaveTM Network ............1 1.2 LED Indication ................... 3 1.3 Choosing a Suitable Location ............3 1.4 Installation ..................3 1.5 Programming ..................4 1.6 Troubleshooting ................10 1.7 Specifications ..................11 AirLive SP-101 User Manual... -
Page 5: Overview
When first power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies that it has not been assigned a node ID and start auto inclusion. AirLive SP-101 User Manual... - Page 6 5 seconds. IDs are excluded. LED 0.5s On, 0.5s Off (Enter auto inclusion) Association 1. The Plug is an always listening Z-Wave device, so associations may be added or removed by a controller at any time. AirLive SP-101 User Manual...
-
Page 7: Led Indication
After putting it into use, the body of Switch will become a little bit hot of which phenomenon is normal. 1.4 Installation Plug this On/Off Switch into a wall outlet near the load to be controlled. AirLive SP-101 User Manual... -
Page 8: Programming
The Switch can be set to send reports to associated Z-Wave devices. It supports one association group with one node support for Grouping 1. For group 1, the Switch will report its latest status to Z-Wave Controller. Grouping 1 includes, SWITCH_BINARY_REPORT, METER_REPORT, ALARM_REPORT. AirLive SP-101 User Manual... - Page 9 [Command Class Meter，Meter Report，Rate Type = 0x01，Meter Type =0x01， Precision = 1，Scale = 0x02，Size = 4，Meter Value(W) ] Example: Meter Value 1 = 0x00 (W) Meter Value 2 = 0x00 (W) Meter Value 3 = 0x03 (W) AirLive SP-101 User Manual...
- Page 10 Scale = 0x04 (V) Precision = 1 Size = 2 (2 Bytes of V) Meter Value 1 = 0x09(V) Meter Value 2 = 0x01(V) AC load Voltage = (Meter Value 1*256) + (Meter Value 2) = 230.5 (V) AirLive SP-101 User Manual...
- Page 11 Watt Meter 0x01- 720*5s=3600s=1 Report Period 0x7FFF hour KWH Meter 0x01- 10min 6*10min=1 hour Report Period 0x7FFF Threshold of 10-1100 0.01A 1100 1100*0.01A = current for Load caution Threshold of 1-10000 1KWh 10000 KWh for Load AirLive SP-101 User Manual...
- Page 12 10000 kWh. 1.5.3.5. Restore switch state mode Whenever the AC power return from lost, Plug will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE. AirLive SP-101 User Manual...
- Page 13 After being set to “Protection by sequence” state, any intentional pressing of On/Off button should be hold longer than 1 second, or the switch state will not change. However, the operation of learn function does not change, because learning will not be protected. AirLive SP-101 User Manual...
-
Page 14: Troubleshooting
Same frequency 2. Wait for a while to re-try Detector cannot control the interference Switch LED keep flashing, but Overload occurs Remove the load attached cannot control or check max. load cannot exceed 12A (Resistive load) AirLive SP-101 User Manual... -
Page 15: Specifications
0°C ~ 40°C Frequency Range 868.40MHz & 869.85MHz/ EU 908.4MHz & 916.0MHz/ USA ** Specifications are subject to change and improvement without notice. OvisLink Corp., http://www.airlive.com/ TEL: +886 2 2218 6888 FAX: +886 2 2918 6988 AirLive SP-101 User Manual...
