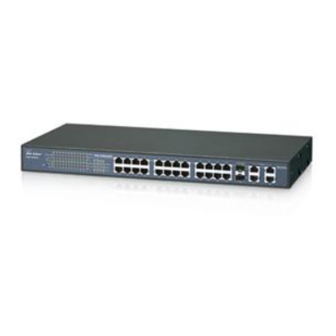

24+4-port web smart poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
POE-FSH2442G
24+4-port Web Smart PoE Switch
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-FSH2442G and is the answer not in the manual?

Questions and answers

Related Manuals for AirLive POE-FSH2442G

Summary of Contents for AirLive POE-FSH2442G

  • Page 1 POE-FSH2442G 24+4-port Web Smart PoE Switch User’s Manual...

  • Page 2: Declaration Of Conformity

    5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product 24+4-port Web Smart PoE Switch AirLive POE-FSH2442G is in conformity with In accordance with 2004/108 EEC-EMC Directive and 1999/5 EC-R & TTE Directive Clause Description ■...
  • Page 3 1999/5/EY oleellisten vaatimusten ja sitä koskevien pertinenti stabilite dalla direttiva 1999/5/CE. direktiivin muiden ehtojen mukainen Ar šo OvisLink Corp. deklarē, ka AirLive Hér með lýsir OvisLink Corp yfir því að AirLive Latviski [Latvian] POE-FSH2442G atbilst Direktīvas 1999/5/EK Íslenska [Icelandic] POE-FSH2442G er í samræmi við grunnkröfur og būtiskajām prasībām un citiem ar to saistītajiem...

  • Page 4: Fcc Warning

    COPYRIGHT ©2005/2006 by this company. Copyright All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular...
  • Page 5 UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 6: Table Of Contents

    CONTENT Chapter 1: About This Guide ..........................1 Purpose ................................1 Terms/Usage ..............................1 Chapter 2: Introduction ............................2 Gigabit Ethernet Technology........................2 Fast Ethernet Technology ........................... 2 Switching Technology ..........................2 VLAN (Virtual Local Area Network) ......................3 Power over Ethernet (PoE) .......................... 3 Features................................
  • Page 7 6.11.5 Statistic ..............................23 6.11.6 Factory Reset............................23 6.11.7 Backup Setting............................23 6.11.8 Firmware Upload ............................ 24 6.11.9 System Reboot ............................24 6.12 Logout................................. 24 Chapter 7: Technical Specifications........................ 25 AirLive PoE-FSH2442 User’s Manual...

  • Page 8: Chapter 1: About This Guide

    Purpose This guide discusses how to install your POE-FSH2442G. Terms Usage In this guide, the term “Switch” (first letter upper case) refers to your POE-FSH2442G, and “switch” (first letter lower case) refers to other Ethernet switches. AirLive PoE-FSH2442 User’s Manual...

  • Page 9: Chapter 2: Introduction

    Chapter 2: INTRODUCTION This chapter describes the features of the POE-FSH2442G and some background information about Ethernet/Fast Ethernet/Gigabit Ethernet switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in theoretical throughput over 100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps Ethernet.

  • Page 10: Vlan (Virtual Local Area Network)

    Supports IEEE 802.1p Priority Queues Supports Static Port Trunk Supports Broadcast Storm Control Supports Port Mirroring Supports Port Setting for Speed Easy configuration via WEB Browser Easy setting via Web Management Utility Standard 19” Rack-mount size AirLive PoE-FSH2442 User’s Manual...

  • Page 11: Chapter 3: Unpacking And Installation

    UNPACKING AND INSTALLATION This chapter provides unpacking and installation information for the Switch. Unpacking Open the giftbox of the POE-FSH2442G and carefully unpacks its contents. The packing content should contain the following items: One 24+4-Port 10/100Mbps Ethernet Web Smart PoE Switch One AC power cord, suitable for your area’s electrical power connections...

  • Page 12: Connecting Network Cable

    AC power connector and the system fan. The switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected. AirLive PoE-FSH2442 User’s Manual...

  • Page 13: Chapter 4: Identifying External Components

    Note: Be sure that you recorded the setting of your device, else all the setting will be erased when pressing the “Reset” button. Rear Panel The rear panel of the Switch consists of an AC power connector and Reset button. The following shows the rear panel of the Switch. Figure 5. Rear panel AirLive PoE-FSH2442 User’s Manual...
  • Page 14 This is a three-pronged connector that supports the power cord. Plug in the female connector of the provided power cord into this connector, and the male into a power outlet. Supported input voltages range from 100- 240V AC at 50-60Hz. AirLive PoE-FSH2442 User’s Manual...

  • Page 15: Chapter 5: Understanding Led Indicators

    Works on 10Mbps ● Green Works on 1000Mbps 1000Mbps Works on 10Mbps or 100Mbps ● Green Port is inserted Mini-GBIC module mini-GBIC No Mini-GBIC module inserted 1000BASE-TX Port (port 27~28) ● Orange Port is connected Link/Act Blinking Transmitting/Receiving AirLive PoE-FSH2442 User’s Manual...
  • Page 16 Port is connected ● Green Works on 100Mbps 100Mbps Works on 10Mbps ● Green Works on 1000Mbps 1000Mbps Works on 10Mbps or 100Mbps AirLive PoE-FSH2442 User’s Manual...

  • Page 17: Chapter 6: Configuration

    The following gives instructions guiding you through the installations of the Web Management utility. 1. Insert the CD shipped along with POE-FSH2442G into your CD-Rom Drive. The Autorun.exe program should be executed automatically. If not, please run Autorun.exe manually from CD-ROM drive’s root directory.

  • Page 18: Monitor List

    Trap Setting Menu (see Page 22 for detail). Add Item: To add a device to the Monitor List manually, enter the IP Address of the device that you want to monitor. AirLive PoE-FSH2442 User’s Manual...

  • Page 19: Device Setting

    DHCP Refresh: Press this “DHCP Refresh” button to refresh IP address of selected device form DHCP server. Toolbar The toolbar in the Web Management Utility have four main tabs, File, View, Options and Help. In the “File TAB”, there are Monitor Save, Monitor Save As, Monitor Load and Exit. AirLive PoE-FSH2442 User’s Manual...
  • Page 20 Choose 15 secs, 30 secs, 1 min, 2 min and 5 min to select the time of monitoring. In the “Help TAB”, there is About function, it will show out the version of the Web Management Utility. AirLive PoE-FSH2442 User’s Manual...

  • Page 21: Configuring The Switch

    Configuring the Switch The POE-FSH2442G has a Web GUI interface for smart switch configuration. The Switch can be configured through the Web Browser. A network administrator can manage, control and monitor the switch from the local LAN. This section indicates how to configure the Switch to enable its smart functions.
  • Page 22 Figure 16. Configuration menu AirLive PoE-FSH2442 User’s Manual...

  • Page 23: Configuration Setting

    VLAN without having to change any physical connections. The IEEE 802.1Q VLAN Configuration page provides powerful VID management functions. The original settings have the VID as 01, named “default”, and all 16 ports as “Untagged”. AirLive PoE-FSH2442 User’s Manual...
  • Page 24 Figure 19. Add New VID Delete: Click to delete selected VID. Figure 20. Delete VID To change exist IEEE 802.1Q VLAN setting, press the VID to modify that IEEE 802.1Q VLAN setting. Figure 21. Modify VID Figure 22. Modify VID AirLive PoE-FSH2442 User’s Manual...

  • Page 25: Trunk Setting

    IEEE 802.1p Default Priority This feature displays the status Quality of Service priority levels of each port, and for packets that are untagged, the switch will assign the priority in the tag depending on your configuration. AirLive PoE-FSH2442 User’s Manual...
  • Page 26 Figure 25. IEEE 802.1p Default Priority Setting AirLive PoE-FSH2442 User’s Manual...

  • Page 27: Poe Setting

    Setting, the Switch will send trap events to the Management Station. Note: When the system power is shortage with the PD, the Switch will enforce the PoE port priority management, the lower port number will have the higher priority than the higher port number, Port 1 AirLive PoE-FSH2442 User’s Manual...

  • Page 28: Broadcast Storm Control Setting

    Web Management Utility and in other Web-Smart devices on the LAN. The Login Timeout controls the idle time-out for security purposes, when there is no action in the Web-based Utility. When the Login Timeout expires, the Web based Utility requires a re-login before using the Utility again. AirLive PoE-FSH2442 User’s Manual...

  • Page 29: Trap Setting

    Link Up/Link Down: a trap when there is linking status happens in 1000BASE-T connection. PoE Events: Monitoring the PoE ports status. PoE Power fail: a trap when the port’s power source fails or the POE-FSH2442G fails. Power on/Power off: a trap when the PoE port’s power is on and down.

  • Page 30: Statistic

    The backup setting helps you to backup the current setting of the Switch. Once you need to backup the setting, press the “Backup” button to save the setting. To restore a current setting file to the device, you must specify the backup file and press “Restore” button to AirLive PoE-FSH2442 User’s Manual...

  • Page 31: Firmware Upload

    Provide a safe way to reboot the system. Please ensure the configuration has been saved, or all the changes you just made may be lost after system reboot. Figure 38. System Reboot 6.12 Logout When pressing this function, the web configuration will go back to Login page. Figure 39. Logout AirLive PoE-FSH2442 User’s Manual...

  • Page 32: Chapter 7: Technical Specifications

    196.5 watts (max. for up to 11 PoE Device connected) Protocol CSMA/CD Topology Star Ethernet 10Mbps (Half-duplex) 20Mbps (Full-duplex) Network Data Fast Ethernet Transfer Rate 100Mbps (Half-duplex) 200Mbps (Full-duplex) Gigabit Ethernet 2000Mbps (Full-duplex) Bandwidth 12.8 Gbps Buffer memory 128KBytes AirLive PoE-FSH2442 User’s Manual...
  • Page 33 100 - 240VAC 50/60Hz, Internal Universal Switching Power Operating: 0 to 40°C Temperature Storage: -10 to 70°C Operating: 10% ~ 90% Humidity Storage: 5% ~ 90% CE Class A Emission FCC Part 15 Class A VCCI-A cUL (UL 60950) Safety CB(IEC 60950) AirLive PoE-FSH2442 User’s Manual...
