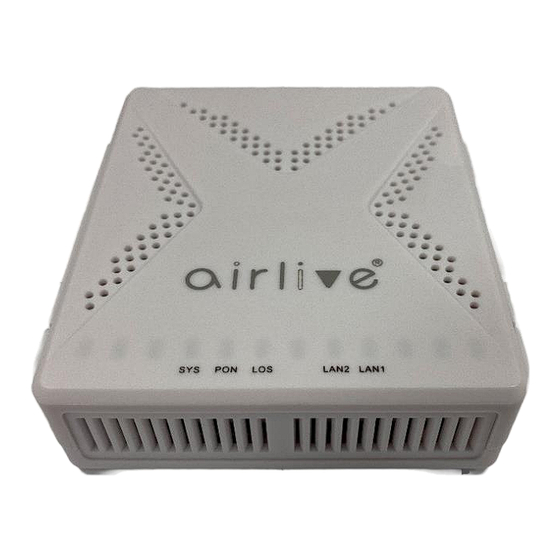

AirLive 2.5GE XPON ONU
&
AirLive XPON ONU-1GE
USER MANUAL

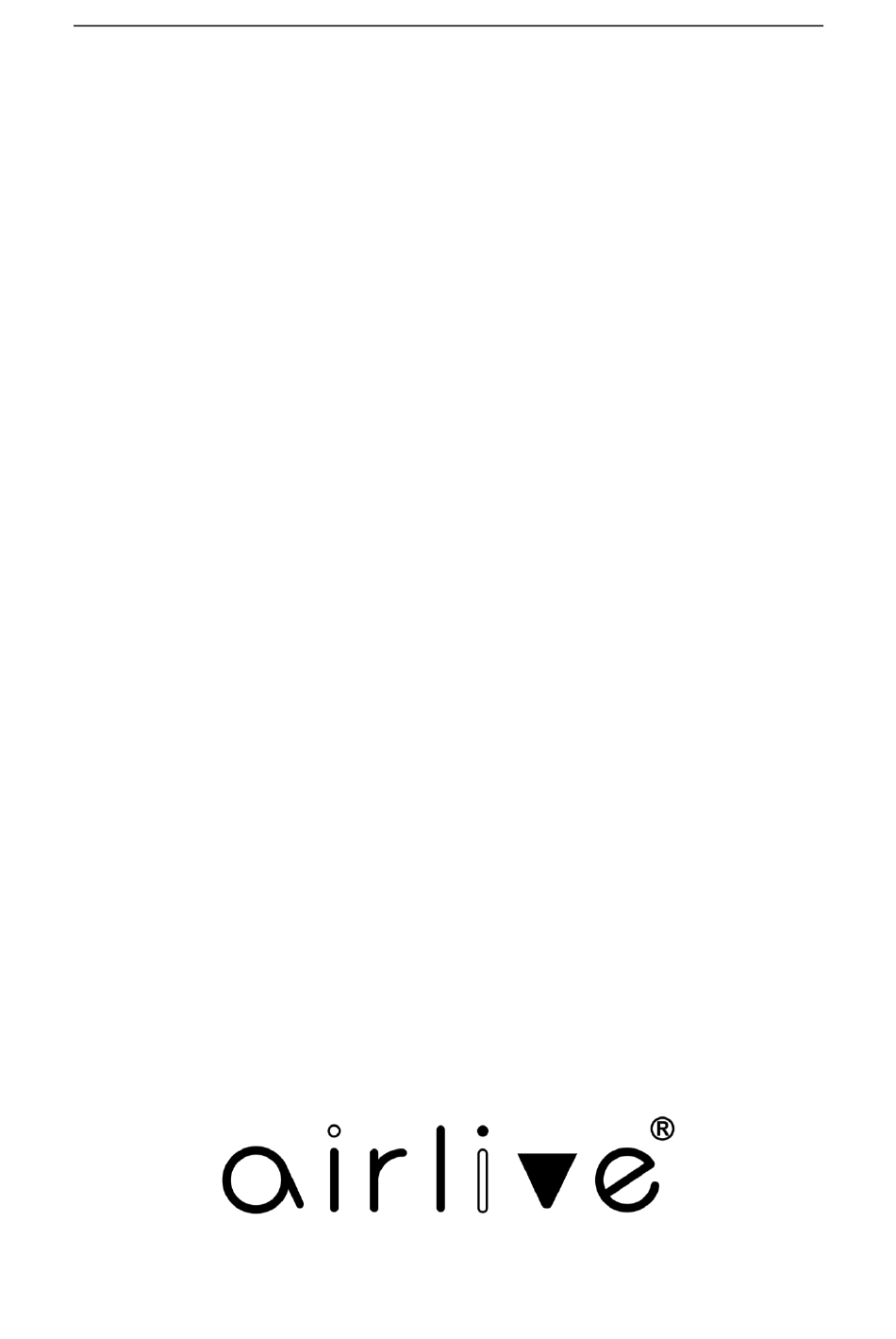

Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.5GE XPON ONU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AirLive 2.5GE XPON ONU

Summary of Contents for AirLive 2.5GE XPON ONU

  • Page 1 AirLive 2.5GE XPON ONU & AirLive XPON ONU-1GE USER MANUAL Page I...

  • Page 2: Table Of Contents

    Contents Chapter 1 Product Introduction ..................... 1 1.1 Product Description...................... 1 1.2 Special features ......................1 1.3 Technical Parameter....................2 1.4 Application chart ......................3 1.5 Panel description ......................3 Chapter 2 Quick Installation ....................6 2.1 Standard Packing Contents ..................6 2.2 Quick Installation ......................
  • Page 3 3.5.2 UPnP ........................23 3.6 Firewall ......................... 23 3.6.1 MAC Filtering ......................23 3.6.2 IP/Port Filtering ...................... 24 3.6.3 URL Filter ........................ 25 3.6.4 ACL .......................... 26 3.6.5 DOS Setting ......................28 3.8 Maintenance ....................... 29 3.8.1 Update ........................29 3.8.2 Password.........................

  • Page 4: Chapter 1 Product Introduction

    Chapter 1 Product Introduction 1.1 Product Description The AirLive 2.5GE XPON ONU (1*2.5GE+1GE) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. It is based on mature XPON technology, high reliability, easy maintenance, and can provide QoS guarantee for different services.

  • Page 5: Technical Parameter

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 1.3 Technical Parameter Technical items Descriptions 1 G/EPON port (EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm PON interface Transmitting optical power: 0~+4dBm Transmission distance: 20KM Wavelength Tx1310nm, Rx 1490nm...

  • Page 6: Application Chart

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 1.4 Application chart Figure 1-2: Application chart (left 2.5GE model, right 1GE model) 1.5 Panel description Interface/Button panel 2.5GE XPON ONU Figure 1-3: Interface/Button panel Name Function 1: PON Connect to OLT by SC type fiber connector, single mode optical fiber cable.
  • Page 7 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Indication Panel 2.5GE XPON ONU Figure 1-4: Indication panel Mark Status Description On / Off System is not running or fatal error. System Blink Normal running. The device is registered to the PON system.
  • Page 8 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Indication Panel XPON ONU-1GE Figure 1-4: Indication panel Mark Status Description Port is connected properly (LINK). Interface LINK/ACT Port connection exception or not connected. Blink Port is sending or/and receiving data (ACT).

  • Page 9: Chapter 2 Quick Installation

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Chapter 2 Quick Installation 2.1 Standard Packing Contents When you receive your product, please check carefully to make sure that the product does not have any defects. If something is wrong with shipping, please contact carrier; other damage or lack of some parts, please contact with dealer.
  • Page 10 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual optical fiber. Please refer to the Layout Description section of this installation manual for normal LED activity. 4. Check all signal levels and services on all the ONU communication ports. Unit Installation Adjustment Installing the ONU on a horizontal surface (Bench top) Put the ONU on a clean, flat, sturdy bench top.

  • Page 11: Chapter 3 Configuration

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Chapter 3 Configuration **Note** For this guide images of the 2.5GE XPON ONU WEBui were used. After finishing the basic connection configuration, you can use its basic function. In order to satisfy individuation service requirements, this charter provides the user parameter modification and individuation configuration description.

  • Page 12: Status

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual For security, you will be asked to modify password after you logged in by default password. The new password must meet the requirements that are displayed on the web page. After submitting, it requires you to login by new password.

  • Page 13: Statistics

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.2.1.2 PON Status This page shows the current system status of PON. Figure 3-4: PON Status 3.2.2 Statistics This page shows the packet statistics for transmission and reception regarding the network interface.

  • Page 14: Logout

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.2.3 Logout This page is used to logout from the Device. Figure 3-6: Logout 3.3 Setup 3.3.1 WAN 3.3.1.1 WAN Configuration This page is used to configure the parameters for the WAN interface of the ONU.
  • Page 15 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Figure 3-7: WAN Connection 3.3.1.2 PON Settings This page is used to configure the parameters for your EPON network access. Figure 3-8: PON Settings Page 12...

  • Page 16: Lan

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.3.2 LAN 3.3.2.1 LAN Interface Setup This page is used to configure the LAN interface of your Router. Here you may change the setting for IP address, subnet mask, etc... Figure 3-9: LAN Interface Setup 3.3.2.2 DHCP Mode...
  • Page 17 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual Figure 3-10: DHCP Mode 3.3.2.3 DHCP Static This page lists the fixed IP/MAC address on your LAN. The device distributes the number configured to hosts on your network as they request Internet access.
  • Page 18 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.3.2.4 LAN IPv6 Setting This page is used to configurate ipv6 Lan setting. User can set Lan RA server work mode and Lan DHCPv6 server work mode. Figure 3-12: DHCP IPv6 Setting...

  • Page 19: Advanced

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4 Advanced 3.4.1 Route 3.4.1.1 Static Route This page is used to configure the routing information. Here you can add/delete IP routes. Figure 3-13: Routing Configuration 3.4.1.2 IPv6 Static Route This page is used to configure the ipv6 routing information. Here you can add/delete IPv6 routes.

  • Page 20: Nat

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4.2 NAT 3.4.2.1 DMZ A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers.
  • Page 21 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4.2.2 Virtual Server This page allows you to config a virtual server, so others can access the server through the Gateway. Figure 3-16: Virtual Server 3.4.2.3 ALG Setup NAT ALG and Pass-Through configuration...

  • Page 22: Qos

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4.3 QoS 3.4.3.1 QoS This page allows user to set QoS rules. Figure 3-18: QoS Configuration 3.4.3.2 Traffic Shaping Entries in this table are used for traffic control. Figure 3-19: IP QoS Traffic Shaping...

  • Page 23: Cwmp

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4.4 CWMP This page is used to configure the TR-069 CPE. Here you may change the setting for the ACS's parameters. Figure 3-20: TR-069 Configuration MAC Filter Page 20...

  • Page 24: Vlan Mapping

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.4.5 VLAN Mapping This page is used to configure VLAN binding for Lan ports. Figure 3-21: VLAN Binding Configuration 3.4.6 Others This page is used to configure v6inv4 tunnel or v4inv6 tunnel.

  • Page 25: Service

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.5 Service 3.5.1 IGMP 3.5.1.1 IGMP Proxy IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts when you enable it by doing the follows: .

  • Page 26: Upnp

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.5.2 UPnP This page is used to configure UPnP. The system acts as a daemon when you enable UPnP. Figure 3-25: UPnP Configuration 3.6 Firewall 3.6.1 MAC Filtering Entries in this table are used to restrict certain types of data packets from your local network to the Internet through the Gateway.

  • Page 27: Ip/Port Filtering

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.6.2 IP/Port Filtering 3.6.2.1 IP/Port Filtering Entries in this table are used to restrict certain types of data packets from your local network to the Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.

  • Page 28: Url Filter

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.6.2.2 IPv6/Port Filtering Entries in this table are used to restrict certain types of ipv6 data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.

  • Page 29: Acl

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.6.4 ACL 3.6.4.1 ACL You can specify which services are accessible from LAN or WAN side. Entries in this ACL table are used to permit certain types of data packets from your local network or Internet network to the Gateway.
  • Page 30 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.6.4.2 IPv6 ACL You can specify which services are accessible from LAN or WAN side. Entries in this ACL table are used to permit certain types of data packets from your local network or Internet network to the Gateway.

  • Page 31: Dos Setting

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.6.5 DOS Setting A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service. Figure 3-32: DOS Setting Page 28...

  • Page 32: Maintenance

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8 Maintenance 3.8.1 Update 3.8.1.1 Upgrade Firmware This page allows you to upgrade the Router firmware to a new version. Please note, do not power off the device during the upload because it may crash the system.

  • Page 33: Password

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8.2 Password This page is used to add user account to access the web server of ADSL Router. Empty username or password is not allowed. Figure 3-36: User Account Configuration 3.8.3 Reboot/Restore 3.8.3.1 Reboot/Restore...

  • Page 34: Time

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8.3.2 Reset Button Configuration This page is used to configure the reset button state. Figure 3-38: Reset Button Configuration 3.8.4 Time This page is used to configure the system time and Network Time Protocol (NTP) server.

  • Page 35: Log

    AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8.5 Log This page is used to display the system event log table. By checking Error or Notice (or both) will set the log flag. By clicking the ">>|", it will display the newest log information below.
  • Page 36 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8.6.3 TraceRoute Diagnostic Figure 3-43: TraceRoute Diagnostic 3.8.6.4 IPv6 TraceRoute Diagnostic Figure 3-44: IPv6 TraceRoute Diagnostic Page 33...
  • Page 37 AirLive 2.5GE XPON ONU & XPON ONU-1GE User Manual 3.8.6.5 Loop Detection This page is used to configure loop detection parameters. Here you can change the settings or view loop detect status. Figure 3-45: Loop Detection Page 34...
