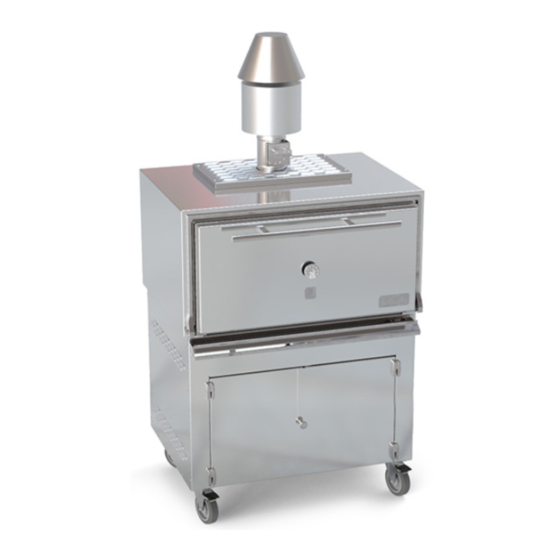

Wood Stone Josper Charcoal Broiler Oven
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Installation and
Operation Manual
modelS
WS-CBO-2628
WS-CBO-3728
WS-CBO-3738
Toll Free (800) 988-8103
Tel (360) 650-1111
Fax (360) 650-1166
www.woodstone-corp.com
Revised February 2010
Advertisement
Table of Contents
Related Manuals for Wood Stone WS-CBO-2628
Summary of Contents for Wood Stone WS-CBO-2628
- Page 1 Installation and Operation Manual modelS SpeCialty ovenS WS-CBO-2628 WS-CBO-3728 Wood Stone Josper Charcoal Broiler Oven WS-CBO-3738 Wood Stone Corporation www.woodstone-corp.com Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Revised February 2010 Bellingham, WA 98226 USA Fax (360) 650-1166...
- Page 2 This page intentionally left blank >...
-
Page 3: Table Of Contents
ContentS Charcoal Oven Installation and Operation Manual TABLE OF CONTENTS WOOD STONE JOSPER OVEN ------------------------------------------------------------------------------- OVEN VENTING ----------------------------------------------------------------------------------------------- INSTALLATION CLEARANCES ------------------------------------------------------------------------------- OVEN PARTS DIAGRAM ------------------------------------------------------------------------------------- ACCESSORIES AND PARTS ---------------------------------------------------------------------------------- WS-JCO-3728 SPECIFICATIONS ---------------------------------------------------------------------------- WS-JCO-3738 SPECIFICATIONS ---------------------------------------------------------------------------- OVEN STARTUP --------------------------------------------------------------------------------------------... -
Page 4: Wood Stone Josper Oven
WOOD STONE JOSPER OVEN Wood Stone JoSper oven Charcoal Oven Installation and Operation Manual INSTALLATION AND OPERATION FOR ThE WOOD STONE jOSPER ChARCOAL BROILER OvEN STONE-FIRED COOKING EQUIPMENT WS-CBO MODELS ADDITIONAL COPIES AvAILABLE UPON REQUEST CAUTION: To RedUce The RiSk oF FiRe, The APPliAnce iS To Be moUnTed on FlooRS oF... - Page 5 Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. Wood Stone's charcoal-Fired oven has been tested and approved by intertek Testing Services. outline of investigation for commercial Wood-Fired Baking ovens - Refractory Type (Ul Subject 2162; issued 08/28/0;...
-
Page 6: Oven Venting
Charcoal Oven Installation and Operation Manual The Wood Stone josper charcoal Broiler oven must be vented using a listed Type 1 exhaust hood, or one constructed and installed in accordance with nFPA 96 and all relevant local and national codes. -
Page 7: Installation Clearances
AccoRdAnce WiTh TheSe inSTRUcTionS. CLEARANCES TO CONSTRUCTION FLOOR: The Wood Stone Josper oven must be installed on a non-combustible floor that extends 36” to the front and 30” to each side of the oven door. SIDES: 18” to combustible materials BACK: 6”... -
Page 8: Oven Parts Diagram
OVEN PARTS DIAGRAM oven partS diaGram Charcoal Oven Installation and Operation Manual Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com... -
Page 9: Accessories And Parts
ACCESSORIES AND PARTS aCCeSSorieS / partS Charcoal Oven Installation and Operation Manual WOOD STONE jOSPER ChARCOAL OvEN ACCESSORIES AND SPARE PARTS Poker* Meat Grill Rack* Cast Iron Grate* Grate / Meat Tongs* Smoke Outlet Vent* Firebreak* Pressure Springs (door)* Sharp Bristle Brush*... -
Page 10: Ws-Jco-3728 Specifications
Charcoal Oven Installation and Operation Manual WC-CBO-3728 Front view Top view Side view Rear view Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com... -
Page 11: Ws-Jco-3738 Specifications
Charcoal Oven Installation and Operation Manual WC-CBO-3738 FRONT vIEW TOP vIEW SIDE vIEW REAR vIEW Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA Fax (360) 650-1166 An ongoing program of product improvement may require us to change Info@woodstone-corp.com or visit www.woodstone-corp.com... -
Page 12: Oven Startup
FIRST LIGhTING: It is very important that the lighting process lasts at least one hour for the first time. SECOND AND SUBSEQUENT LIGhTING: The lighting process should not take longer than 45 minutes. *ThE LIGhTING PROCESS MUST BE CARRIED OUT WIThOUT FOOD INSIDE ThE OvEN Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. - Page 13 LOWER vENT MUST REMAIN ShUT AT ALL TIMES. If smoke is coming out of the oven door (for example, during high production cooking), the upper vent should be opened until the smoke disappears. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd.
-
Page 14: Daily Operation
Close the door and repeat the instructions for oven STARTUP. (See Figure E) BEFORE COOKING AGAIN, BE SURE ThAT ThE FRESh ChARCOAL ADDED hAS BURNED DOWN TO RED EMBERS. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111 Bellingham, WA 98226 USA... -
Page 15: Oven Maintenance
Wood Stone’s Ash dolly. CAUTION: never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or freshen a fire in this oven. -
Page 16: Care And Cleaning
NOTE: never use water to clean the inside of the firebreak. This will prevent the soot from compacting and will prevent smoke from passing through. Wood Stone Corporation Toll Free (800) 988-8103 1801 W. Bakerview Rd. Tel (360) 650-1111... -
Page 17: Safety Considerations
4. Retain the ashes in the closed container until all the cinders have thoroughly cooled. Ashes can then be disposed of safely. NOTE: Wood Stone's stainless steel ash shovel and double compartment ash disposal system offer a safe and convenient way to dispose of ash. -
Page 18: Limited Warranty
LIMITATIONS OF LIABILITY: In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
