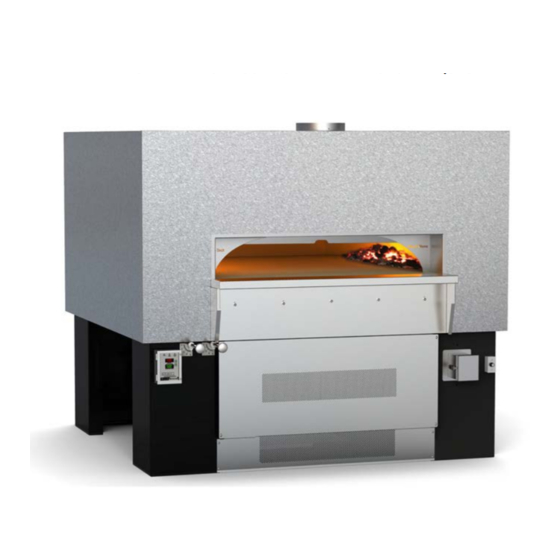

Wood Stone FIRE DECK 9690 Installation And Operation Manual
Stone hearth oven, gas-fired, gas/wood combination
Hide thumbs
Also See for FIRE DECK 9690:
- Installation and operation manual (36 pages) ,
- Service manual (44 pages)
Table of Contents
Advertisement
Quick Links
Installation and
Operation Manual
FIRE DECK SERIES
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination Models
FIRE DECK 9690 WS-FD-9690
FIRE DECK 11275 WS-FD-11275
FIRE DECK 11290 WS-FD-11290
FIRE DECK 90-112 WS-CS-90-112
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0041.09
REVISED OCTOBER 2017
Advertisement
Table of Contents
Related Manuals for Wood Stone FIRE DECK 9690
Summary of Contents for Wood Stone FIRE DECK 9690
- Page 1 Installation and Operation Manual FIRE DECK SERIES Stone Hearth Oven Gas-Fired, Gas/Wood Combination Models FIRE DECK 9690 WS-FD-9690 FIRE DECK 11275 WS-FD-11275 FIRE DECK 11290 WS-FD-11290 FIRE DECK 90-112 WS-CS-90-112 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd.
-
Page 2: Table Of Contents
� � � � � � � � � � � Interlock Diagram � � � � � � � � � � � � Limited Warranty M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. -
Page 3: Fire Deck Series
FIRE DECK SERIES FD-9690, 11275, 11290 and CS-90-112 Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE FIRE DECK STONE HEARTH COOKING EQUIPMENT WS-FD-9690-(RFG)-IR-(W), WS-FD-11275-(RFG)-IR-(W), WS-FD-11290-(RFG)-IR-(W) AND WS-CS-90-112-(RFG)-IR-(W) (BAGEL OVEN) MODELS GAS-FIRED / WOOD-FIRED MODELS ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-FD-9690-RFG-RR-IR IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. -
Page 4: Cautions & Warnings
Contact your local building or fire officials about restrictions and installation inspection in your area. Wood Stone’s Fire Deck Gas-Fired ovens have been tested and approved by Intertek Testing Services, and are ETL Listed to ANSI Z83.11:2016 Ed. 4, CSA 1.8:2016 Ed. 4, UL Subject 2162, ULC-S627-00, UL 737, and to NSF/ANSI 4:2016. -
Page 5: Fd-9690 Specifications
10/11/2013 DWN BY: bena REV: 1 inch FNPT gas inlet 120 VAC, 4 A, 50/60 Hz The Fire Deck 9690 can be direct connected to a power-ventilated, grease- 1 of 1 REV: Bellingham, WA 360/650-1111 www.woodstone-corp.com PART #: 001-5090690-Gas-R SHEET:... -
Page 6: Fd-11275 Specifications
M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL 295,000 BTU, NG TOLL FREE HOUT THE WRITTEN PERMISSION OF WOOD STONE IS 120VAC, 4A 120VAC, 4A 282,500 BTU, LP THE INFORMATION CONTAINED IN THIS DRAWING IS THE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com... -
Page 7: Fd-11290 Specifications
120VAC, 4A 120VAC, 4A 347,000 BTU, NG THE INFORMATION CONTAINED IN THIS DRAWING IS THE THE INFORMATION CONTAINED IN THIS DRAWING IS THE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com 369,000 BTU, LP... -
Page 8: Cs-90-112 Specifications
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE LEGEND: LEGEND: WITHOUT NOTICE. WITHOUT NOTICE. 346,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS as a solid fuel appliance� 298,000 BTU, LP 120VAC, 4A 120VAC, 4A PROHIBITED... -
Page 9: Unloading & Moving
DO NOT DROP THIS OVEN ABRUPTLY. Moving a Wood Stone Fire Deck oven can present challenges to even the most experienced riggers� Make sure to secure the proper equipment and make safety your first priority� Please don’t hesitate to call the factory for technical support at 1-800-988-8103. -
Page 10: Caster Removal
Lower the jack and proceed to the next caster and repeat procedure� M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... -
Page 11: Toe Kick Installation
If the front of the oven is shipped facade ready, the Toe Kick will not be included� Pre-cut pieces of cement board will be shipped to cover the fork pockets� The pieces must be installed once the oven is in place� M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com... -
Page 12: Installation Clearances
1. The Wood Stone Fire Deck 9690, Fire Deck 11275, Fire Deck 11290, Fire Deck CS-90-112 and Fire Deck CS-96-90 ovens must have a minimum 1-inch clearance to combustibles from all sides, and 14-inch clearance to combustibles from the top (see figures below)�... -
Page 13: Clearances
It is always advisable to consult with the appropriate authority having jurisdiction before proceeding as there may be regulations regarding the suitability of various materials� Temperatures above the oven doorway can reach 200 °F� Select materials and adhesives suitable for that temperature� M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. -
Page 14: Venting
300 °F or 450 °F for units burning solid fuel� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan�... - Page 15 Check with your local code officials to see if fire suppression is required in your area� If fire suppression is required, you must vent the oven using a Type 1 hood, constructed and installed in accordance with NFPA 96� If fire suppression is required, Wood Stone recommends providing protection for the hood and duct plenum�...
-
Page 16: Hood Specifications
FD-9690, 11275, 11290 and CS-90-112 Installation and Operation Manual 9690 / 11290 / 11275 / 90-112 / 96-90 HOOD - TOP VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D. - Page 17 FD-9690, 11275, 11290 and CS-90-112 Installation and Operation Manual 9690 / 11290 / 11275 / 90-112 / 96-90 HOOD - SIDE VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D.
-
Page 18: Gas Specifications
GAS SPECIFICATIONS FD-9690, 11275, 11290 and CS-90-112 Installation and Operation Manual FACTORY SPECIFIED Valve Outlet Pressure MAXIMUM HOURLY (W.C.) BTU INPUT RATES / BURNER MANIFOLD PRESSURES Maximum Models BTU/hr Input 347,000 3.5" 4.6" 4.6" FD-9690-RFG-LR-IR or FD-11290-RFG-LR-IR 369,000 9.2" 9.5" 9.5"... - Page 19 Wood Stone recommends that the Fire Deck be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�...
-
Page 20: Electrical Connection
Electrical Grounding: This appliance must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable� M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com... -
Page 21: Controller
Celsius temperature WAIT 5 MINUTES BEFORE RELIGHTING ATTENDRE 5 MINUTES AVANT DE RÉALLUMER scales in display screens 1-800-988-8103 www.woodstone-corp.com M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com... -
Page 22: Initial Start-Up
SHOULD NOT BE ALARMED. NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not effect the performance or durability of the oven� If cracks of 1/8-inch or more in width develop, contact Wood Stone for evaluation� M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103... -
Page 23: Daily Oven Operation
GENERAL OVEN OPERATION IMPORTANT: If at any time you feel that the burners are not operating properly, turn the oven off and call WOOD STONE for service� Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve�... -
Page 24: Flame Height Control
Return to Holding Flame height after removing pizza/product from the oven. NOTE: Visually measure each suggested flame height using the Wood Stone utility peel, which is 8" tall when standing on edge in front of the flame� Then relate height to the corresponding number on the Flame Height Index Scale�... -
Page 25: Use Of Wood In The Oven
Installation and Operation Manual Fire Deck 9690, 11275, 11290, CS-90-112 and CS-96-90 models Listed for wood burning will have a “-W” in the model number. When burning wood in a Wood Stone Fire Deck equipped with radiant flame burners (“-RFG” in the model number), the fire should be located on side of the oven chamber opposite the radiant gas burner(s)�... -
Page 26: Maintenance & Thermal Cleaning
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush, always brushing away from the Radiant Burner well� For deeper cleaning, use a brass bristled brush�... -
Page 27: Troubleshooting Guide
3. Wind blowing into the oven, or other venting issue� Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our normal service hours are Mon�–Fri�, 8am–5pm Pacific time� If calling after hours, follow the recorded instructions for emergency service and a Wood Stone technician will get back to you promptly�... -
Page 28: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 29: Decorative Flame Burner
(relay) TB4-8 White Brown DIAG #: WD123 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 7/28/2014 M0041.09 OCTOBER 2017 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... -
Page 30: Electrical Diagrams
ELECTRICAL DIAGRAMS FD-9690, 11275, 11290 and CS-90-112 Installation and Operation Manual TYPE 2 CONTROLLER FD-9690, FD-11275, 11290, AND CS-90-112 - 120 VAC MODELS - RFG-LR-IR IR w/ Dual RFG Temperature Controller Control Panel Type 2 Infrared White Thermo TB4-R Couple Yellow TB4-Y TB3-2... -
Page 31: Interlock Diagram
Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored� For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp�com, or contact Wood Stone for additional information�... -
Page 32: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
