Installation and
Operation Manual
MOUNTAIN SERIES - CE
Stone Hearth Oven
Wood-Fired Models
MT. CHUCKANUT WS-MS-4-W-CE
MT. ADAMS WS-MS-5-W-CE
MT. BAKER WS-MS-6-W-CE
MT. RAINIER WS-MS-7-W-CE
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0304.02
REVISED DECEMBER 2019
Advertisement
Table of Contents
Related Manuals for Wood Stone MOUNTAIN Series
Summary of Contents for Wood Stone MOUNTAIN Series
- Page 1 Installation and Operation Manual MOUNTAIN SERIES - CE Stone Hearth Oven Wood-Fired Models MT. CHUCKANUT WS-MS-4-W-CE MT. ADAMS WS-MS-5-W-CE MT. BAKER WS-MS-6-W-CE MT. RAINIER WS-MS-7-W-CE WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com...
-
Page 2: Table Of Contents
Installation and Operation Manual TABLE OF CONTENTS Mountain Series -W � � � � � � � � � � � 3 Cautions & Warnings � � � � � � � � � � 4 Unloading & Moving the Oven � � � � 6 Installation Clearances �... -
Page 3: Mountain Series -W

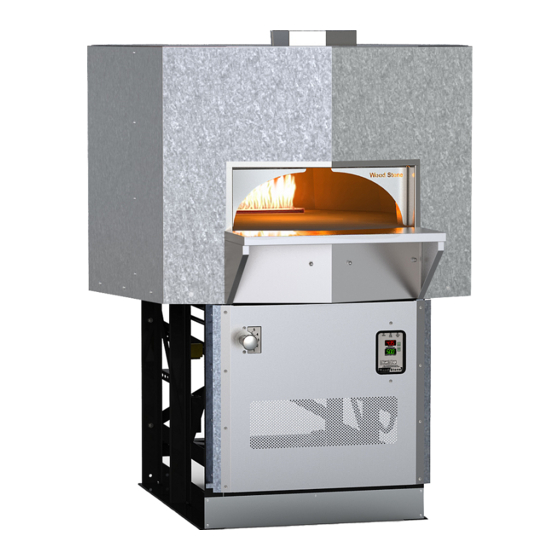

MOUNTAIN SERIES -W Wood-Fired Mountain Series CE Installation and Operation Manual INSTALLATION AND OPERATION MANUAL THE WOOD STONE MOUNTAIN SERIES ORIGINAL INSTRUCTIONS STONE HEARTH COOKING EQUIPMENT WS-MS-(4, 5, 6, 7)-W-CE WOOD-FIRED OVEN ADDITIONAL COPIES AVAILABLE UPON REQUES Shown: WS-MS-5-W-CE M0304.02 DECEMBER 2019... -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Wood-Fired Mountain Series CE Installation and Operation Manual WOOD STONE MOUNTAIN SERIES CE WOOD-FIRED OVEN INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call your distributor�... - Page 5 IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. USE SOLID WOOD FUEL ONLY DO NOT USE PRODUCTS NOT SPECIFIED FOR THIS OVEN SAVE THE INSTRUCTIONS Wood Stone’s gas-fired ovens have been tested and approved� M0304.02 DECEMBER 2019...
-
Page 6: Unloading & Moving The Oven
See figure c� DO NOT TURN THE OVEN ON ITS SIDE! Contact Wood Stone if the oven must be turned on its side for specific instructions� Moving a Wood Stone oven can present challenges to even the most experienced riggers�... -
Page 7: Installation Clearances
CLEARANCES 1. The Wood Stone Fire Deck oven must have a minimum 25 mm (1") clearance to combustibles from all sides, and 152 mm (6") clearance to combustibles from the top� If building materials will contact the oven, they must be completely non-combustible�... - Page 8 INSTALLATION CLEARANCES Wood-Fired Mountain Series CE Installation and Operation Manual THE FOLLOWING CLEARANCE INFORMATION APPLIES TO ALL WOOD STONE MOUNTAIN SERIES OVENS 152mm (6") top clearance to 152mm (6") combustible building materials. Any facade materials 152 mm (6") to either side of the doorway of the oven and above must be NON-COMBUSTIBLE.
-
Page 9: Facade Details
Installation and Operation Manual Wood Stone ovens are designed and tested to meet the requirements concerning the hygiene aspects of large kitchen appliances so as to eliminate or minimize the risk of contagion, infection, illness or injury arising from the consumption of contaminated food�... -
Page 10: Outdoor Installations
When installed outdoors, the open area beneath the oven must be enclosed to protect internal wiring and thermocouple components� You must leave an access panel to allow for service of the thermocouple� Wood Stone’s oven mounted wood box has an access panel built in� Be sure to maintain all clearances and adhere to the installation requirements included in this manual�... -
Page 11: Venting
The above statement taking precedence, Wood Stone Corporation recommends the following two venting options: 1. This Wood Stone Mountain Series oven can be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy)� The hood must be connected to a grease-rated duct system� The venting system must be designed and installed in accordance with all relevant codes pertaining to grease and smoke producing commercial cooking appliances, and vented separately�... -
Page 12: Flue Adapter, Ms-5, 6, 7
Note: MS-4 ovens come standard with a round 203mm (8") I�D� collar and do not require the flue adapter for a direct connection� MOUNTAIN SERIES MS-5, MS-6 & MS-7 OVENS: FLUE ADAPTER INSTALLATION The flue adapter unit is designed to facilitate connection to a round duct� Use the stainless steel screws and sealant provided to attach the flue adapter to the exhaust outlet on the oven if it is not already installed�... -
Page 13: Flue Adapter, Ms-4
Wood-Fired Mountain Series CE Installation and Operation Manual MOUNTAIN SERIES MS-4 OVENS: FLUE ADAPTER INSTALLATION The flue adapter unit is designed to facilitate connection to a round duct� Use the provided stainless steel screws and sealant provided to attach the flue adapter (203mm I�D� / 8" I�D�) to the exhaust outlet on the oven�... -
Page 14: Temperature Readout
IMPORTANT NOTE: If enclosing the oven in a facade, you must leave an access panel to allow for service of the thermocouple� Wood Stone’s oven mounted wood box has an access panel built in� Wood Stone does not supply an electrical power cord� The power cord or direct connection is to be supplied by others and connected by a licensed electrician�... -
Page 15: Mantle Mounting
MANTLE MOUNTING Wood-Fired Mountain Series CE Installation and Operation Manual The initial steps are the same for mounting either a stainless mantle or a bracket for a granite mantle� 1. Begin by installing the threaded studs into the clip nuts below the oven doorway (3 or 4 turns is sufficient)�... -
Page 16: Stucco Application
STUCCO APPLICATION Wood-Fired Mountain Series CE Installation and Operation Manual This figure depicts the application of stucco on a Wood Stone oven� Use no less than 25 mm (1") of stucco coating to cover all exposed metal lathing on the oven�... -
Page 17: Initial Start-Up
Never use any type of flammable liquid or fuel to start a fire in a Wood Stone oven. Doing so could cause a dangerous situation and/or damage to the oven ceramic and void the warranty. -
Page 18: Managing The Oven Fire
The fire should be ignited a couple of hours before the oven needs to be at cooking temperature� Wood Stone recommends locating the fire towards the sides of the oven (see diagram on next page)�... -
Page 19: Burning Wood Safely
The exhaust system must be inspected and cleaned per the manufacturer’s and or local code official’s recommendations� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment. -
Page 20: Maintenance
The frequency of inspection and cleaning will depend upon hours of use and type and moisture content of the wood used for fuel� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment. -
Page 21: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 22: Electrical Diagram
ELECTRICAL DIAGRAM Wood-Fired Mountain Series CE Installation and Operation Manual Solid Fuel Only CE 230 VAC Thermocouple Only 230 VAC MODELS RD - YE + Type K Thermocouple Probe WD158 Rev. 0 DIAG #: Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 7/8/2019... -
Page 23: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�... - Page 24 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0304.02 DECEMBER 2019...
