Installation and
Operation Manual

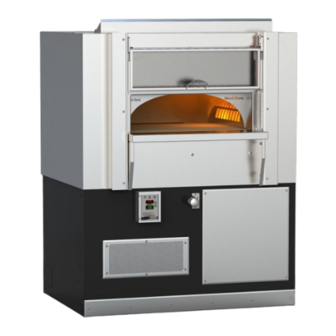

FIRE DECK SERIES
Stone Hearth Oven
Gas-Fired, Gas/Wood Combination Models
FIRE DECK 6045 WS-FD-6045
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0038.13
REVISED DECEMBER 2019
Advertisement
Table of Contents
Related Manuals for Wood Stone FIRE DECK Series
Summary of Contents for Wood Stone FIRE DECK Series
- Page 1 Installation and Operation Manual FIRE DECK SERIES Stone Hearth Oven Gas-Fired, Gas/Wood Combination Models FIRE DECK 6045 WS-FD-6045 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com DOC NO M0038.13...
-
Page 2: Table Of Contents
� � � � � � � � � � � � � � � Interlock Diagram � � � � � � � � � � � � � � � � Limited Warranty M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. -
Page 3: Fire Deck 6045
FIRE DECK 6045 Fire Deck 6045 Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE FIRE DECK STONE HEARTH COOKING EQUIPMENT WS-FD-6045-(RFG)-(L, R, LR)-(IR)-(W)-(NG, LP, HLP) MODELS GAS AND GAS/WOOD MODELS ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: Right-hand configuration Shown: FD-6045-RFG-R-IR M0038.13 DECEMBER 2019... -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Fire Deck 6045 Installation and Operation Manual WOOD STONE WS-FD-6045 FIRE DECK INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�... - Page 5 This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts. SAVE THE INSTRUCTIONS Wood Stone ovens have been tested and approved by Intertek Testing Services and conform to ANSI Z83.11, UL 2162, UL 737 and CGA 2.17;...
-
Page 6: Fd-6045 Specifications
INFORMATION CONTAINED IN THIS DRAWING IS THE THE INFORMATION CONTAINED IN THIS DRAWING IS THE 160,000 BTU, NG (RFG-IR) HOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION SOLE PROPERTY OF WOOD STONE CORPORATION 160,000 BTU, LP (RFG-IR) PROHIBITED M0038.13 DECEMBER 2019... -
Page 7: Unloading & Moving The Oven
USING A FORKLIFT. The Wood Stone Fire Deck 6045 weighs approximately 3,200 lbs� and is top-heavy� Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven any other way with a forklift may result in damage� Use extreme caution and make sure that the forks extend all the way through the pockets provided�... -
Page 8: Optional Temp Caster Install
WARNING: Failure to follow these instructions may result in severe injury or death. If you have any questions call Wood Stone at 800.988.8103. NOTE: The casters will add 3" to the total height of the oven, for a total of 81-1/4". -
Page 9: Placing & Installation
PLACING & INSTALLATION Fire Deck 6045 Installation and Operation Manual PLACING THE OVEN The oven must be installed on a flat level surface� The weight of the oven is carried by the full perimeter of the oven stand� If it is necessary to shim the oven for leveling purposes, it is critical that the shim material be metal, and that the shims are installed in such a way that the full perimeter of the stand is solidly supported�... -
Page 10: Installation Clearances
1. The Wood Stone Fire Deck oven must have a minimum 1-inch clearance to combustibles from all sides, and 24-inch clearance to combustibles from the top� If building materials will contact the oven, they must be completely non-combustible�... -
Page 11: Facade Guidelines
ABOUT FACADE MATERIALS Fire Deck Series ovens can be finished with any non-combustible decorative material that can be easily affixed to the oven surface, including tile, stone or brick� It is always advisable to consult with the appropriate authority having jurisdiction before proceeding as there may be regulations regarding the suitability of various materials�... -
Page 12: Facade Requirements
(supplied by others). approved materials used to cover the cement board can be neatly terminated at these points. 1-inch stainless steel perimeter lip M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com... -
Page 13: Venting
This oven must be vented with a Type 1 exhaust hood constructed and installed in accordance with NFPA 96� The Type 1 hood must be equipped with fire suppression per NFPA 96� The fusible link in the hood must be rated at 450 °F minimum� Wood Stone offers Listed exhaust hoods for our ovens that are pre-piped for ANSUL R-102 fire suppression�... -
Page 14: Hood Specifications
HOOD SPECIFICATIONS Fire Deck 6045 Installation and Operation Manual Wood Stone Hoods by Gaylord Specifications Required CFM: 730 CFM Static Pressure: 0.80" W.C. Duct Collar: 7.5''x 7.5'' I.D. M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. -
Page 15: Gas Specifications
GAS SPECIFICATIONS Fire Deck 6045 Installation and Operation Manual FACTORY SPECIFIED MAXIMUM HOURLY BTU INPUT RATES / BURNER MANIFOLD PRESSURES Valve Outlet Pressure (W.C.) Maximum Gas BTU/hr Model number Input 3.5" 4.25" 160,000 WS-FD-6045-RFG-(L or R)-IR-W L or R 8" 8”... - Page 16 GAS CONNECTION The Wood Stone Fire Deck 6045 is equipped with a 3/4-inch FNPT gas connection (see page 17 for exact location)� Have a licensed gas installer provide the hookup and test all fittings and pipe connections for leaks� Use approved gas leak detectors (soap solutions or equivalent) over and around the fittings and pipe connections�...
-
Page 17: Electrical Specifications
National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable� Conduit entry for Recessed electrical supply Junction box 3/4-inch FNPT gas connection M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com... -
Page 18: Controller
Celsius temperature WAIT 5 MINUTES BEFORE RELIGHTING ATTENDRE 5 MINUTES AVANT DE RÉALLUMER scales in display screens 1-800-988-8103 www.woodstone-corp.com M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com... -
Page 19: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not effect the performance or durability of the oven� If cracks of 1/8 inch or more in width develop, contact Wood Stone for evaluation� M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103... -
Page 20: Daily Oven Operation
CLEANING THE OVEN Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush, always brushing away from the Radiant Burner well� For deeper cleaning, use a brass bristled brush�... -
Page 21: Flame Height Control
Return to Holding Flame height after removing pizza/product from the oven. NOTE: Visually measure each suggested flame height using the Wood Stone utility peel, which is 8" tall when standing on edge in front of the flame� Then relate height to the corresponding number on the Flame Height Index Scale�... -
Page 22: Wood Burning
FIRE DECK MODELS LISTED FOR WOOD BURNING WILL HAVE A “-W” IN THE MODEL NUMBER. When burning wood in a Wood Stone Fire Deck, the fire should be located on the side of the oven chamber opposite the radiant gas burner� Wood may be burned at a rate not to exceed 15 lbs� per hour� Two models, WS-FD-6045-IR-W and WS-FD-6045-W, have no Radiant Burners—wood may be burned on both sides of the oven chamber simultaneously�... -
Page 23: Daily Maintenance & Thermal Cleaning
THERMAL CLEANING Gas-fired Oven: If a Wood Stone gas-fired oven is operated at low temperatures (below 450 °F), it is possible that grease from food could condense on the walls and ceiling of the oven� To remove the grease that has accumulated on the walls and ceiling of the oven, simply turn the radiant flame to its highest setting�... -
Page 24: Troubleshooting Guide
3. Wind blowing into the oven, or other venting issue� Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our normal service hours are Mon�–Fri�, 8am–5pm Pacific time� If calling after hours, follow the recorded instructions for emergency service and a Wood Stone technician will get back to you promptly�... -
Page 25: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 26: Decorative Flame Burner
Decorative Brown Brown DIAG #: WD103 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/27/2014 M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... -
Page 27: Electrical Diagrams
50-60Hz wired by others Brown DIAG #: WD064 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/28/2014 M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166... - Page 28 TB1-P 50-60Hz wired by others DIAG #: WD061 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/28/2014 M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166...
- Page 29 M0038.13 DECEMBER 2019 WOOD STONE CORPORATION 800.988.8103 info@woodstone-corp.com E-MAIL TOLL FREE 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166 require us to change specifications without notice.
-
Page 30: Interlock Diagram
Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored� For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact Wood Stone for additional information�... -
Page 31: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�... - Page 32 WOOD STONE CORPORATION Toll Free 800.988.8103 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0038.13 DECEMBER 2019...
