Installation and
Operation Manual
TRADITIONAL SERIES
Stone Hearth Oven
Gas-Fired,
European Models
TRADITIONAL SERIES
WS-CS-RND-22-(RFG)-(IR)-S-CE (TS-6)
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0274.01
REVISED SEPTEMBRA 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRADITIONAL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Wood Stone TRADITIONAL Series

Summary of Contents for Wood Stone TRADITIONAL Series

  • Page 1 Installation and Operation Manual TRADITIONAL SERIES Stone Hearth Oven Gas-Fired, European Models TRADITIONAL SERIES WS-CS-RND-22-(RFG)-(IR)-S-CE (TS-6) WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com DOC NO M0274.01 REVISED SEPTEMBRA 2019...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Traditional Series Installation and Operation Manual TABLE OF CONTENTS Traditional Series Oven.. . Cautions & Warnings..CS-RND-22 (TS-6) Specs Unloading & Moving ..Installation Clearances .. . Facade Details ..

  • Page 3: Traditional Series Oven

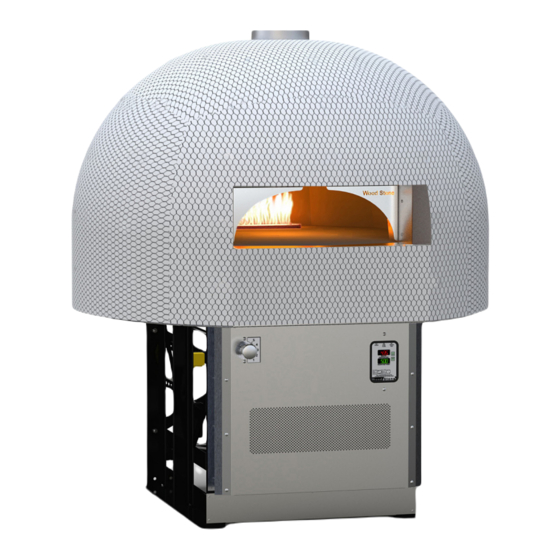

    TRADITIONAL SERIES OVEN Traditional Series CE Installation and Operation Manual INSTALLATION AND OPERATION MANUAL THE WOOD STONE TRADITIONAL SERIES TRANSLATION OF ORIGINAL INSTRUCTIONS WS-CS-RND-(22)-(RFG)-(IR)-S-CE-(NG,LP) (TS-6) STONE HEARTH COOKING EQUIPMENT CE MODELS GAS-FIRED & MODELS ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-CS-RND-15-RFG-IR-S-CE...

  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Traditional Series CE Installation and Operation Manual WOOD STONE TRADITIONAL SERIES GAS-FIRED AND GAS/WOOD COMBINATION OVEN INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual from your local distributor. For prompt responses to service/maintenance questions, call your local distributor.

  • Page 5: Cs-Rnd-22 (Ts-6) Specs

    188,000 BTU, NG (RFG-IR) THE INFORMATION CONTAINED IN THIS DRAWING IS THE THE INFORMATION CONTAINED IN THIS DRAWING IS THE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 159,000 BTU, LP (RFG-IR) SOLE PROPERTY OF WOOD STONE CORPORATION SOLE PROPERTY OF WOOD STONE CORPORATION PROHIBITED GAS INLET: 3/4"...

  • Page 6: Unloading & Moving

    See figure c. DO NOT TURN THE OVEN ON ITS SIDE! Contact Wood Stone if the oven must be turned on its side for specific instructions. Moving a Wood Stone oven can present challenges to even the most experienced riggers.

  • Page 7: Installation Clearances

    1. The Traditional Series oven is designed to accommodate field application of tile, stucco or other NON-COMBUSTIBLE finishes. The Wood Stone Traditional Series oven must have a minimum 25 mm (1") clearance to combustibles from all sides, and 152 mm (6") clearance to combustibles from the top (see INSTALLATION CLEARANCES section on next page). If building a facade that will contact the oven, use completely non-combustible materials*.
  • Page 8 INSTALLATION CLEARANCES Traditional Series CE Installation and Operation Manual THE FOLLOWING CLEARANCE INFORMATION APPLIES TO ALL WOOD STONE TRADITIONAL SERIES OVENS 152 mm (6") 152 mm (6") top clearance to combustible building materials. If enclosing the oven, any facade materials 152 mm (6") to either side of the doorway and above must be NON-COMBUSTIBLE.

  • Page 9: Facade Details

    We recommend 13 mm (1/2") or smaller tiles applied over a suitable non-combustible skim coat. Smaller tiles can more easily conform to the curved shape of the oven. Because of the unique shape of the Traditional Series oven, we recommend employing a skilled tile contractor.

  • Page 10: Utilities

    UTILITIES Traditional Series CE Installation and Operation Manual ELECTRICAL The oven is rated at 230 VAC, 1 A, 50 Hz. The rating also appears on the data plate. It is recommended that the oven be connected to its own individual branch circuit. Electrical diagrams are located on the Terminal box and also at the end of this manual.

  • Page 11: Gas Connection

    Wood Stone recommends that the oven be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible. Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies.
  • Page 12 GAS SPECIFICATIONS Traditional Series CE Installation and Operation Manual NATURAL GAS (NG) Gas Supply and Pressure TRADITIONAL SERIES MODELS EN 437 Gas Group 2ELL Inlet Pressure (mbar) 20/25 Declared Input (kW) 2ELL TS-6-RFG-CE-NG 30.8 30.8 30.8 30.8 26.3 TS-6-RFG-IR-CE-NG 55.1 55.1...

  • Page 13: Gas Specifications

    GAS SPECIFICATIONS Traditional Series CE Installation and Operation Manual PROPANE (LP) Gas Supply and Pressure TRADITIONAL SERIES MODELS EN 437 Gas Group 3B/P 3B/P Inlet Pressure (mbar) 28-30/37/50* 30/37* 30/37/50* Declared Input (kW) 3B/P 3B/P TS-6-RFG-CE-LP 27.5 33.6 33.6 27.5 TS-6-RFG-IR-CE-LP 46.6...

  • Page 14: Venting

    The above statement taking precedence, Wood Stone Corporation recommends the following two venting options: 1. This Wood Stone Traditional Series oven can be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy). The hood must be connected to a grease-rated duct system. The venting system must be designed and installed in accordance with all relevant codes pertaining to grease and smoke producing commercial cooking appliances.

  • Page 15: Front Panel Assembly

    FRONT PANEL ASSEMBLY Traditional Series CE Installation and Operation Manual STANDARD FRONT PANEL AND TOE KICK ASSEMBLY INSTRUCTIONS Flame Height Control Knob Controller Service Panel Transformer Box Contains terminal strip for incoming power supply. NOTE: Have licensed electrician make this electrical connection.

  • Page 16: Controller Functions

    CONTROLLER FUNCTIONS Traditional Series CE Installation and Operation Manual CONTROLLER FUNCTIONS TYPE 2 Hearth Heat Indicator Light RFG-IR MODELS Dome Flame Indicates that the pilot for the Indicator Light Underfloor IR burner is lit. This Power Indicator Light Indicates the pilot...

  • Page 17: Flame Height Control

    FLAME HEIGHT CONTROL Traditional Series CE Installation and Operation Manual DETERMINING THE APPROPRIATE FLAME HEIGHT For each specific configuration of oven there is a system that determines what the desired flame height will be. Each flame height corresponds to a saturated floor temperature. Several factors need to be accounted for in order to determine this relationship for each oven.

  • Page 18: Gas Oven Maintenance

    OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use. Use a natural fiber brush—always brushing away from the radiant burner well. For deeper cleaning, use a brass bristled brush.

  • Page 19: Rfg-Ir Initial Start-Up

    INITIAL RFG-IR OVEN START-UP PROCEDURE Wood Stone recommends completing this start-up procedure before burning any wood. IMPORTANT: If at any time you feel that either or both of the burners are not operating properly, turn the oven off and call for service.

  • Page 20: Rfg-Ir Operation

    RFG-IR OPERATION Traditional Series CE Installation and Operation Manual DAILY OPERATION FOR RFG-IR MODELS IMPORTANT: If at any time you feel that the burner is not operating properly, TURN THE OVEN OFF and call for service. Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve.

  • Page 21: Operational Sequence

    OPERATIONAL SEQUENCE Traditional Series CE Installation and Operation Manual RFG-IR CE OVEN BURNER OPERATION SEQUENCE Power ON ICS2 Module (Radiant burner) powers Igniter and opens Pilot valve. Pilot lights. Pilot does not light, ICS2 Module times out. ICS2 senses Pilot flame, Igniter OFF,...

  • Page 22: Troubleshooting Guide

    Underfloor IR burner did not fire when the floor temperature dropped below Hearth Set Point. the Hearth Set Point. Contact Wood Stone for assistance. “Chec” display on Controller Underfloor IR burner did not fire when the floor temperature dropped below the Hearth Set Point.

  • Page 23: Rfg-Ir Electrical Diagram

    RFG-IR ELECTRICAL DIAGRAM Traditional Series CE Installation and Operation Manual RFG-IR CE (TYPE 2 CONTROLLER) M0274.01 SEPTEMBRA 2019...

  • Page 24: Limited Warranty

    In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
