Wood Stone WS-FD-9690 Installation And Operation Manual

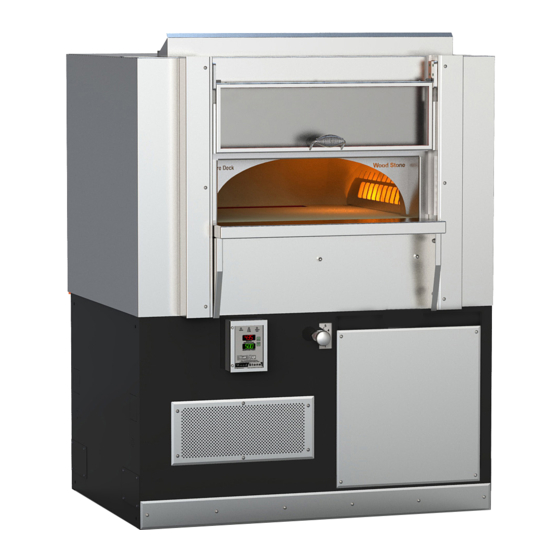

Fire deck series stone hearth oven gas and gas / wood-fired models
Hide thumbs Also See for WS-FD-9690:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
FIRE DECK SERIES
Stone Hearth Oven
Gas and Gas / Wood-Fired Models
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
Installation and
Operation Manual
FIRE DECK
WS-FD-9690
WS-FD-11275
WS-FD-11290
WS-CS-90-112
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
woodstone-corp.com
Revised June 2015
Doc no: M0041.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-FD-9690 and is the answer not in the manual?

Questions and answers

Related Manuals for Wood Stone WS-FD-9690

Summary of Contents for Wood Stone WS-FD-9690

  • Page 1 FIRE DECK FIRE DECK SERIES WS-FD-9690 Stone Hearth Oven WS-FD-11275 WS-FD-11290 Gas and Gas / Wood-Fired Models WS-CS-90-112 wood stone corporation tf. 800.988.8103 woodstone-corp.com 1801 w. bakerview rd. t. 360.650.1111 Revised June 2015 bellingham, wa 98226 usa f. 360.650.1166 Doc no: M0041.04...

  • Page 2: Table Of Contents

    � � � � � � � � � � � � � � � � � � � INTERLOCK DIAGRAM � � � � � � � � � � � � � � � � � � � � LIMITED WARRANTY wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.

  • Page 3: Fire Deck

    FIRE DECK FD-9690, 11275, 11290 & CS-90-112 Fire Deck Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE FIRE DECK STONE HEARTH COOKING EQUIPMENT WS-FD-9690-(RFG)-IR-(W), WS-FD-11275-(RFG)-IR-(W), WS-FD-11290-(RFG)-IR-(W) AND WS-CS-90-112-(RFG)-IR-(W) (BAGEL OVEN) MODELS GAS AND GAS / WOOD-FIRED MODELS...

  • Page 4: Cautions & Warnings

    Contact your local building or fire officials about restrictions and installation inspection in your area. Wood Stone’s Fire Deck Gas-Fired ovens have been tested and approved by Intertek Testing Services, and are ETL Listed to ANSI Z83.11b - 2009, CSA 1.8b-2009, UL Subject 2162, ULC-S627-00, UL 737, and to NSF/ANSI Standard 4.

  • Page 5: Fd-9690 Specifications

    THE INFORMATION CONTAINED IN THIS DRAWING IS THE info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. FD-9690, FD-11275, FD-11290 and WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS SOLE PROPERTY OF WOOD STONE CORPORATION 369,000 BTU, LP SOLE PROPERTY OF WOOD STONE CORPORATION CS-90-112, Revised June 2015.

  • Page 6: Fd-11275 Specifications

    THE INFORMATION CONTAINED IN THIS DRAWING IS THE E INFORMATION CONTAINED IN THIS DRAWING IS THE 295,000 BTU, NG HOUT THE WRITTEN PERMISSION OF WOOD STONE IS info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. FD-9690, FD-11275, FD-11290 and SOLE PROPERTY OF WOOD STONE CORPORATION...

  • Page 7: Fd-11290 Specifications

    FD-9690, FD-11275, FD-11290 and 347,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS ANY REPRODUCTION OR USE IN PART OR AS A WHOLE ANY REPRODUCTION OR USE IN PART OR AS A WHOLE GAS INLET: 1"...

  • Page 8: Cs-90-112 Specifications

    ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT NOTICE. WITHOUT NOTICE. wood stone corporation tf. 800.988.8103 346,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 120VAC, 4A 120VAC, 4A 298,000 BTU, LP 1801 w. bakerview rd. t. 360.650.1111...

  • Page 9: Unloading And Moving

    DO NOT ATTEMPT TO USE A LEVER OF ANY TYPE TO RAISE THIS OVEN. Moving a Wood Stone Fire Deck oven can present challenges to even the most experienced riggers� Make sure to secure the proper equipment and make safety your first priority� Please don’t hesitate to call the factory for technical support at 1-800-988-8103�...

  • Page 10: Caster Removal

    Rotate the caster in the direction of the fork legs to remove from oven, then lower the jack and proceed to the next caster and repeat procedure� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.

  • Page 11: Toe Kick Installation

    Pre-cut blocks of cement board or other facade material will be shipped instead of the fork pocket covers� The blocks must be inserted into the fork pockets before the oven facade is put in place� wood stone corporation tf. 800.988.8103 1801 w.

  • Page 12: Installation Clearances

    1. The Wood Stone Fire Deck 9690, Fire Deck 11275, Fire Deck 11290 and Fire Deck CS-90-112 ovens must have a minimum 1-inch clearance to combustibles from all sides, and 14-inch clearance to combustibles from the top (see figures below)�...
  • Page 13 Area which MUST left UNOBSTRUCTED to allow proper intake ventilation for the gas burners� Areas which MUST be left open for normal operation of critical oven controls (oven Controller and gas throttle valves)� wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f.

  • Page 14: Oven Venting

    300 °F or 450 °F for units burning solid fuel� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan�...
  • Page 15 Check with your local code officials to see if fire suppression is required in your area� If fire suppression is required, you must vent the oven using a Type 1 hood, constructed and installed in accordance with NFPA 96� If fire suppression is required, Wood Stone recommends providing protection for the hood and duct plenum�...

  • Page 16: Hood Specifications

    FD-9690, 11275, 11290 & CS-90-112 Fire Deck Installation and Operation Manual 9690 / 11290 / 11275 / 90-112 HOOD - TOP VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D.
  • Page 17 FD-9690, 11275, 11290 & CS-90-112 Fire Deck Installation and Operation Manual 9690 / 11290 / 11275 / 90-112 HOOD - SIDE VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D.

  • Page 18: Gas Specification

    Wood Stone recommends that the Fire Deck be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�...

  • Page 19: Gas Connection

    GAS CONNECTION FD-9690, 11275, 11290 & CS-90-112 Fire Deck Installation and Operation Manual Valve Outlet Pressure (W.C.) Maximum Models BTU/hr Input 347,000 3�5" 4�6" 4�6" WS-FD-9690-RFG-LR-IR or WS-FD-11290-RFG-LR-IR 369,000 9�2" 9�5" 9�5" 315,000 3�5" 4�6" 4�6" WS-FD-11275-RFG-LR-IR 310,000 9" 9�5"...

  • Page 20: Electrical Connection

    Electrical Grounding: This appliance must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable� wood stone corporation tf. 800.988.8103 1801 w.

  • Page 21: Controller

    Celsius temperature WAIT 5 MINUTES BEFORE RELIGHTING ATTENDRE 5 MINUTES AVANT DE RÉALLUMER scales in display screens 1-800-988-8103 www.woodstone-corp.com wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...

  • Page 22: Initial Start-Up

    SHOULD NOT BE ALARMED. NOTE: Small “crazing” cracks will occur with normal heating and cooling� They will not effect the performance or durability of the oven� If cracks of 1/8-inch or more in width develop, contact Wood Stone for evaluation� wood stone corporation tf.

  • Page 23: Daily Oven Operation

    GENERAL OVEN OPERATION IMPORTANT: If at any time you feel that the burners are not operating properly, turn the oven off and call WOOD STONE for service� Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve�...

  • Page 24: Flame Height Control

    Return to Holding Flame height after removing pizza/product from the oven. NOTE: Visually measure each suggested flame height using the Wood Stone utility peel, which is 8" tall when standing on edge in front of the flame� Then relate height to the corresponding number on the Flame Height Index Scale�...

  • Page 25: Use Of Wood In The Oven

    Fire Deck 9690, 11275, 11290 amd CS-90-112 models Listed for wood burning will have a “-W” in the model number. When burning wood in a Wood Stone Fire Deck equipped with radiant flame burners (“-RFG” in the model number), the fire should be located on side of the oven chamber opposite the radiant gas burner(s)�...

  • Page 26: Daily Maintenance

    OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush, always brushing away from the Radiant Burner well� For deeper cleaning, use a brass bristled brush�...

  • Page 27: Periodic Thermal Cleaning

    Wood Stone ovens are typically operated at temperatures which preclude the need for cleaning of the interior walls and ceiling (the dome) of the oven� However, if a Wood Stone gas-fired oven is operated at low temperatures (below 450 °F), it is possible that grease from food could condense on the walls and ceiling of the oven�...

  • Page 28: Fuelwood Facts

    Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &...

  • Page 29: Decorative Flame Burner

    Brown DIAG #: WD123 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 7/28/2014 wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...

  • Page 30: Electrical Diagrams

    Orange DIAG #: WD079 Rev. 0 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 3/27/2014 wood stone corporation tf. 800.988.8103 1801 w. bakerview rd. t. 360.650.1111 bellingham, wa 98226 usa f. 360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...

  • Page 31: Interlock Diagram

    For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone- corp�com, or contact Wood Stone for additional information�...

  • Page 32: Limited Warranty

    LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
