3onedata IES615-2D Series User Manual

IES615-2D Series
Industrial Ethernet Switch
User Manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com

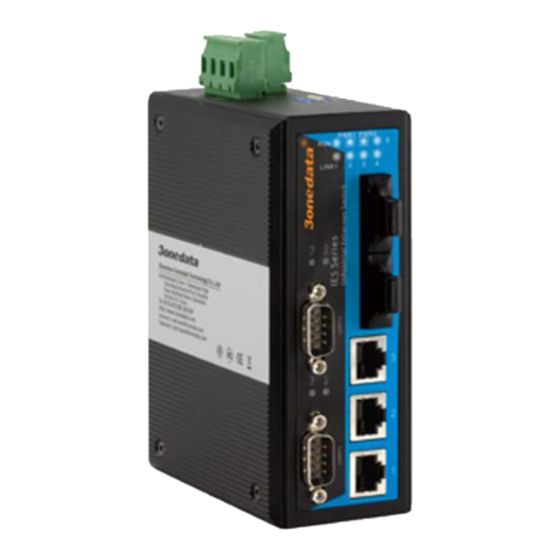

Summarize
IES615-2D series is an integrated serial server function of the
managed industrial Ethernet switches. The industrial Ethernet
switch consists of 5 Fast Ethernet ports and 2 serial ports (RS-232
or RS-485/422). Support Fast Ethernet copper ports and optical
TM
fiber port option. It adopted SW-Ring
(Recovery time<20ms), users can set the redundant easily to
increase network reliability, furthermore. It adopted no fan, low
power consumption design, IP30, corrugate high strength iron
shell, the performance is more steadily. It accorded with CE, FCC
standard and industrial grade design, DIN rail installation and
wide operating temperature (-40~75 ), it can satisfied some
kinds of industrial environment, it can provide reliable and
quickly solution for your Ethernet device.
Packing list
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch 1
Documentation and software CD
User manual 1
DIN-Rail mounting kit 1
Warranty card 1
Features
IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1D/W
TM
Support SW-Ring redundant network patent technology
(Faulty recovery time<20ms)
Support 2 port RS-232 or RS-485/RS-422 serial device
server
Support based on socket application access
Support TCP Sever, TCP Client and UDP based mode; TCP
Sever and UDP advanced mode
Support RS-485 power and signal isolation AC2500V
Support RSTP, IGMP, port trunking and port mirroring
- 1 -
Support Web, SNMP management
Support 2K MAC address table
Support 2 power supply input and 1 relay alarm output
Support QOS, 802.1Q VLAN
High strength iron shell, IP30 protection
redundant technology Industrial grade design
Redundant 24VDC power supply input (12~48VDC)
-40~75
DIN-rail, wall mounting installation

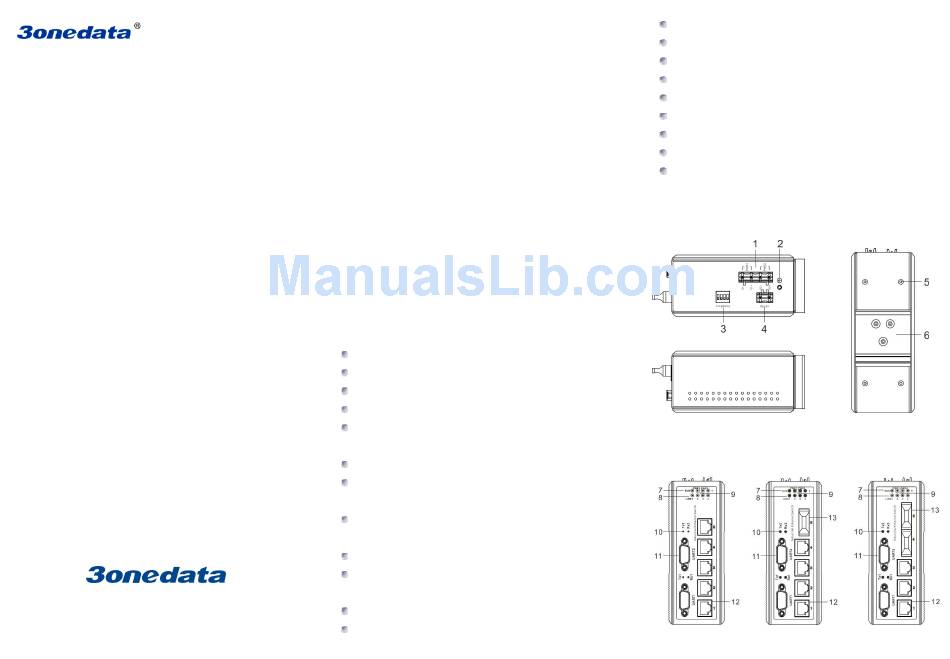

Panel layout
Vertical view and bottom view
1
Front panel view
working temperature
Rear view
