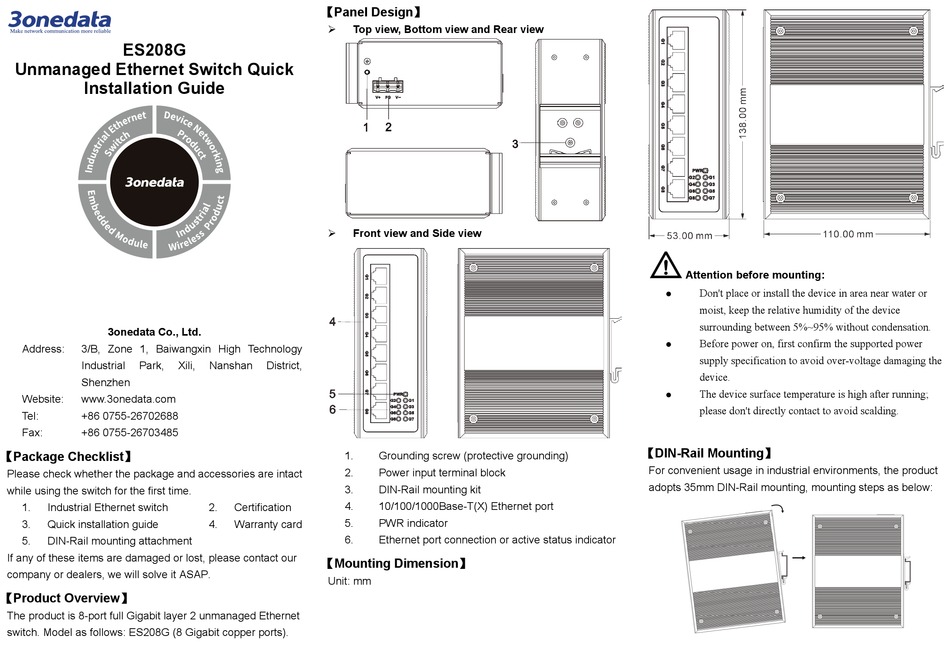

3onedata ES208G Quick Installation Manual

ES208G
Unmanaged Ethernet Switch Quick
Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

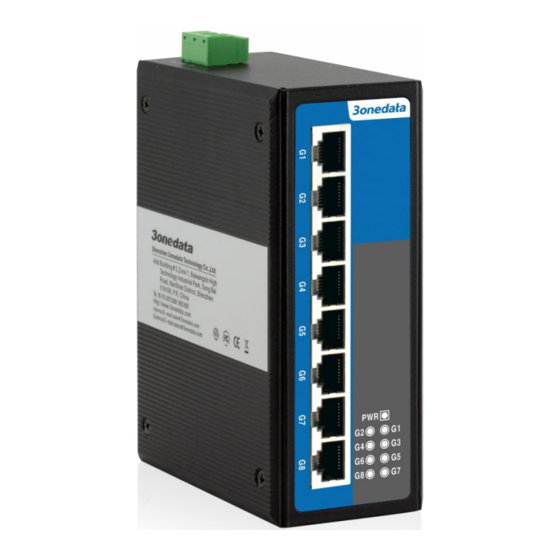

The product is 8-port full Gigabit layer 2 unmanaged Ethernet
switch. Model as follows: ES208G (8 Gigabit copper ports).
【Panel Design】
Top view, Bottom view and Rear view

Front view and Side view

Nanshan District,
1. Grounding screw (protective grounding)
2. Power input terminal block
3. DIN-Rail mounting kit
4. 10/100/1000Base-T(X) Ethernet port
2. Certification
5. PWR indicator
4. Warranty card
6. Ethernet port connection or active status indicator
【Mounting Dimension】
Unit: mm
Attention before mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
