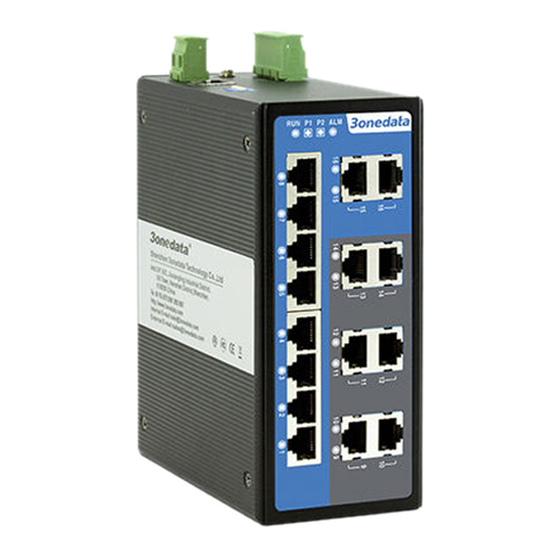

IES6116 Series
Managed Industrial Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
IES6116 series is an industrial grade, managed and
redundancy Ethernet switch. The IES6116 industrial
Ethernet switches consists of 16 Ethernet ports. The
IES6116-2F consists of 14 Ethernet ports and 2 Fiber ports.
The IES6116-4F consists of 12 Ethernet ports and 4 Fiber
ports. The IES6116-6F consists of 10 Ethernet ports and 6
Fiber ports. The IES6116-8F consists of 8 Ethernet ports
and 8 Fiber ports that provide an economical solution for
your industrial Ethernet connection. The switch support AC
power input series and DC power input series optional.
TM
SW-Ring
is designed as rapid redundancy network
arithmetic. It provided recover technology for fault of rapid
redundant network, the recovery time<20ms.
The switch accorded to CE, FCC standard and Industry
grade 4 design requirement, support redundancy power
input and 1 channel relay alarm output, and -40～75℃
working temperature, can meet all kinds of Industrial
environment requirement. It can use in power, water
conservancy, transportation area etc.
【Packing list】
The industrial Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
Documentation and software CD ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
High performance network exchange technology
Support
IEEE802.3,
IEEE802.3u,
IEEE802.1Q, IEEE802.1p, IEEE802.1D/W, IEEE802.1ad
SW-Ring ring network patent technology (Fault recovery
time<20ms)
- 1 -
Support RSTP, way exchange time<1s
Support WEB configuration
Support Port based VLAN and IEEE 802.1Q VLAN
Support absolutely and opposite priority, support
IEEE802.1P, DSCP priority
Store and Forward switching process type
Support port status display, data update.
Support MAC address auto-learning, auto-aging
Support 8K MAC address
Support 12.8Gbps backboard bandwidth
DC power input series support redundancy power supply
(12～48VDC)
AC power input series support AC power supply (100～
240VAC/DC)
Support 1 channel relay alarm output
Reliable Industrial grade design
Industrial grade 4 design, -40-75℃work temperature
No fan deign
IP40 protection grade
DIN rail mount

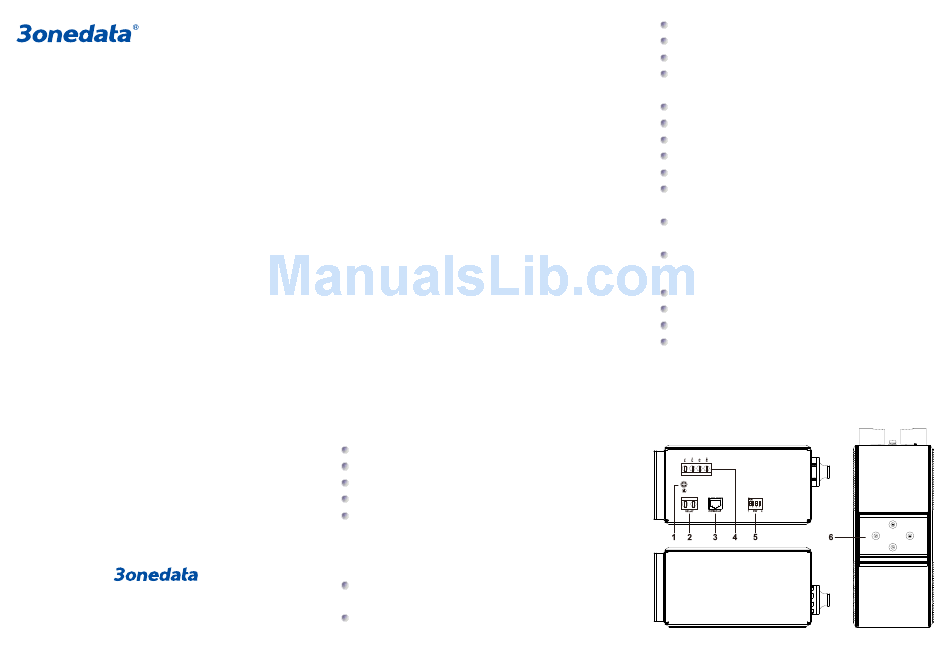

【Panel layout】
Vertical view and bottom view
IEEE802.3x,
Rear view
