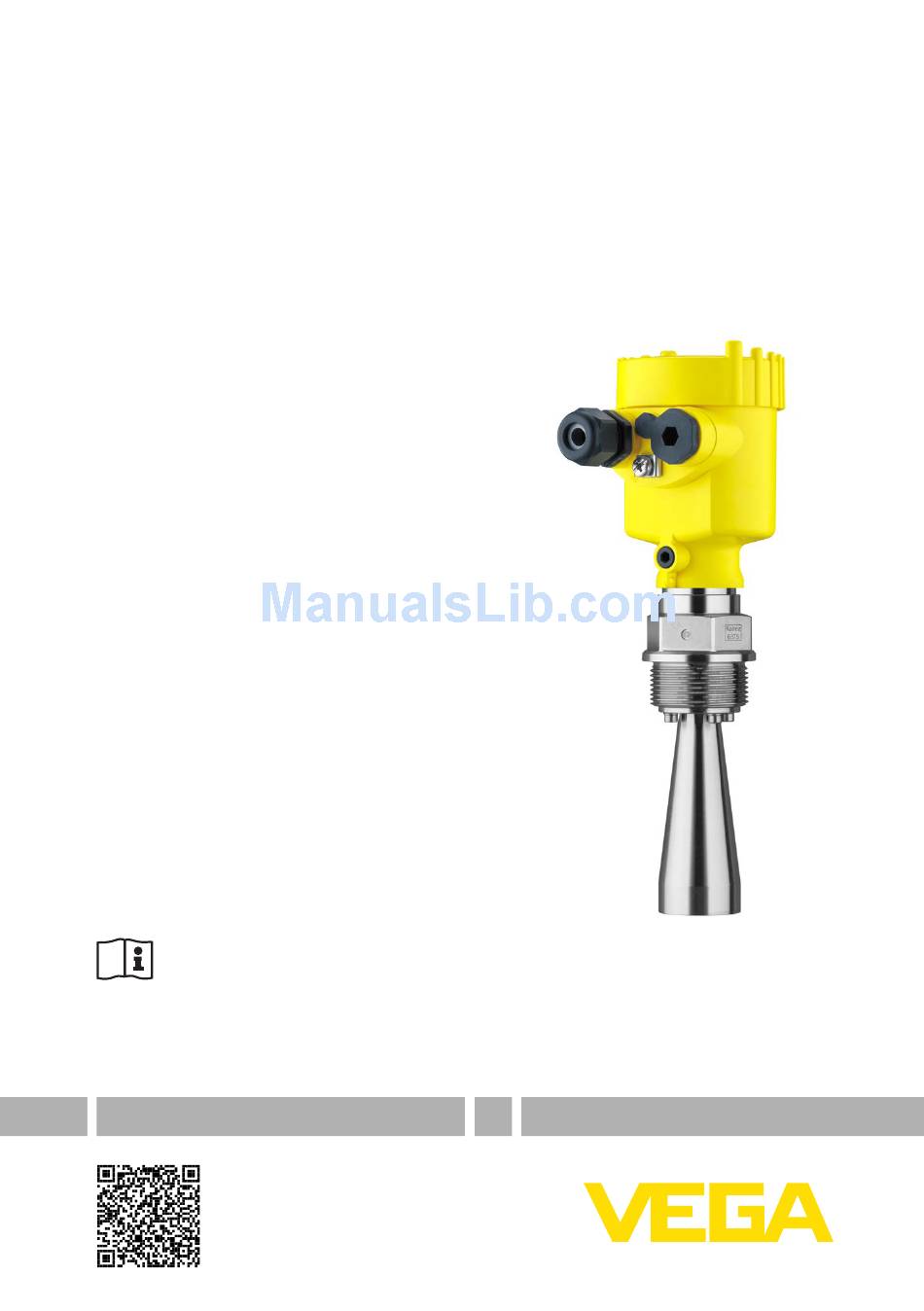

Page 1: Quick Setup Guide

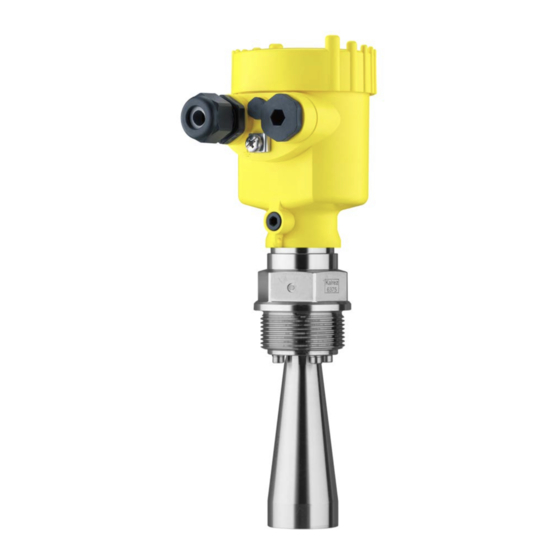

Quick setup guide Radar sensor for continuous level measurement of liquids VEGAPULS 62 4 … 20 mA/HART - two-wire Document ID: 51872... -
Page 2: Table Of Contents
"www.vega.com". Operating instructions VEGAPULS 62 - 4 … 20 mA/HART - two- wire: Document-ID 28435 Editing status of the quick setup guide: 2016-06-16 VEGAPULS 62 • 4 … 20 mA/HART - two-wire... -
Page 3: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGAPULS 62 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 4: Ce Conformity
FCC/IC conformity (only for USA/Canada) The instrument with all antenna versions is FCC/IC approved. Modifications not expressly approved by the manufacturer will lead to expiry of the operating licence according to FCC/IC. VEGAPULS 62 is in conformity with part 15 of the FCC directives and fulfills the RSS-210 regulations. Note the corresponding regulations for operation: • This device may not cause interference, and •... -
Page 5: Product Description
"VEGA Tools" and "Instrument search". You can find the serial number on the inside of the instrument as well as on the type label on the outside. Alternatively, you can access the data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •... -
Page 6: Mounting
3 Mounting Mounting Mounting preparations - Horn antenna VEGAPULS 62 is also available in versions where the antenna has a bigger diameter than the process fitting (thread, flange). The antenna must therefore be disconnected from the process fitting before mount- ing. Proceed as follows: 1. Loosen the hexagon socket screws (3) on the antenna socket with an Allen wrench (size 3) 2. Remove the antenna (4) Note: The plastic cone may not be pulled out of the antenna socket. -
Page 7: Mounting Instructions
8. Remount the parabolic antenna (4) 9. Tighten compression nut (1) with SW 41, torque max. 50 Nm 10. Tighten counter nut (2) with SW 36, torque max. 40 Nm. Note: Take note for VEGAPULS 62 with rinsing air connection that the holes in the antenna and in the process fitting correspond. This ensures a sufficient air flow (the air is led through the holes to the feed system. A rinsing of the parabolic antenna in total is not intended). Fig. 2: Dismounting, parabolic antenna... - Page 8 > 200 mm (7.87") Fig. 3: Distance of the antenna to the vessel wall/vessel ceiling 2. Note min. socket diameter depending on the socket length For further information see chapter "Mounting". VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
-
Page 9: Connecting To Power Supply
10. Connect the screen to the internal ground terminal, connect the external ground terminal to potential equalisation 11. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 12. Screw the housing lid back on The electrical connection is finished. VEGAPULS 62 • 4 … 20 mA/HART - two-wire... -
Page 10: Wiring Plan, Single Chamber Housing
Fig. 5: Wiring plan, single chamber housing Voltage supply, signal output Wiring plan, double chamber housing The following illustrations apply to the non-Ex and also to the Ex-ia version. Wiring plan I 2 C Fig. 6: Wiring plan, double chamber housing Voltage supply, signal output VEGAPULS 62 • 4 … 20 mA/HART - two-wire... -
Page 11: Set Up With The Display And Adjustment Module Plicscom
The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 7: Insert display and adjustment module Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. VEGAPULS 62 • 4 … 20 mA/HART - two-wire... -
Page 12: Setup Steps
The actual level is then calculated on the basis of these entered values. At the same time, the operating range of the sensor is limited from maximum range to the requested range. VEGAPULS 62 • 4 … 20 mA/HART - two-wire... - Page 13 False signal suppression Change now? Proceed as follows: 1. Move from the measured value display to the main menu by pushing [OK]. 2. Select the menu item "Service" with [->] and confirm with [OK]. Now the menu item "False signal suppression" is displayed. VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
-
Page 14: Menu Schematic
Display Basic adjustment ▶ Display Diagnostics Service Info Displayed value Display unit Scaling Backlight ▼ ▼ Scaled 0 % = 0.0 l Volume Switched off ▼ 100 % = 100.0 l VEGAPULS 62 • 4 … 20 mA/HART - two-wire... - Page 15 Basic adjustment Display Diagnostics Service ▶ Info Instrument type Date of manufacture Last change using PC Sensor characteristics 22. November 2010 Software version Display now? Serial number 3.80 22. November 2010 12345678 VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
-
Page 16: Supplement
Operating voltage U - illuminated display and adjustment module Ʋ Non-Ex instrument 20 … 36 V DC Ʋ EEx-ia instrument 20 … 30 V DC Ʋ EEx-d-ia instrument 20 … 36 V DC Depending on the version M12 x 1, according to DIN 43650, Harting, 7/8" FF. VEGAPULS 62 • 4 … 20 mA/HART - two-wire... - Page 17 6 Supplement Permissible residual ripple Ʋ < 100 Hz < 1 V Ʋ 100 Hz … 10 kHz < 10 mV Load resistor Ʋ Calculation )/0.022 A Ʋ Example - Non-Ex instrument with (24 V - 14 V)/0.022 A = 455 Ω = 24 V DC VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
- Page 18 Notes VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
- Page 19 Notes VEGAPULS 62 • 4 … 20 mA/HART - two-wire...
-
Page 20: Information
Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2016 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
