Vega VEGAPULS 62 Operating Instructions Manual

4...20 ma/hart, radar sensor for continuous level measurement of liquids
Hide thumbs Also See for VEGAPULS 62:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

Operating Instructions

VEGAPULS 62
4 ... 20 mA/HART

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAPULS 62

Summary of Contents for Vega VEGAPULS 62

  • Page 1: Operating Instructions

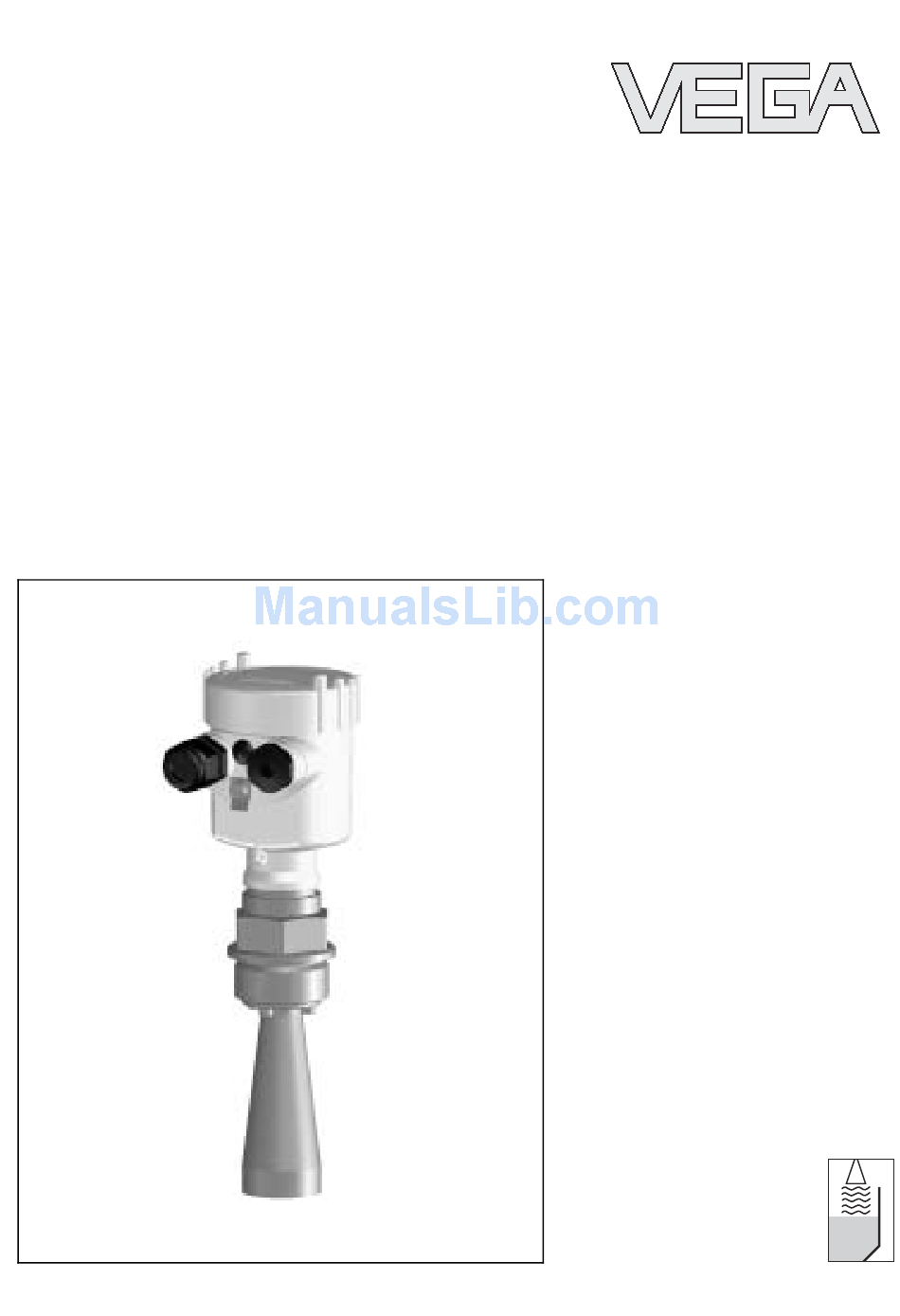

    Operating Instructions VEGAPULS 62 4 ... 20 mA/HART...

  • Page 2: Table Of Contents

    Installing the indicating and adjustment module PLICSCOM ......VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 3 10.2 Dimensions ......10.3 Industrial property rights....VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 4 "Product description". Operating instructions manuals for accessories and replacement parts Tip: To ensure reliable setup and operation of your VEGAPULS 62, VEGA offers accessories and replacement parts. The corre- sponding documentations are: Operating instructions manual "External indicating and adjustment unit VEGADIS 61"...

  • Page 5: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 6: For Your Safety

    2.2 Appropriate use VEGAPULS 62 is a sensor for continuous level measurement. Detailed information on the application range of VEGAPULS 62 is available in chapter "Product description".

  • Page 7: Compatibility Acc. To Namur Ne 53

    VEGAPULS 62 meets NAMUR recommendation NE 53. VEGA instruments are generally upward and downward compatible: Sensor software for DTM VEGAPULS 62 HART, PA or FF DTM VEGAPULS 62 for adjustment software PACTware™ adjustment module PLICSCOM for sensor software The parameter adjustment of the basic sensor functions is independent of the software version.

  • Page 8: Safety Information For Ex Areas

    2.9 Manufacturer declaration In conformity with DIN EN 60079-14/2004, para. 5.2.3, point c1, the VEGAPULS 62 radar sensor is suitable for use in zone The operator must use the instrument correctly and follow the specifications of the following documents:...

  • Page 9: Environmental Instructions

    The environment man- agement system is certified acc. to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Storage and transport" Chapter "Disposal" VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 10: Product Description

    Product description 3 Product description 3.1 Configuration The VEGAPULS 62 radar sensor is available in two electronics Versions versions: Standard electronics type PS60K Electronics with increased sensitivity type PS60S The respective version can be determined by means of the type label on the electronics.

  • Page 11: Principle Of Operation

    Housing with electronics Process fitting with horn antenna 3.2 Principle of operation VEGAPULS 62 is a radar sensor in K-band (emitting frequency Area of application approx. 26 GHz) for continuous level measurement. A version of VEGAPULS 62 is available for the respective application.

  • Page 12: Adjustment

    "Heating for indicating and adjustment module PLICSCOM". This function is generally not available for approved instru- ments. 3.3 Adjustment VEGAPULS 62 can be adjusted with four different adjustment media: the indicating and adjustment module PLICSCOM the suitable VEGA DTM in conjunction with an adjustment software acc.
  • Page 13 PE foil is also used. Dispose of the packaging material via specialised recycling companies. Storage and transport temperature see "Supplement - Storage and transport tem- perature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 14: Mounting

    Use the recommended cables (see chapter "Connecting to Moisture power supply") and tighten the cable gland. You can give your VEGAPULS 62 additional protection against moisture penetration by leading the connection cable down- ward in front of the cable entry. Rain and condensation water can thus drain off.

  • Page 15: Mounting Preparations - Horn Antenna

    4.2 Mounting preparations - Horn antenna Information: This information applies only to special versions! VEGAPULS 62 is also available in versions where the "antenna has a bigger diameter" than the process fitting (thread, flange). The antenna must therefore be disconnected from the process fitting before mounting.

  • Page 16: Mounting Preparations - Parabolic Antenna

    (thread, flange). The antenna must therefore be disconnected from the flange before mounting. Proceed as follows: 1 Clamp VEGAPULS 62 with the flange, e.g. in a bench vice The marking indicates the orientation of the polarisation plane of the radar signal.
  • Page 17 50 Nm 10 Tighten locknut (2) with SW 36, torque max. 40 Nm. Note: Make sure when using VEGAPULS 62 with purging air connection that the holes in the antenna and in the process fitting match. This ensures sufficient air flow.

  • Page 18: Mounting Information

    PULS 62 with horn antenna. The mounting instructions also apply to VEGAPULS 62 with parabolic antenna. When mounting VEGAPULS 62, keep a distance of at least Installation position 200 mm (7.9 in) to the vessel wall. If the sensor is installed in the center of concave or arched vessel tops, multiple echoes can arise.
  • Page 19 Make sure that you detect the product surface and not the inflowing product. Fig. 8: Inflowing material Socket pieces should be dimensioned such that the antenna Socket end protrudes at least 10 mm (0.4 in) out of the socket. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 20 Fig. 9: Recommended socket mounting If the reflective properties of the medium are good, you can mount VEGAPULS 62 on sockets higher than the antenna length. You will find recommended values for socket heights in the following illustration. The socket end should be smooth and burr-free, if possible also rounded.
  • Page 21 If there are agitators in the vessel, a false echo storage should Agitators be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 22 (from DK value 1.6) is possible. Surge or bypass tubes must extend all the way down to the requested min. level, as measurement is only possible within the tube. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 23 Align the sensor in such a way that the polarisation marking on the process fitting is displaced by 90° to the tube holes or the tube connection openings (see illustration: "VEGAPULS in a bypass tube"). VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 24 Marking of the polarisation direction When mounting the sensor on a bypass tube, the distance of VEGAPULS 62 to the upper tube connection should be approx. 300 mm (12 in) or more. In case of extremely rough tube inner walls, you should use an inserted tube (tube within tube) or a radar sensor with tube antenna.

  • Page 25: Connecting To Power Supply

    "Technical data" in the "Supplement". Provide a reliable separation between the supply circuit and the mains circuits acc. to DIN VDE 0106 part 101. The VEGA power supply units VEGATRENN 149AEx, VEGASTAB 690, VEGADIS 371 as well as all VEGAMETs meet this require- ment.

  • Page 26: Connection Procedure - Instrument Housing

    5 Insert the cable into the sensor through the cable entry 6 Lift the opening levers of the terminals with a screwdriver (see following illustration) 7 Insert the wire ends into the open terminals according to the wiring plan VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 27: Wiring Plans, Single Chamber Housing

    12 Screw the housing cover back on The electrical connection is finished. 5.3 Wiring plans, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex ia version. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 28 Fig. 18: Electronics and connection compartment, single chamber housing Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for power supply VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 29: Wiring Plans, Double Chamber Housing

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 30 Terminals for VEGADIS 61 Connection compartment I 2 C Fig. 22: Connection compartment, double chamber housing Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen Spring-loaded terminals for power supply VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 31: Wiring Plans, Double Chamber Housing Exd

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 32 Internal connection cable to the connection compartment Terminals for VEGADIS 61 Connection compartment Fig. 26: Connection compartment, double chamber housing Exd Spring-loaded terminals for power supply and cable screen Ground terminal for connection of the cable screen VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 33: Wiring Plans, Version Ip 66/Ip 68, 1 Bar

    (+) and bl (-) for power supply or to the processing system Screen 5.7 Switch-on phase After VEGAPULS 62 is connected to power supply or after a Switch-on phase voltage recurrence, the instrument carries out a self-test for approx. 30 seconds. The following steps are carried out: Internal check of the electronics Indication of the instrument type, the firmware version as...

  • Page 34: Setup With The Indicating And Adjustment Module Plicscom

    2 Place PLICSCOM in the desired position on the electronics (you can choose any one of four different positions - each displaced by 90°) 3 Press PLICSCOM lightly onto the electronics and turn it to the right until it snaps in. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 35 Fig. 29: Installation of PLICSCOM Note: If you intend to retrofit VEGAPULS 62 with a PLICSCOM for continuous measured value indication, a higher cover with an inspection glass is required. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 36: Adjustment System

    The functions of the individual keys are shown in the above illustration. Approx. 10 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 37: Setup Procedure

    PACTware™ or DTM. HART mode Standard Address 0 As VEGAPULS 62 is a distance measuring instrument, the Parameter adjustment distance from the sensor to the product surface is measured. To have the real product level displayed, an allocation of the measured distance to the percentage height must be made.
  • Page 38 (with liquids); dust generation, material cones and echoes from the vessel wall (with solids). To adapt the sensor to these different conditions, you should first select in this menu item "Liquid" or "Solid". VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 39 Vessel form Storage tank Information: With VEGAPULS 62 with electronics version "Increased safety", "Solid" is preset as factory setting. However, the instrument should be used preferably in liquids. In such cases, the vessel form should be set to "Storage tank" during setup.
  • Page 40 High sockets or vessel installations, such as e.g. struts or False signal suppression agitators as well as buildup and weld joints on the vessel walls cause interfering reflections which can impair the measure- VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 41 "Indicating and adjustment module PLICSCOM". The following data are read out or written with this function: Measured value presentation Adjustment Medium Standpipe inner diameter Vessel form Damping Linearization curve Sensor-TAG With standpipe versions. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 42 Current output - min. current 4 mA Current output - failure <3.6 mA Units of measurement m(d) The values of the following functions are not reset to the reset values (see chart) with "Reset": Sensor-specific basic adjustment. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 43: Menu Schematic

    Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware™. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 44 Diagnostics Service Info Displayed value Display unit Scaling Lighting ▼ Scaled Volume 0 % = 0.0 m³ Switched off m³ 100 % = 100 m³ Diagnostics Basic adjustment Display ▶ Diagnostics Service Info VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 45 Basic adjustment Display Diagnostics Service ▶ Info Device type Date of manufacture Last change using PC Sensor characteristics VEGAPULS 6x 14. December 2005 Software version Display now? Serial number 3.30 14. December 2005 12345678 VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 46: Saving The Parameter Adjustment Data

    They are hence available for multiple use or service purposes. If VEGAPULS 62 is equipped with an indicating and adjust- ment module PLICSCOM, the most important data can be read out of the sensor into PLICSCOM. The procedure is described in the operating instructions manual "Indicating and adjustment...

  • Page 47: Setup With Pactware™ And Other Adjustment Programs

    Fig. 31: PC connected directly to the sensor RS232 connection VEGAPULS 62 I²C adapter cable for VEGACONNECT 3 Necessary components: VEGAPULS 62 PC with PACTware™ and suitable VEGA-DTM VEGACONNECT 3 with I²C adapter cable (article no. 2.27323) Power supply unit VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 48: Parameter Adjustment With Pactware

    With power supply units with integrated HART resistance (internal resistance approx. 250 Ohm), an additional external resistance is not necessary. This applies, e.g. to the VEGA instruments VEGATRENN 149A, VEGADIS 371, VEGAMET 381. Also standard Ex separators are most of the time equipped with a sufficiently high current limitation resistor.

  • Page 49: Parameter Adjustment With Ams™ And Pdm

    All currently available VEGA-DTMs are provided in the DTM Collection on CD and can be obtained from the responsible VEGA agency for a token fee. This CD includes also the up-to- date PACTware™ version. The basic version of this DTM Collection incl.

  • Page 50: Maintenance And Fault Rectification

    Maintenance and fault rectification 8 Maintenance and fault rectification 8.1 Maintenance When used as directed in normal operation, VEGAPULS 62 is completely maintenance-free. 8.2 Fault rectification VEGAPULS 62 offers maximum reliability. Nevertheless faults Causes of malfunction can occur during operation. These may be caused by the following, e.g.:...

  • Page 51: Exchange Of The Electronics Module

    E041, E042, E043 Hardware error, electronics defective à Exchange instrument or return it for repair 8.3 Exchange of the electronics module If the electronics module is defective, it can be replaced by the user. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 52: Instrument Repair

    4 … 20 mA/HART 62, 63 - 4 … 20mA/HART: PS-E.60KHX (X = without approvals) PS-E.60KHA (A = approvals CA, DA, EA acc. to VEGA product list) PS-E.60KHD (D = approvals XM, CM, CK, CI, DM, DK, DI, EX, GX, UX, UF acc. to VEGA product list) PS-E.60KHE (E = approvals CX, DX acc.
  • Page 53 Maintenance and fault rectification www.vega.com under: "Services – Downloads – Forms and Certificates – Repair form". By doing this you help us carry out the repair quickly and without having to call back for needed information. Print and fill out one form per instrument...

  • Page 54: Dismounting

    Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see "Technical data" If you cannot dispose of the instrument properly, please contact us about disposal methods or return. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 55: Supplement

    2.8 … 3.6 kg (6.2 … 13.7 lbs), depending on thread size and housing - Process fitting - Flange 5.0 … 16.2 kg (11 … 35.7 lbs), depending on the flange size and housing VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 56 Reference conditions acc. to DIN EN 61298-1 - Temperature +18 … +30°C (+64 … +86°F) - Relative humidity 45 … 75 % - Atmospheric pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psi) VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 57 30 m -3 mm -10 mm Fig. 33: Accuracy VEGAPULS 62 with horn antenna Relating to the nominal range, incl. hysteresis and repeatability, determined acc. to the limit point method. Time to output the correct level (with max. 10 % deviation) after a sudden level change.
  • Page 58 Supplement 30 mm 15 mm 1,0 m 30 m -15 mm -30 mm Fig. 34: Accuracy VEGAPULS 62 with horn antenna and increased sensitivity Beam angle with parabolic antenna 4° Accuracy with parabolic antenna see diagram 40 mm 3 mm...
  • Page 59 -1 … 6 bar/-100 … 6000 kPa (-14.5 … 87 psi) Vessel pressure relating to DIN flange PN 16 (note nominal pressure stage of the flange and temperature derating!) ˚C Fig. 37: DIN flange PN 16 temperature derating in bar/°C VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 60 426,4psi DN200 382,9psi DN250 ˚F Fig. 40: DIN flange PN 40 temperature derating in psi/°F Vessel pressure relating to DIN flange PN 64 (note nominal pressure stage of the flange and temperature derating!) VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 61 Fig. 42: DIN flange PN 64 temperature derating in psi/°F Vessel pressure relating to ANSI flange 150 lbs (note nominal pressure stage of the flange and temperature derating!) lbs./sq.in. 2"…10" ˚C Fig. 43: ANSI flange 150 lbs temperature derating based on °C VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 62 Fig. 46: ANSI flange 300 lbs temperature derating based on °F Vessel pressure relating to ANSI flange 600 lbs (note nominal pressure stage of the flange and temperature derating!) lbs./sq.in. 2"…10" ˚C Fig. 47: ANSI flange 600 lbs temperature derating based on °C VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 63 Fig. 50: ANSI flange 900 lbs temperature derating based on °F TG small/large Vibrating resistance mechanical vibrations with 4 g and 5 … 100 Hz Tested acc. to the regulations of German Lloyd, GL directive 2 VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 64 Reflux valve - attached (with non-Ex option, with Ex in the scope of delivery) - Material 316Ti (1.4571) - Seal FKM (Viton) - for tube diameter 6 mm - opening pressure 0.5 bar (7.3 psi) - nominal pressure stage PN 250 VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 65 M20x1.5; plug M12x1 for VEGADIS 61 (option) 1x closing cap ½ NPT, 1x blind stopper ½ NPT, plug M12x1 for VEGADIS 61 (optional) Depending on the version M12x1, acc. to DIN 43650, Harting, Amphenol- Tuchel, 7/8" FF VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 66 Supply voltage with lighted indicating and adjustment module - non-Ex instrument 20 … 36 V DC - EEx ia instrument 20 … 30 V DC - EExd ia instrument 20 … 36 V DC VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 67 20 … 30 V DC - EExd ia instrument 20 … 36 V DC Permissible residual ripple - <100 Hz <1 V - 100 Hz … 10 kHz <10 mV Load see diagram VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 68 - Single channel architecture (1oo1 up to SIL2 - double channel diversitary redun- up to SIL3 dant architecture (1oo2 D) Requirement to maintain the protection is the suitable cable. Not with increased sensitivity. VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 69 CI.I-III, Div 1 (IS); CSA Cl.I-III, Div 1(IS)+Cl.I-III, Div 1 Gr.C-G (XP) Ship approvals GL, LRS, ABS, CCS, RINA Others Available or applied for, depending on the order specification. Deviating data with Ex applications: see separate safety instructions. VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 70: Dimensions

    M20x1,5/ ½ NPT Fig. 54: Housing versions in protection IP 66/IP 68, 1 bar (with integrated PLICSCOM the housing is 9 mm/0.35 in higher) Stainless steel housing Aluminium double chamber housing Aluminium housing VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 71 4" ø95 inch " ø1 " 1½" " ø1 " 2" " ø2 " 3" " ø3 " 4" Fig. 55: VEGAPULS 62 - horn antenna in threaded version Standard with temperature adapter VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 72 " ø3 " 4" Fig. 56: VEGAPULS 62 - horn antenna in threaded version with rinsing air connection Standard with temperature adapter Purging air connection G⅛A for mounting a suitable fitting Reflux valve - attached (with non-Ex option, with Ex in the scope of delivery)
  • Page 73 " ø3 " 4" Fig. 57: VEGAPULS 62 - horn antenna in threaded version with purging air connection and antenna extension Standard with temperature adapter Depending on the product properties, an antenna extension causes a re- duction of the sensitivity in the narrow range. Depending on the length, a suitable support of the antenna extensions must be provided.
  • Page 74 4" 150 lb 6" 150 lb 279,4 25,4 241,3 8xø22,4 6" 150 lb 11" 1" " 8xø " " " Fig. 58: VEGAPULS 62 - horn antenna in flange version Standard with temperature adapter VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 75 25,4 241,3 8xø22,4 6" 150 lb Fig. 59: VEGAPULS 62 - horn antenna in flange version with rinsing air connection Standard with temperature adapter Purging air connection G⅛A for mounting a suitable fitting Reflux valve - attached (with non-Ex option, with Ex in the scope of delivery)
  • Page 76 Supplement VEGAPULS 62 - parabolic antenna in threaded version 46mm ") G1½A / 1½ NPT ø 243mm (9 ") Fig. 60: VEGAPULS 62 - parabolic antenna in threaded version Standard with temperature adapter VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 77 " " 8xø " 6" 150 lb 279,4 25,4 241,3 8xø22,4 6" 150 lb 11" 1" " 8xø " Fig. 61: VEGAPULS 62 - parabolic antenna in flange version Standard with temperature adapter VEGAPULS 62 - 4 ... 20 mA/HART...

  • Page 78: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.
  • Page 79 Supplement VEGAPULS 62 - 4 ... 20 mA/HART...
  • Page 80 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2006 Technical data subject to alterations 28435-EN-060317...
