Quick setup guide

Radar sensor for continuous level
measurement of liquids
VEGAPULS 62
HART and accumulator pack
Document ID: 47110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vega VEGAPULS 62

  • Page 1: Quick Setup Guide

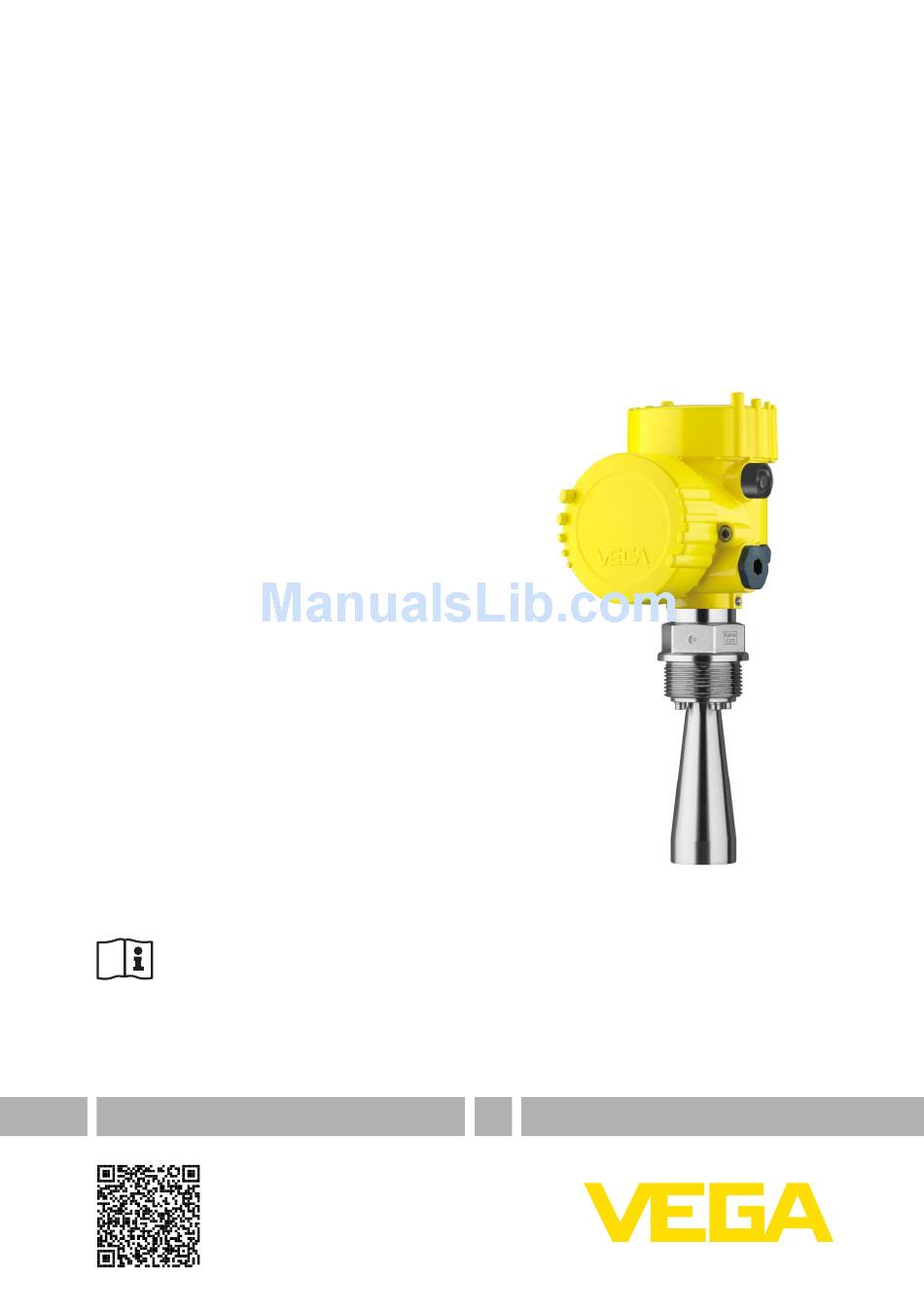

    Quick setup guide Radar sensor for continuous level measurement of liquids VEGAPULS 62 HART and accumulator pack Document ID: 47110...
  • Page 2: Table Of Contents

    You can find further information in the corresponding, comprehensive operating instructions. This manual is available on the supplied DVD or in the download area under "www.vega.com". Operating instructions VEGAPULS 62 - HART and power pack: Document-ID 40793 Editing status of the quick setup guide: 2014-01-24 VEGAPULS 62 • HART and accumulator pack...
  • Page 3: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGAPULS 62 is a sensor for continuous level measurement. Due to the integrated accumulator the instrument is particularly suitable as a portable measuring system or test sensor for special applications.
  • Page 4: Ce Conformity

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" VEGAPULS 62 • HART and accumulator pack...
  • Page 5 1 For your safety • Chapter "Disposal" VEGAPULS 62 • HART and accumulator pack...
  • Page 6: Product Description

    Delivery date (HTML) • Order-specific instrument features (HTML) • Operating instructions and quick setup guide at the time of ship- ment (PDF) • Order-specific sensor data for an electronics exchange (XML) • Test certificate (PDF) - optional Go to www.vega.com, "VEGA Tools" and "Instrument search". Enter the serial number. Alternatively, you can access the data via your smartphone: VEGAPULS 62 • HART and accumulator pack...
  • Page 7 2 Product description • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or • Enter the serial number manually in the app VEGAPULS 62 • HART and accumulator pack...
  • Page 8: Mounting

    Marking at the antenna socket Hexagon screws on the antenna socket Antenna Mounting preparations - Parabolic antenna The instrument is also available in versions where the antenna has a diameter larger than the process fitting (thread, flange). With such versions the antenna must be disconnected from the process fitting before mounting. Proceed as follows: 1. Clamp VEGAPULS 62 with the flange, e.g. in a bench vice VEGAPULS 62 • HART and accumulator pack...
  • Page 9: Mounting Instructions

    Fig. 3: Dismounting, parabolic antenna Connection piece Compression nut Locknut Parabolic antenna Mounting instructions Mounting 1. Distance from the vessel wall > 200 mm, the antenna should protrude > 10 mm into the vessel VEGAPULS 62 • HART and accumulator pack...
  • Page 10 3 Mounting > 200 mm (7.87") Fig. 4: Distance of the antenna to the vessel wall/vessel ceiling 2. Note min. socket diameter depending on the socket length For further information see chapter "Mounting". VEGAPULS 62 • HART and accumulator pack...
  • Page 11: Connecting To Power Supply

    8 = sensor is switched on every 12 hours for 3 min. • 9 = sensor is switched on every 24 hours for 3 min. The green LED characterizes the charging process: • LED flashes = Accumulator is charging • LED lights = accumulator is full, battery charger should be unplugged (accumulator life time) VEGAPULS 62 • HART and accumulator pack...
  • Page 12 4 Connecting to power supply After pressing the key or changing the mode the yellow LED shows the accumulator status for approximately 10 s as follows: • LED lights = accumulator is full • LED flashes = accumulator should be charged • LED off = accumulator is empty VEGAPULS 62 • HART and accumulator pack...
  • Page 13: Set Up With The Display And Adjustment Module

    3. Screw housing cover with inspection window tightly back on Removal is carried out in reverse order. The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 6: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGAPULS 62 • HART and accumulator pack...
  • Page 14: Parameter Adjustment

    2. In the menu item "Medium"you select the medium of your applica- tion, for example "Aqueous solution". 3. Select in the menu item "Application" the vessel, the application and the vessel form, for example, storage tank. 4. Carry out the adjustment in the menu items "Min. adjustment" and "Max. adjustment". VEGAPULS 62 • HART and accumulator pack...
  • Page 15 This is generally recommended; for using the As- set Management functions it is absolutely necessary. If possible, the curve should be saved with a low level in the vessel. With the adjustment software PACTware and the PC, the high resolu- tion echo curve can be displayed and used to recognize signal changes over the operating time. In addition, the echo curve of the setup can be also displayed in the echo curve window and compared with the actual echo curve. VEGAPULS 62 • HART and accumulator pack...
  • Page 16 5. All interfering signals in this section are detected by the sensor and stored after confirming with [OK]. Note: Check the distance to the product surface, because if an incorrect (too large) value is entered, the existing level will be saved as a false echo. The filling level would then no longer be detectable in this area. If a false signal suppression has already been created in the sensor, the following menu window appears when selecting "False signal suppression": VEGAPULS 62 • HART and accumulator pack...
  • Page 17 When selecting "Extend", the distance to the product surface of the created false signal suppression is displayed. This value can now be changed and the false signal suppression can be extended to this range. VEGAPULS 62 • HART and accumulator pack...
  • Page 18: Supplement

    0 … +45° C (+32 … +167 °F) Ʋ Accumulator operation -20 … +60° C (-4 … +140 °F) Temperature derating accumulator capacity Ʋ +25° C (+77 °F) 100 % Ʋ -10° C (+14 °F) 50 % VEGAPULS 62 • HART and accumulator pack...
  • Page 19 Notes VEGAPULS 62 • HART and accumulator pack...
  • Page 20: Information

    Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2014 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
