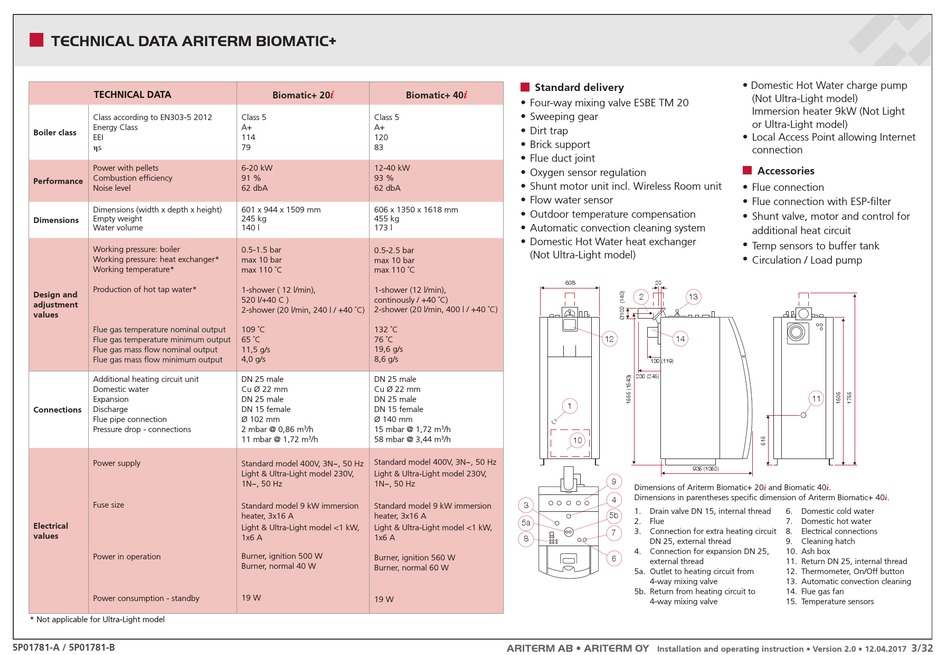

TECHNICAL DATA ARITERM BIOMATIC+

TECHNICAL DATA

Class according to EN303-5 2012
Energy Class
Boiler class
EEI
hs
Power with pellets
Combustion efficiency
Performance
Noise level
Dimensions (width x depth x height)
Empty weight
Dimensions
Water volume
Working pressure: boiler
Working pressure: heat exchanger*
Working temperature*
Production of hot tap water*
Design and
adjustment
values
Flue gas temperature nominal output
Flue gas temperature minimum output
Flue gas mass flow nominal output
Flue gas mass flow minimum output
Additional heating circuit unit
Domestic water
Expansion
Discharge
Connections
Flue pipe connection
Pressure drop - connections
Power supply
Fuse size
Electrical
values
Power in operation
Power consumption - standby
* Not applicable for Ultra-Light model
5P01781-A / 5P01781-B
i
Biomatic+ 20 Biomatic+ 40
Class 5 Class 5
A+ A+
114 120
79 83
6-20 kW 12-40 kW
91 % 93 %
62 dbA 62 dbA
601 x 944 x 1509 mm 606 x 1350 x 1618 mm
245 kg 455 kg
140 l 173 l
0.5-1.5 bar
0.5-2.5 bar
max 10 bar
max 10 bar
max 110 ˚C
max 110 ˚C
1-shower (12 l/min),
1-shower ( 12 l/min),
continously / +40 ˚C)
520 l/+40 C )
2-shower (20 l/min, 400 l / +40 ˚C)
2-shower (20 l/min, 240 l / +40 ˚C)
109 ˚C 132 ˚C
65 ˚C 76 ˚C
11,5 g/s 19,6 g/s
4,0 g/s 8,6 g/s
DN 25 male DN 25 male
Cu Ø 22 mm Cu Ø 22 mm
DN 25 male DN 25 male
DN 15 female DN 15 female
Ø 102 mm Ø 140 mm
/h 15 mbar @ 1,72 m
2 mbar @ 0,86 m 3
11 mbar @ 1,72 m 3 /h 58 mbar @ 3,44 m
Standard model 400V, 3N~, 50 Hz
Standard model 400V, 3N~, 50 Hz
Light & Ultra-Light model 230V, Light & Ultra-Light model 230V,
1N~, 50 Hz 1N~, 50 Hz
Standard model 9 kW immersion Standard model 9 kW immersion
heater, 3x16 A heater, 3x16 A
Light & Ultra-Light model <1 kW, Light & Ultra-Light model <1 kW,
1x6 A 1x6 A
Burner, ignition 500 W
Burner, ignition 560 W
Burner, normal 40 W
Burner, normal 60 W
19 W
19 W
Standard delivery
i
• Four-way mixing valve ESBE TM 20
• Sweeping gear
• Dirt trap
• Brick support
• Flue duct joint
• Oxygen sensor regulation
• Shunt motor unit incl. Wireless Room unit
• Flow water sensor
• Outdoor temperature compensation
• Automatic convection cleaning system
• Domestic Hot Water heat exchanger
(Not Ultra-Light model)
608
12
1
/h
3
10
3 /h
9
4
3
5b
5a
7
8
6
ARITERM AB • ARITERM OY
• Domestic Hot Water charge pump
(Not Ultra-Light model)
Immersion heater 9kW (Not Light
or Ultra-Light model)
• Local Access Point allowing Internet
connection
Accessories
• Flue connection
• Flue connection with ESP-filter
• Shunt valve, motor and control for
additional heat circuit
• Temp sensors to buffer tank
• Circulation / Load pump
20
2 13
14
130 (119)
230 (245)
11
935 (1350)
Dimensions of Ariterm Biomatic+ 20i and Biomatic 40i.
Dimensions in parentheses specific dimension of Ariterm Biomatic+ 40i.
1. Drain valve DN 15, internal thread 6. Domestic cold water
2. Flue 7. Domestic hot water
3. Connection for extra heating circuit 8. Electrical connections
DN 25, external thread 9. Cleaning hatch
4. Connection for expansion DN 25, 10. Ash box
external thread 11. Return DN 25, internal thread
5a. Outlet to heating circuit from 12. Thermometer, On/Off button
4-way mixing valve 13. Automatic convection cleaning
5b. Return from heating circuit to 14. Flue gas fan
4-way mixing valve 15. Temperature sensors
Installation and operating instruction • Version 2.0 • 12.04.2017
3/32
