Crestron Adagio
AMS-AIP as the Centerpiece of an Adagio System
Operations Guide – DOC. 6516B
AMS-AIP
Media System w/Advanced Image Processing

Applications

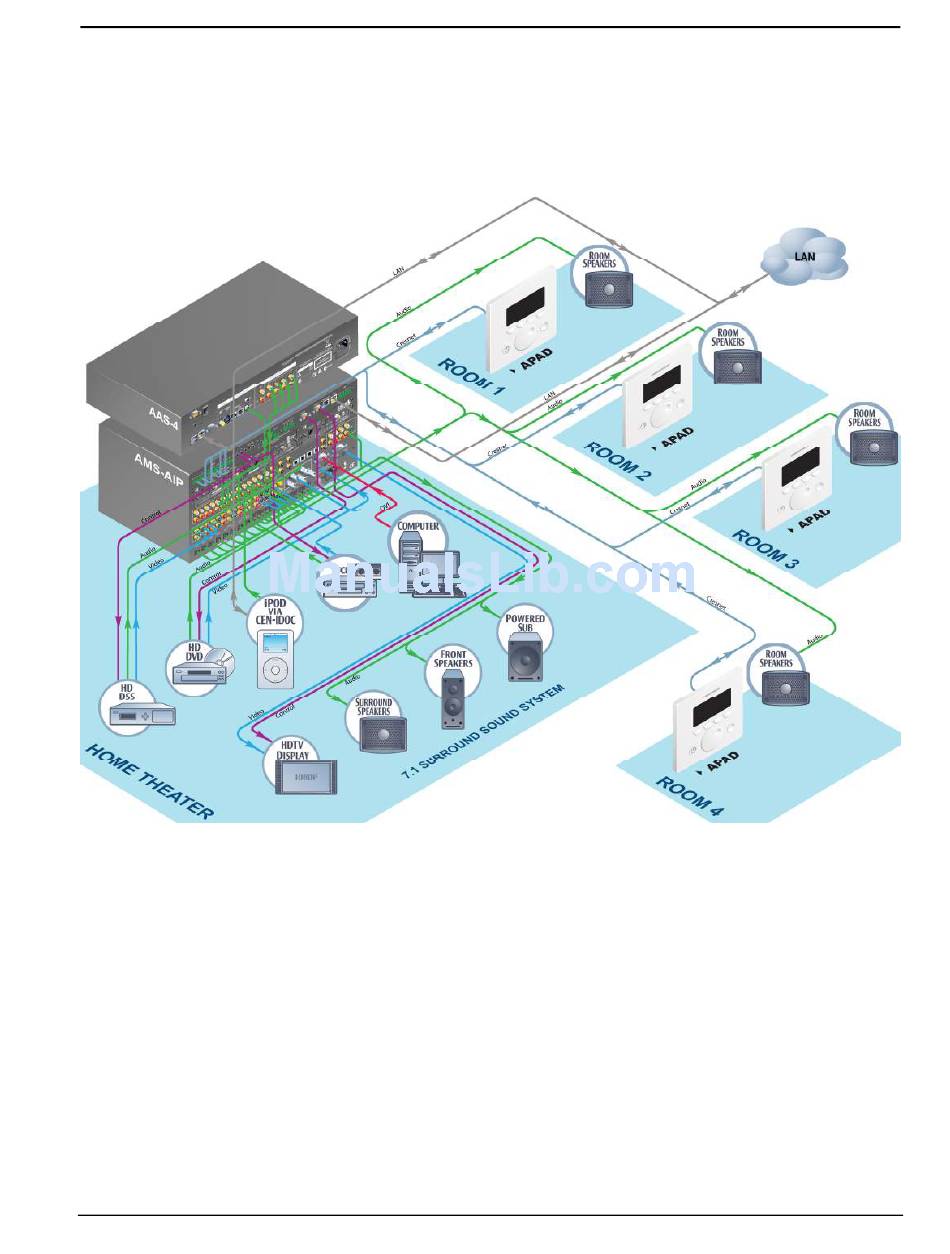

The following diagram shows an AMS-AIP as the centerpiece of an Adagio system
using out-of-the-box functionality.
Available models are:
AMS-AIP: AMS-AIP with ATC-AMFM2 Tuner Card
AMS-AIP-XM: AMS-AIP with ATC-AMFMXM Tuner Card
AMS-AIP-SR: AMS-AIP with ATC-AMFMSR Tuner Card
AMSI-AIP: AMS-AIP for International (220-240 VAC) use with
Out of the box, the AMS-AIP can support one AAS (Adagio Audio Server), one
AAE (Adagio Audio Expander) for control of up to 12 rooms (depending on
configuration), one CEN-IDOC (Interface for Apple iPod
to 12 C2N-DBF12 (12-button keypads) or APAD controllers for local control of
each zone.
With custom programming (via Adagio Composer, Crestron SystemBuilder™ , or
SIMPL™ Windows
Media System w/Advanced Image Processing: Adagio AMS-AIP • 5
ATC-AMFM2 Tuner Card
®
) and additional AAEs, the AMS-AIP can control up to 25
®
), and a combination of up
